| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE ISO |
| Model Number: | BT-B008 |
| Minimum Order Quantity: | 1set |
| Price: | 6800-20000usd |
| Packaging Details: | standard wooden case |
| Delivery Time: | 7-20days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 800 per month |
| Power: | Electronic | ||
|---|---|---|---|
| High Light: | Wet Dry Combined Salt Spray Tester,6KW Salt Spray Test Chamber,DIN50017 Salt Spray Test Chamber |
||

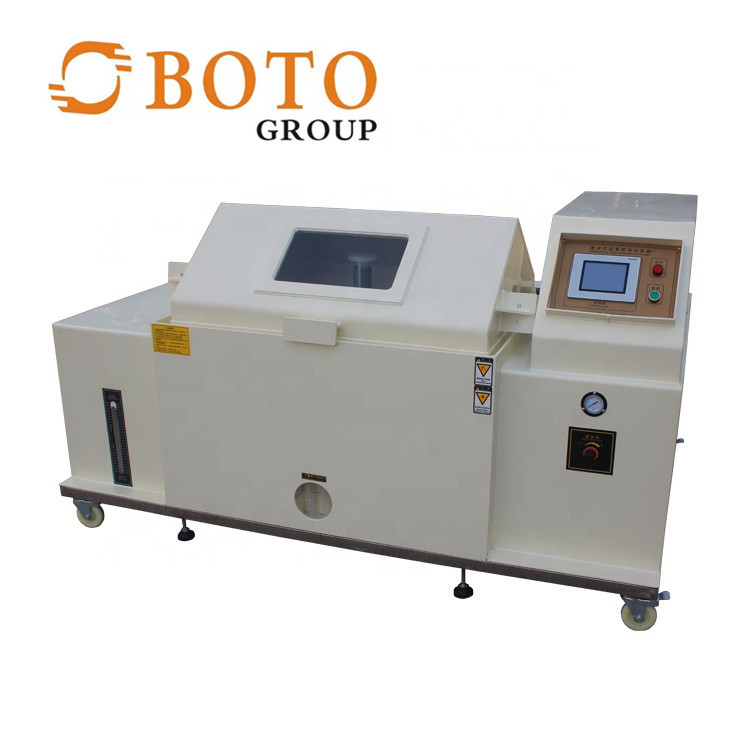

ISO9001 Wet Dry Combined Salt Spray Tester/Environment salt spray test chamber
ASTM G85-A5 Wet Dry Combined Salt Spray Tester
Meet the standards:
GB/T5170.8, GB/T10587, GJB150.11, GB/T10125, GB/T2423.17, etc.
DIN50021 DIN50017 DIN50907 ISO 11977 ISO 9227 ASTM B117
ASTM G85 automobile and other industrial specifications.
1. Experimental space: 900×600×500(W×D×H)mm, other sizes can be customized
2. Outer space: according to the actual size
3. Power supply: 380V 6KW 50HZ MAX 30A
4. Materials:
(A) imported PVC board is adopted in the laboratory, which is acid and alkali resistant.
(B) imported PVC board in the outer box, resistant to acid and alkali.
(C) the test replenishment tank is equipped with a hidden water table, which is easy to clean and not easy to break.
(D) the saturated air barrel adopts SUS#304 stainless steel high-pressure barrel with the best insulation effect.
5. according to customer test requirements, can be set the salt dry and wet composite test
Salt spray test - moisture/Wet test
(A) brine spray laboratory: NSS, CASS
| laboratory | 10℃ ~ 50 ℃ |
| saturated air bucket | 47℃ ±1℃ |
(B) moisture test:
| temperature | 40℃ ±2℃ |
| humidity | more than 93%~100% |
| saturated air bucket | 47℃ ±1℃ |
(C) drying test:
| temperature | 15℃~50℃ ±1℃ |
| humidity | over 30% |
6. Air supply system
The air pressure is 1kg/cm2, which can be adjusted in two stages. The first is the imported pressure regulating filter with the function of filtering water.
Adjust to 2-2.5kg/ cm2 roughly, the second is the imported precision pressure regulating valve, adjust to the pressure gauge 1kg/ cm2.
ASTM G85-A5 Wet Dry Combined Salt Spray Tester
7. Spray method:
1. Apply bernouldt principle to take and absorb salt water and atomize it, the atomization degree is even, without blocking crystallization, to ensure the standard of continuous test.
2. Nozzle: made of special glass nozzle, the size and Angle of spray can be adjusted.
3. Spray volume: adjustable 1.5± 0.5ml 80cm2/Hr (16-hour average volume).
4. 40L large brine storage tank, 48HR continuous spray.
WHY CHOOSE US?
Our Services
During the whole business process, we offer Consultative Selling service.
1) Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2) Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.
3) Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show production process.
After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4) Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
