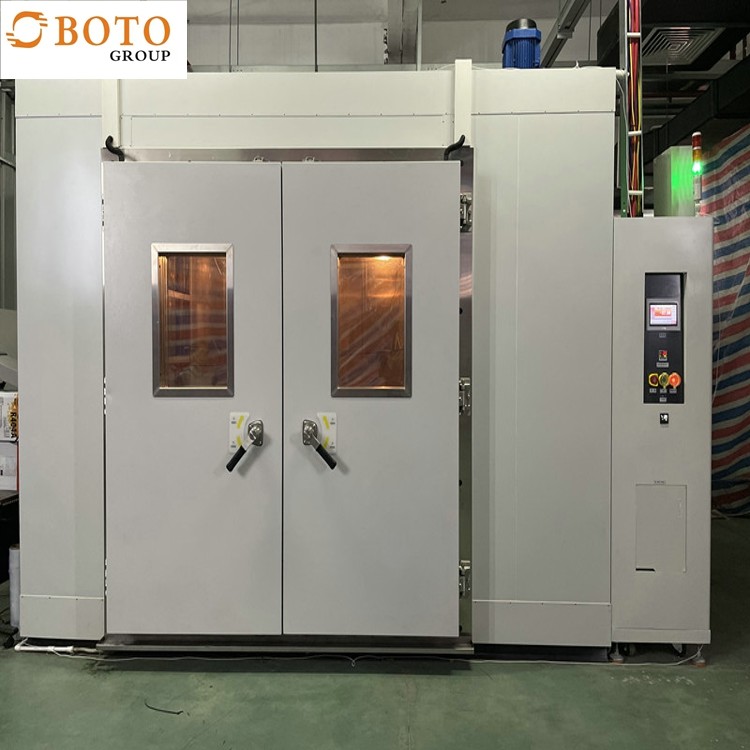

Large 9.8M3 Walk In Climatic Chamber Temperature Humidity Controlled Rooms Customized Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: B-TH9.8-D95
Minimum Order Quantity: 1set
Price: Negotiated
Packaging Details: wooden case
Delivery Time: 15-30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Set/Sets per Month
Temp Range: +65℃~+120℃ Humidity Fluctuation: 20%~95%R.H
Temperature Deviation: ±2℃ Pull Down Time: 20℃~-55℃,-40℃,-30℃,-20℃,-10℃ Within 120 Or 90 Or 60 Minutes.
External Dimension: 595*235*225CM Internal Dimension: 480*210*430CM
Insulation Material: Stainless Steel 304 Exterior Meterial: Model Steel
Insulation Meterial: Rigid Polyruethane Foam +glass Fibre Options: RS-232C, Recorder, Special Test Hole, Special Test Stand, Add Shelf Partition
Floor Bearing Load: 500Kg/m3 Safety Devices: No Welding Wire Switch, Compressor Overheating And Over Current Protection, Over Temperature Protection, Blower Overload Protection, Dry Heating Machine Protector,low Water Protection, Fault Warning System.
Refrigeration System: 1. Air Cooled (Water Cooled Type Is Option). 2. Cascade Type, Hermetic/semitight Compressor,CFC Free Refrigerant Standard Accessories: One Test Hole(diam5cm), Two Sets Of Test Racks, Four Moving Wheels, 2 Meters Of Power Cord, Communication Interface.
Power: AC380V±10% 50HZ 3 Phase 4 Wires+ground Wires Controller: Color LCD Screen In English/Chinese, Programing,communicating Function
High Light:

SS304 Walk In Climatic Chamber

,

LCD Screen Environmental Test Chambers

,

Cfc Free Refrigerant Climatic Chamber

Walk in climatic chamber temperature humidity controlled rooms big steam chamber customized climate chamber



Large 9.8M3 Walk In Climatic Chamber Temperature Humidity Controlled Rooms Customized  Chamber 0



Appication

paper testing instrument/auto testing machine/plastic testing machine/compression testing machine/leather testing instrument/wood testing instrument/strength testing machine/tesile testing machine/hardness tester/textile testing instrument/process testing machine/glass testing instrument/process testing machine/glass testing instrument/abrasion tester/impact testing machine/vibration testing machine/drop tester/cement testing machine/torsion tester/bending testing machine/torsion tester/bending testing machine/balancing machine/deformation testing machine/universal testing machine

Large 9.8M3 Walk In Climatic Chamber Temperature Humidity Controlled Rooms Customized  Chamber 1



Product Description

Walk-in constant Temperature and humidity laboratory for industry large parts, semi-finish product,finish products temperature and humidity environment testing. Such as computer terminal, car components.constant temperature and humidity room is composed of control panel, switchboard, hydrating panel, fan, heater, humidifier, refrigerator.



Uses

This equipment mainly used for create and keep temperature humidity constant space, completely automatic control refrigeration, heating, dehumidify, humidification, supplementary humidified water, The equipment can be added (optional)air exchange function, operator can long term work in it when exist poor volatile gas.Suitable for electrical, electronic, instrument and other products, parts and components salt spray test chamber and material compatibility test of storage transport using under high low temperature alternating,humid and hot environment.



Specifications
Model BTPW-4 BTPW-6 BTPW-8 BTPW-13 BTPW-17 BTPW-21
System Balanced temperature & humidity control system
Temp.Range
R.T-65℃~+120℃
Humidity Fluctuation 20%~95%R.H
Temperature Deviation ±0.5℃
Humidity deviation ±2.5%R.H
Heat Up Time 20°C~80°C 60minutes
Pull Down Time 20℃~-55℃,-40℃,-30℃,-20℃,-10℃ within 120 or 90 or 60 minutes.
Internal dimension 480*210*430CM
External dimension 595*235*225CM
Insulation material Stainless steel 304
Exterior meterial Model steel
Insulation meterial Rigid polyruethane foam +glass fibre
Floor bearing load 500Kg/m3
Refrigeration system 1. Air cooled (Water cooled type is option).
2. Cascade type, hermetic/semitight compressor,CFC free refrigerant
Controller Color LCD screen in English/Chinese, programing,communicating function
Safety devices No welding wire switch, compressor overheating and over current protection, over temperature protection, blower overload protection, dry heating machine protector,low water protection, fault warning system.
Standard accessories one test hole(diam5cm), two sets of test racks, four moving wheels, 2 meters of power cord, communication interface.
Options RS-232C, recorder, special test hole, special test stand, add shelf partition
Power AC380V±10% 50HZ 3 phase 4 wires+ground wires



With advanced design style and high-end technical concept, we will create environmental testing equipment with beautiful appearance, outstanding performance, energy saving of 25% and life expectancy of over 15 years. The core components are imported from France Schneider Electronic Materials and Taiwan Yangming. The products have successfully passed the national ISO9001 quality certification, and dozens of series of nearly 100 kinds of products and non-standard products can be selected. Compared with other similar brands, the quality, performance and price are the leading advantages. At present, the environmental test equipment of the factory is testing and achieving good sales performance at home and abroad.



FAQ

Q1: How can i get a quotation?

A1: Kindly provide us your details request (inner chamber size, temperature range, humidity range, power supply, product, etc.), leave us an inquiry or email and we will response promptly!

Q2: What's your temperature & humidity range?
A1: Our standards temperature range is -70℃~+180℃, 20%~98%RH.
We also can do Ultra low temperature to -190℃ .

Q3: What's your rate of heating & cooling?
A3: Our standards rate is average 3℃/min for heating, 2℃/min for cooling.
3℃/min,5℃/min,8℃/min,10℃/min,15℃/min linear or non-linear speed is available for us.



Q4: What's your warranty?
A4: 12 Months (Noted: free spares parts can be offered during warranty period, exclude consumables and man-made damages), life-time technical service

Large 9.8M3 Walk In Climatic Chamber Temperature Humidity Controlled Rooms Customized  Chamber 2





Company Profile



Large 9.8M3 Walk In Climatic Chamber Temperature Humidity Controlled Rooms Customized  Chamber 3



BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.



Large 9.8M3 Walk In Climatic Chamber Temperature Humidity Controlled Rooms Customized  Chamber 4



Main equipment include:

  • Constant Temperature and Humidity Test Chamber
  • Salt Spray Test Chamber / Corrosion Cyclic Salt Spray Test Chamber
  • UV Accelerated Aging Test Chamber
  • Mini Environmental chamber / Desktop Environmental Test Chamber
  • Walk in Constant Temperature and Humidity Lab
  • High Temperature Chamber and Other Lab Test Equipment etc.

Large 9.8M3 Walk In Climatic Chamber Temperature Humidity Controlled Rooms Customized  Chamber 5



In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.



Main market:



Large 9.8M3 Walk In Climatic Chamber Temperature Humidity Controlled Rooms Customized  Chamber 6

The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.



Production Details



Large 9.8M3 Walk In Climatic Chamber Temperature Humidity Controlled Rooms Customized  Chamber 7

Large 9.8M3 Walk In Climatic Chamber Temperature Humidity Controlled Rooms Customized  Chamber 8



Workshop machine:



Large 9.8M3 Walk In Climatic Chamber Temperature Humidity Controlled Rooms Customized  Chamber 9





Certification





Large 9.8M3 Walk In Climatic Chamber Temperature Humidity Controlled Rooms Customized  Chamber 10



Cooperative partners







Large 9.8M3 Walk In Climatic Chamber Temperature Humidity Controlled Rooms Customized  Chamber 11















Contact Details
BOTO

Phone Number : +8613761261677

WhatsApp : +008613761261677
