|Standard::||ASTM ISO EN JS||Chamber Capacity::||270L|
|Saturated Air Cylinder Temperature::||NSS.ACSS 47°C±1°C/CASS 63°C±1°C||Power::||Electronic, AC220V,10A|
|Internal Size::||90x60x50cm||Test Liquid Capacity::||25L|
|Design Standard::||ISO-9227 ASTM-B117 JIS-D0201 H8502 H8610 K5400 Z2371||External Size::||141x88x128cm|
|Feature::||High Accurancy||Package::||Standard Wooden Case|

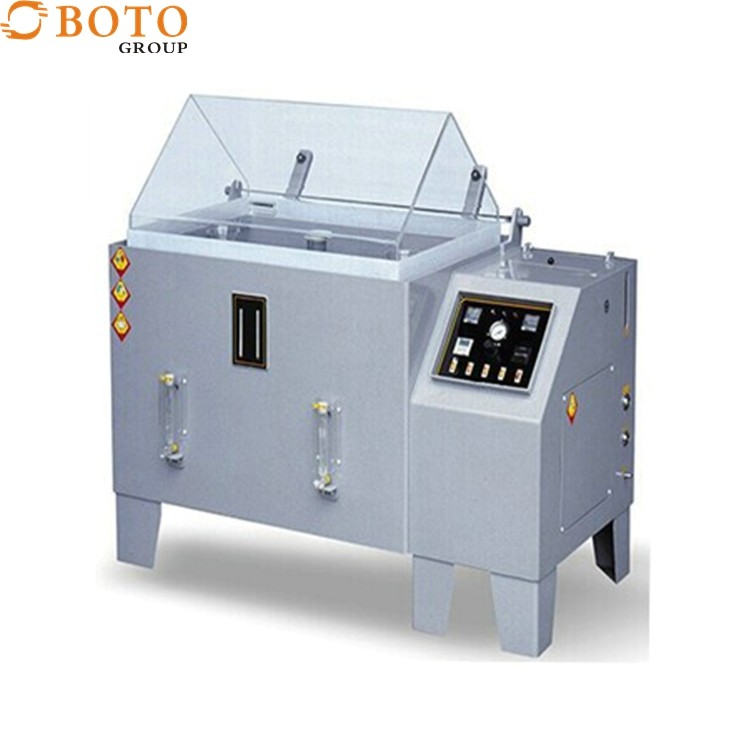

Sst Salt Spray Machine,
25L Liquid Corrosion Test Chamber,
ISO9227 Corrosion Test Chamber
Corrosion test equipment adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.
salt spray test machine is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a period of time. Test duration depends on the corrosion resistance of the coating; the more corrosion resistant the coating is, the longer the period in testing without showing signs of corrosion. Different coatings have different behaviour in salt spray test and consequently, test duration will differ from one type of coating to another.
1. Spray nozzle the heart of teser adopt Bo Nute Principle which change saline water into atomization but no crystallization produced.
2. Controller is digital type microcomputer which delivers precision temparature.
3. Parameters show on the display screen such as temparature, humidity, pressure, spray capacity and time.
4. Test specifications are accept worldwild.
Equipment by the occurrence of silent and efficient ozone generator ozone gas, and a certain amount of air processed, the switch in the mixture into the chamber, the continuous line UV detector to detect the concentration of ozone, ozone generator control feedback to the systems to control system settings according to the occurrence of effective control of ozone to the ozone chamber to maintain the appropriate concentration of work by heating humidification systems to meet all the test conditions.
FRP material forming, high temperature, never leak
Special nozzle design, spray evenly
Cycle and continuous spray selection, suitable for a variety of test standards
FRP structure suitable for neutral salt spray test, acid salt spray test and high temperature salt spray test
The main products with salt:
Neutral salt spray test
Acid salt spray test
High temperature salt spray test (FRP opaque cover)
Mainly used for hardware, electroplating industry for salt spray corrosion resistance test
Corrosion test chamber
|Inner Box Size (L×W×H)||90×60×50 cm|
|Outside Box Size(L×W×H)||141×88×128 cm|
|Equipment Material||Both inside & outside shell adopt imported P.V.C rigid plastic board, and tank cover uses imported transparent P.V.C. rigid plastic board|
Test Chamber Temperature
|Salt Spray Method (NSS ACSS)35±1°C
Corrosion-resistant Testing Method(CASS)50±1°C
|Saturated air Barrel Temperature||Salt Spray Method (NSS ACSS)47±1°C
Corrosion-resistant Testing Method(CASS)63±1°C
|Spray Quantity||1.0~2.0 ml / 80cm2 / hr|
|PH||Salt Spray Method (NSS ACSS6.5~7.2)
Corrosion-resistant Testing Method(CASS)3.0~3.2
|Brine Tank Capacity||25L|
|Multiple Safety Protection Devices||Current discharge protection, over pressure protection,over temperature protection, over load fuse protection|
|Accessories||Testing Salt/ Measuring tank/ Equipment each 1 set|
|Standard||CNS: 3627, 3385, 4159, 7669, 8886;
JIS: D0201, H8502, H8610, K5400, Z2371;
ISO: 3768, 3769, 3770;
ASTM: B117, B268
