BT-DWC-60 Impact Testing Low Temperature Cooling Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-DWC-60
Minimum Order Quantity: 1set
Price: 1700-1800 USD
Packaging Details: WOODEN CASE
Delivery Time: 5-25DAYS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Month
Product Name:: Low Temperature Cooling Chamber Power Supply:: 380V 50Hz
Power:: Electronic
High Light:

Electronic Environmental Test Chambers

,

Low Temperature Environmental Test Chambers

,

380V Environmental Test Chambers

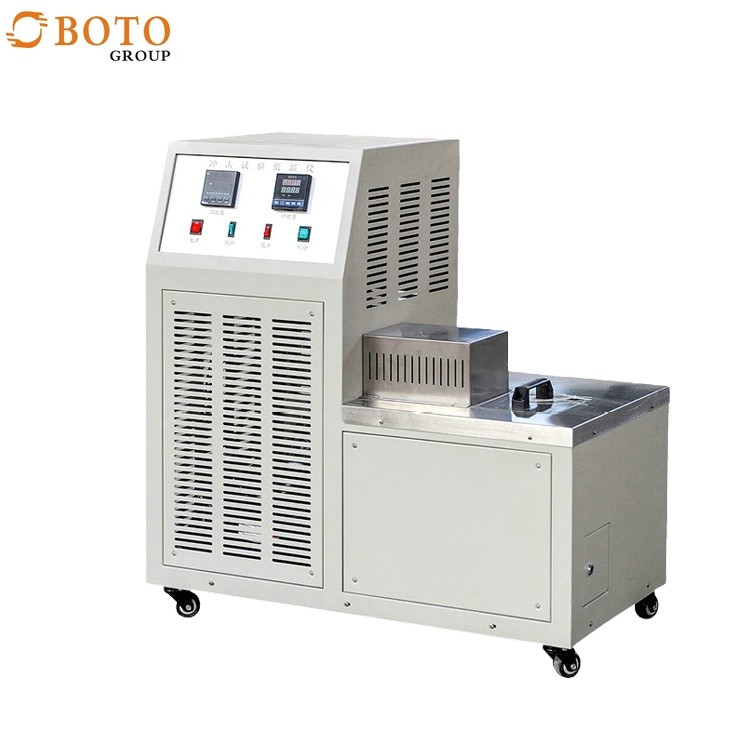

BT-DWC-60 Impact Testing Low Temperature Cooling Chamber



Product Description





1. Application

The machine is designed according to Charpy notch Impact Test Method for Metal Material, and adopts compressor cooling technology. It utilizes the heat balance principle and cycle stirring method to realize the constant temperature cooling to impact specimen with the reliable performance. Digital display, automatic control temperature, and it is the ideal equipment for cooling and keeping temperature to impact specimen.



2. Standards:

ASTM, E23-02a, En10045, ISO83,GB/T229-2009



3. Main Specifications:



Model BT-DWC-40 BT-DWC-60

BT-DWC-80



BT-DWC-100
Temperature range +30~-40° +30~-60° +30~-80° +30~-100°
Temperature Control Accuracy ±0.5°

Temperature dropping speed



+30°C~0°C

1.2°C/min

+30°C~0°C

2°C/min

+30°C~0°C

2°C/min

+30°C~0°C

2°C/min

0°c~-20°C

0.8°C/min

0°c~-20°C

1.5°C/min

0°c~-20°C

1.5°C/min

0°c~-20°C

1.5°C/min

-20°C~-40°C

0.5°C/min

-20°C~-40°C

1.0°C/min

-20°C~-60°C

1.0°C/min

-20°C~-40°C

1.0°C/min

-40°C~-60°C

0.7°C/min

-60°C~-80°C

0.7°C/min

-60°C~-100°C

0.7°C/min

Cold Room Volume 150×505×240mm
Dimensions 900×505×850 mm 900×505×850 mm 900×505×850 mm 1500×1200×1200 mm
Box Material Steel Spray
Loading the number of samples >60 >60 >60 >200
Mode of refrigeration Compressor refrigeration
Cooling Medium Ethanol or other unfrozen liquid
Power 7Kw 7Kw 7Kw 7Kw
