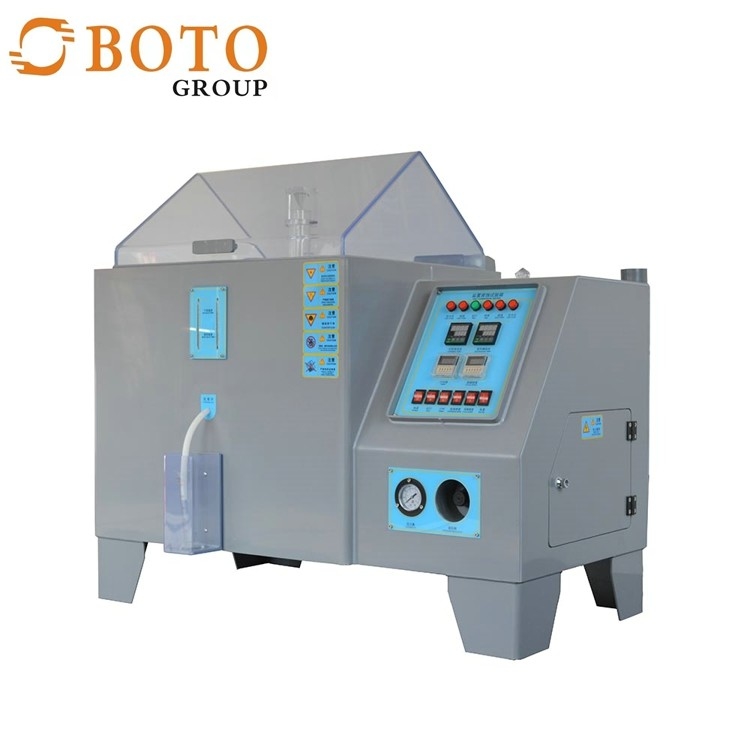

Lab Salt Spray Test Chamber Price Corrosion Resistance

Lab Salt Spray Test Chamber Price Corrosion Resistance
Lab Salt Spray Test Chamber Price Corrosion Resistance Lab Salt Spray Test Chamber Price Corrosion Resistance Lab Salt Spray Test Chamber Price Corrosion Resistance
Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-AT-YW series
Minimum Order Quantity: 1set
Price: 2000-3500usd
Packaging Details: wooden case
Delivery Time: 3-30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Set/Sets per Year
Contact Now
Inner Dim. (cm):: 60*45*40 Salt Water Tank Volume: 15L: Salt Water Tank Volume: 15L
Fog Quantity:: 1~2ml/h.80cm2 Timing Range:: 0-9999.9h
Power Supply:: AC220V, 50Hz Power:: Electronic
Test Chamber Volume:: 108L Material Thickness:: 5mm
Test Chamber Temp.:: RT+5℃~50℃ Temp. Fluctuation:: ≤±0.5℃
Interval Time:: 0~99.9 H
Highlight:

Lab Salt Spray Test Chamber

,

2ml/h Salt Spray Test Chamber

,

Thick 5mm Salt Spray Test Chamber

Product Description



BT-AT-YW Series Salt Spray Chamber is used to determine the corrosion resistance to salt fog of specimens. It is used for evaluating the quality and the uniformity of materials surfaces. This machine conforms to ISO 9227, ASTM B117, DIN 50021, GB/T 2423.17, GB/T 2423.18, etc.

Schematic diagram:
Lab Salt Spray Test Chamber Price Corrosion Resistance 0
Lab Salt Spray Test Chamber Price Corrosion Resistance 1



The chamber adopts high quality material and advanced technology, corrosion resistant, smooth and easy to clean, no leakage phenomenon.
Lab Salt Spray Test Chamber Price Corrosion Resistance 2



It equipped with a variety of specimen supports, convenient for placement of all kinds of specimens to test.
Specification
Model
BT-AT-YW60
BT-AT-YW90
BT-AT-YW120
BT-AT-YW160
BT-AT-YW200
Inner dim. (cm)
60×45×40
90×60×50
120×85×50
160×100×50
200×100×60
External dim. (cm)
110×67×118
141×91×122
200×115×145
240×135×145
280×135×155
Test chamber volume
108L
270L
600L
680L
800L
Salt water tank volume
15L
25L
40L
40L
60L
Material Thickness
5mm
6mm
8mm
8mm
10mm
Test chamber temp.
RT＋5℃~50℃
Fog quantity
1～2ml/h.80cm2
Temp. fluctuation
≤±0.5℃
Spray tower
Independent designed acrylic conical disperser, can adjust the flow of the spray, and can make the fog uniform
Spray nozzle
PYREX glass precision nozzle
Spraying mode
Continuous and intermittent spray selectable
Timing range
0-9999.9h
Interval time
0~99.9 h
Power supply
AC220V, 50Hz
Details & Features
★ Innovative design, chamber structure, easy to install and maintain, stable and reliable;
★ Chamber cover adopts transparent acrylic sheet, 5mm thick, high temperature resistant;
★ Adopts U-shaped alloy heating tube, fast to heat, with resistance to acid and alkali corrosion, long service life;
★ Independent designed acrylic conical atomizer, can adjust the flow of the spray, and can make the fog uniform;
★ Pressure regulating valve adopt concave type design, to prevent wrong operation, and save space.
