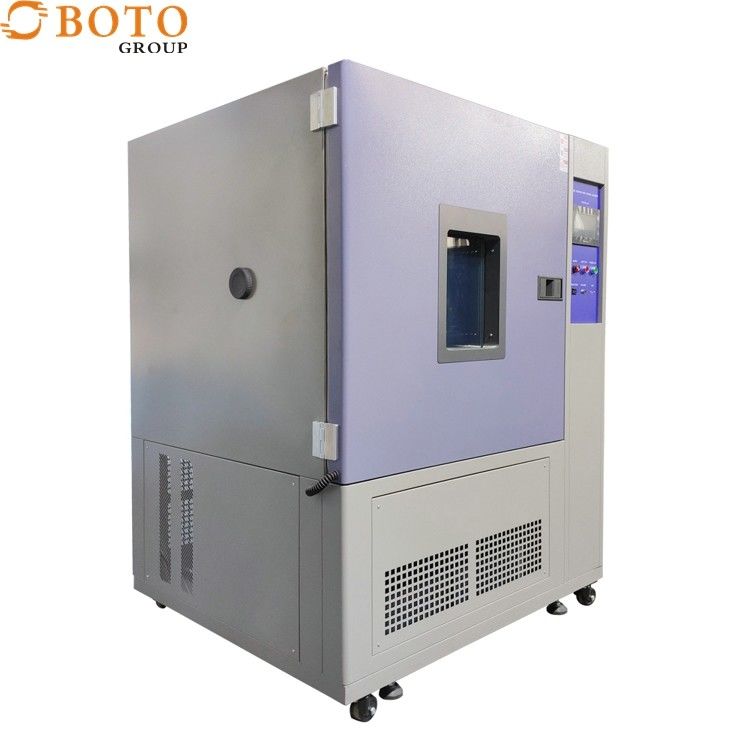

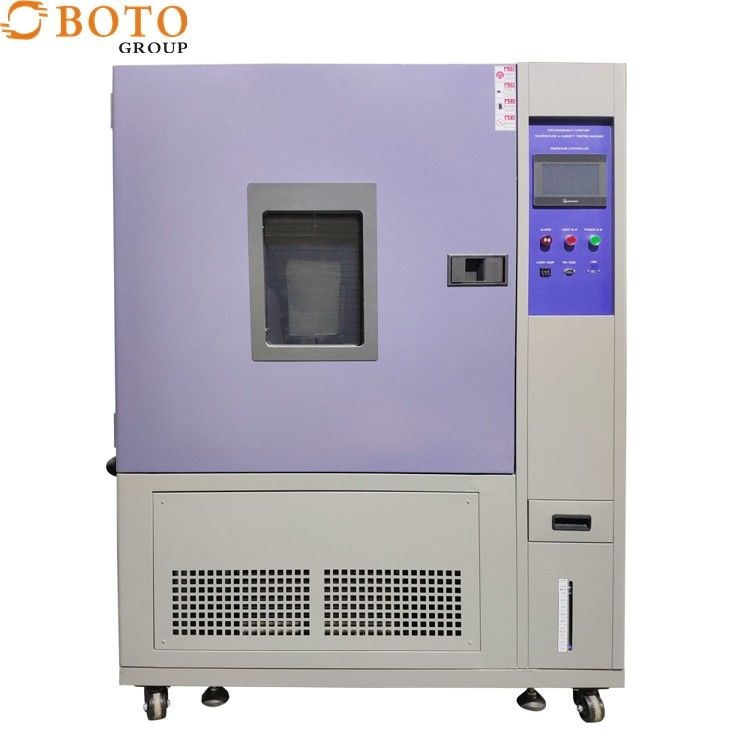

B-TH-225 Simulated Temperature And Humidity Climate Control Testing Machine

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE TUV ISO
Model Number: B-TH-120
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 15 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 set/month
Model: B-TH-225 Interior: SUS#304Stainless Steel Plate
External Dim: 75*189*110 CM Temp Uniformity: ±1.0°C
Temp Fluctuation: ±0.5°C Heat-up Time(min): About 3~5°C/min
Pull-down Time: About 0.7~1°C/min Temp Range: -70°C~150°C
Power Source: AC:220V/380V 50/60Hz Power: 2kw~6.5kw
Internal Dim: 45*60*45 CM Exterior: Coating Or SUS#304 Stainless Steel Plate
Relative Humidity: 20%~98%RH
High Light:

Simulated Temperature Humidity Test Chamber

,

6.5kw Temperature Humidity Test Chamber

,

ASTM D4714 Temperature Humidity Test Chamber

B-TH-225 Simulated Temperature and Humidity Climate Control Testing Machine



This Chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry, resist humidity and resist cold. That can define performance of material.





Product Description

This Chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry, resist humidity and resist cold. That can define performance of material.



B-TH-225 Simulated Temperature And Humidity Climate Control Testing Machine 0



Mainly used in national defense industry, aviation industry, automotive parts, electronic components, plastics industry, food industry and other related product development, straightening management engineering test specifications. Its characteristics are as follows:



1. The import of compressors and refrigeration accessories by the well-known brands in the national boundaries ensures the stability of the refrigeration system.

2. The cause of the faults can be displayed and the reason is easy to exclude.

3. The special air supply cycle design, the temperature and humidity distribution uniformity is good.

4. The whole series of imported microcomputer controllers are colored. Color touch screen, Chinese and English system, can be used as a function of setting the city value. It can show the cause of the trouble, exclude easy, super quiet design, effectively reduce the running noise of the equipment, and

5. Super quiet design, effectively reduce the running noise of the equipment.

6. Multiple safety protection, refrigerant high voltage protection, compressor overload protection, current overload protection, overtemperature protection, leakage protection.


B-TH-225 Simulated Temperature And Humidity Climate Control Testing Machine 1

Standards: GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566



Characteristics:

1. Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.

2. Control temperature&humidity well-distributed, precisely and steady.

3. Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.



Benchtops Temperature & Humidity Test Chamber, High Temperature Test Chamber, Dry Oven, Alternating Temperature Test Chamber, Alternating Temperature & Humidity Test Chamber, Temperature Rapid Change Test Chamber, Temperature & Humidity Rapid Change Test Chamber, Alternating Temperature Alternating Humidity Rapid Change, Thermal shock Test Chamber(Two-zone, Three-zone), Large Walk-in Test Room

B-TH-225 Simulated Temperature And Humidity Climate Control Testing Machine 2

B-TH-225 Simulated Temperature And Humidity Climate Control Testing Machine 3



Applications

● To simulate test environment with different temperature and humidity

● Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…

● Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation

● Uncover test unit weakness in a short-term test with accelerated time effect



Specifications



Model BT-280 BT-2150 BT-2225 BT-2408 BT-2800

Inner Size

W×H×D(cm)

40×50×40 50×60×50 50×75×60 60×85×80 100×100×80

Outside Size

W×H×D(cm)

93×155×95 100×148×106 117×166×91 140×176×101 170×186×111
Volume (V) 80 L 150L 225L 408L 800L
Temp and Hum Range

A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C

RH20%-98%

Function Fluctuation ±0.5°C ±2.5%RH



Chamber Design Features

● High performance and quiet operation (68 dBA)

● Space-saving designed for flush installation to wall

● Full thermal break around doorframe

● One 50mm diameter cable port o left, with flexible silicone plug

● Direct water supply connection for continuous operation

● Accurate wet/dry-bulb humidity measurement system for easy maintain



Programmable Controller

● PIC controller for test chamber

● Step types include: ramp, soak, jump, auto-start, and end

● RS-232 interface to connect computer for output

B-TH-225 Simulated Temperature And Humidity Climate Control Testing Machine 4

B-TH-225 Simulated Temperature And Humidity Climate Control Testing Machine 5

B-TH-225 Simulated Temperature And Humidity Climate Control Testing Machine 6



Features:



1. Small size, special design and overlapping, not occupying planar space, suitable for laboratory use.

2. Low power consumption, energy saving and consumption reduction; low noise, low radiation, green

environmental protection.

3. High efficiency, communication mode using Qualcomm software F4 controller to complete a variety

of tests at the same time.

























Component & Spare Parts Used for the Chamber



B-TH-225 Simulated Temperature And Humidity Climate Control Testing Machine 7B-TH-225 Simulated Temperature And Humidity Climate Control Testing Machine 8



TECUMSEH compressor DANFOSS Filter







B-TH-225 Simulated Temperature And Humidity Climate Control Testing Machine 9B-TH-225 Simulated Temperature And Humidity Climate Control Testing Machine 10



DANFOSS expansion valve AIRMENDER Gas Liquid Separators









Packing & Delivery





1.Standard exported package: Internal anticollision protection, external export wooden box packaging.



2.Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.



3. Responsible for the damage during the shipping process, will change the damage part for you for free.



4.15-20days after confirming order,detail delivery date should be decided according to production season

and order quantity.

B-TH-225 Simulated Temperature And Humidity Climate Control Testing Machine 11B-TH-225 Simulated Temperature And Humidity Climate Control Testing Machine 12







Company information

B-TH-225 Simulated Temperature And Humidity Climate Control Testing Machine 13

BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.



B-TH-225 Simulated Temperature And Humidity Climate Control Testing Machine 14





Main equipment



B-TH-225 Simulated Temperature And Humidity Climate Control Testing Machine 15



In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.





Main market

B-TH-225 Simulated Temperature And Humidity Climate Control Testing Machine 16



The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.





Production Details



B-TH-225 Simulated Temperature And Humidity Climate Control Testing Machine 17

B-TH-225 Simulated Temperature And Humidity Climate Control Testing Machine 18





Workshop Machine



B-TH-225 Simulated Temperature And Humidity Climate Control Testing Machine 19





Certification

B-TH-225 Simulated Temperature And Humidity Climate Control Testing Machine 20



TRADING PROCESS

B-TH-225 Simulated Temperature And Humidity Climate Control Testing Machine 21



Cooperative partners



B-TH-225 Simulated Temperature And Humidity Climate Control Testing Machine 22





Our Service

1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our technical team
6.Warranty period 12 months
