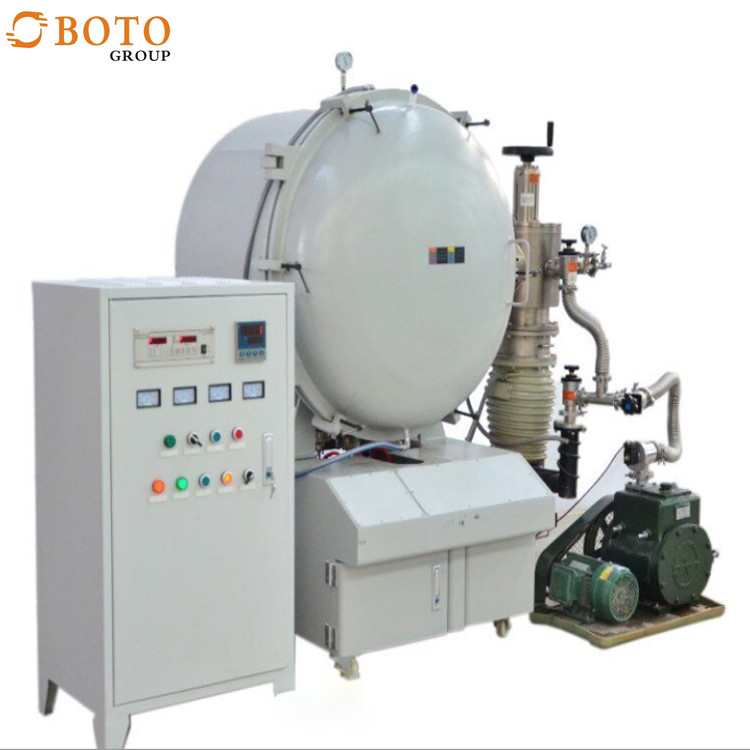

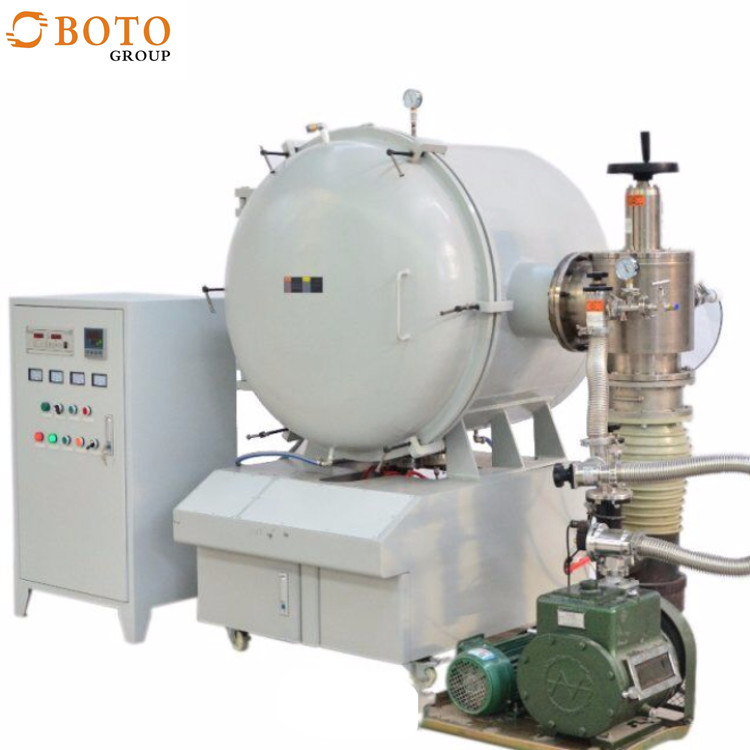

Laboratory Material Testing High Temperature Electric Muffle Vacuum Furnace

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-16-X
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Set/Sets per Month
Customized Support:: OEM, ODM, OBM Temperature Control Precision:: ±1℃
Volumn:: Customize Standard:: ASTM ISO EN JS
Heating Rate:: 0--30℃/min(recommended No More Than20℃/min) Vacuum Degree:: -0.1MPa
Theory:: Temperature Controller Power Supply:: 220V 50Hz / 380V 60hZ
Color:: Customized
High Light:

ASTM Vacuum Muffle Furnace

,

OBM Laboratory Vacuum Muffle Furnace

,

3KW Vacuum Muffle Furnace

Product Description


This series of equipment is suitable for scientific research institutions, colleges and universities, industrial and mining enterprises ideal experimental and production equipment. It mainly used in high temperature precision annealing, micro-crystallization, ceramic glaze preparation, mold annealing, powder metallurgy, plastic powder foam test, sintering of nanometer materials, quenching of metal parts and all heat treatment required by high temperature technology.

Characteristics:

1. The double-layer forced air-cooling structure of the furnace shell is close to the room temperature at the time of operation. The appearance is sprayed with high-temperature and high-quality paint, and is not easy to fade. The door of the furnace is protected by stainless steel cover for a long time without blackening and easy to maintain.

2. Integrated compact design, step splicing structure, in accordance with the law of mechanics, heating force is uniform, heat is not easy to lose.

3. High quality and high alumina polycrystalline ceramic fiber (alumina > 95%), resistant to rapid cooling and heat preservation.

Specifications



Model BT-16-17TP BT-16-18TP BT-16-19TP
Furnace size(W*H*D)mm 150*150*80 200*150*150 300*200*200
Outer size(W*H*D)mm 735*750*1200 700*670*930 750*660*1020
Weight(Kg) 155 190 300
power rating 3KW 5KW 9KW
Power 220V 50/60HZ
Temperature control precision ±1
vacuum degree -0.1MPa
end-use temperature maximum temperature 1800℃
heating rate 0--30℃/min(recommended less than 20/min)
Thermocouple Type B
heating element Silicon molybdenum rod
Display mode Color LED display
gasket ring Fluorine ring
vacuum pump Oil-immersed single rotary vane vacuum pump
Measuring mode mechanical pressure gauge
Furnace material High alumina polycrystalline ceramic fiber
Furnace structure double-layer forced air-cooling structure
Product Effects

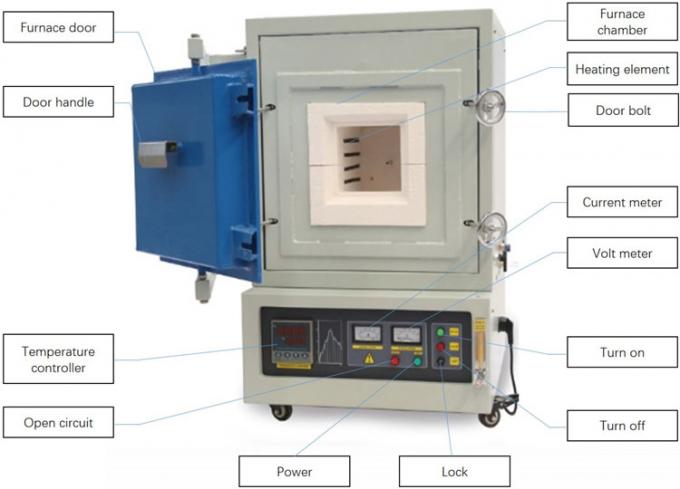

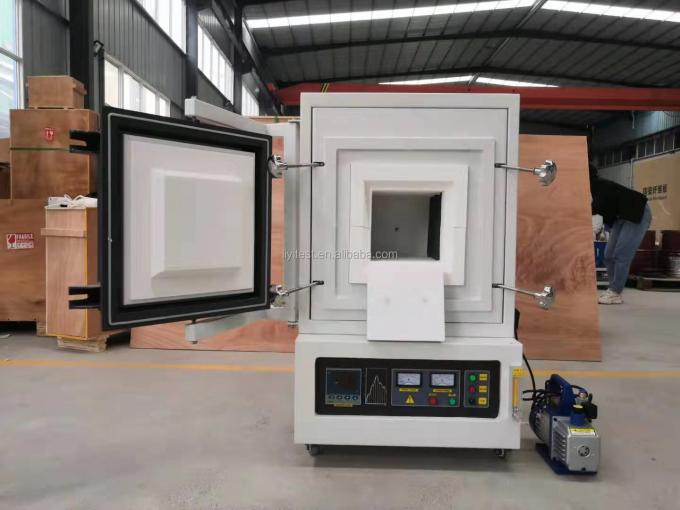

LIYI Laboratory Material Testing High Temperature Electric Muffle Vacuum FurnaceLIYI Laboratory Material Testing High Temperature Electric Muffle Vacuum Furnace
