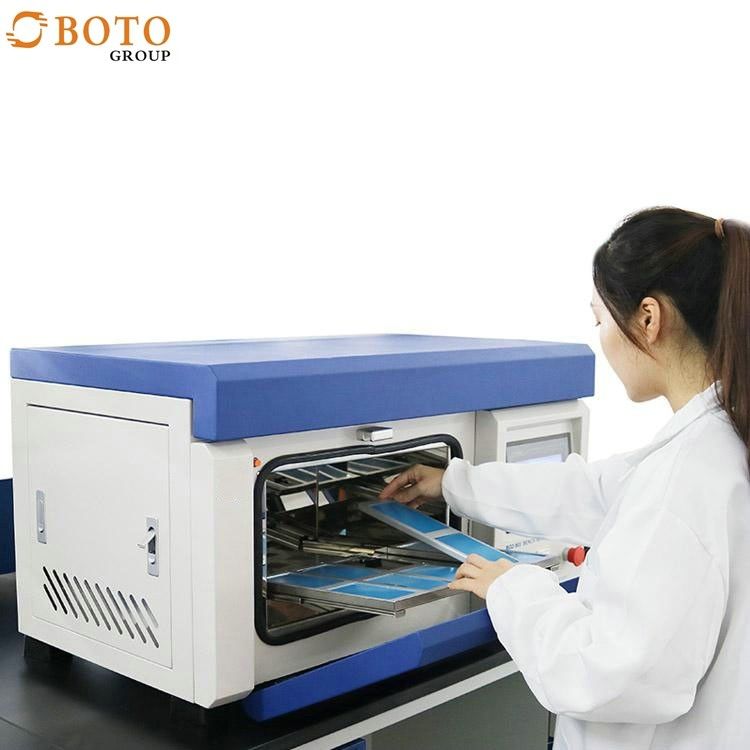

Xenon UV Weathering Test Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: LFZ-XW Economic
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Set/Sets per Month
Exposure Area: 900cm2 Chamber Size (mm)W×D×H: 460×250×200
Dimensions (mm)W×D×H: 610×465×520 Sample Size: 200×450mm
Temp. Range (Black Panel): 45℃~90℃ Temp. Fluctuation: ≤ ±2℃
Illumination: 10~75%RH Dark: 10~95%RH
Ambient Temp.: 10~30℃ Power: 2500W
Spray System: No Lamp Cooling Type: Air-cooled
Sample Tray: Plate Bearing Of Test Bench: 10Kg
Power Supply: 220V 50Hz
High Light:

Xenon UV Weathering Test Chamber

,

900cm2 Exposure UV Weathering Test Chamber

,

2500W UV Weathering Test Chamber

Xenon UV Weathering Test Chamber



Product introduction



♦ user-friendly design

  1. Unique design mirror reflection system to ensure a large and sufficiently uniform in exposure, also can enhance light irradiance and shorter sample exposure time.
  2. Slides out of sample tray for easy placement of multiple samples, it can be placed on the bottles, test tubes, petri dishes and other special samples.
  3. Can be interchanged the Xenon lamp with U.S brand, the life of lamp up to 1500 hours.
  4. Adopt PLC touch screen controller from SIEMENS, easy to observe and operate.



♦Touch screen controller (SIEMENS)

  1. 9.7-inch touch screen to displays a variety of data, menu-driven user interface, easy to understand, observe and operate.
  2. Irradiance, black panel temperature, rain cycles can be set and displayed visually.
  3. Touch screen can display all control parameters and automatic fault diagnosis information; with lamp attenuation tips to ensure irradiance uniformity, stability and reliability.
  4. Built-in industry standard in controllers for different industry user to select, 10 segments program can be set.
  5. With data processing capabilities for test data and playback process provide a strong guarantee.



♦Standard

  1. Paint industry: GB / T1865-2009; GB / T16422.2-1999; GB / T1189-91; ISO11341
  2. Auto industry: SAEJ1885; SAEJ19960; GMW3414TM Ford Interior
  3. Rubber Industry: ISO4892-2; ASTM D2565
  4. Textile industry: AATCC16E; AATCC169 (1); ISO 105B-06; ISO 105B-02
  5. Materials Industry: ASTM G155-1; ASTM G155-4; ASTM D6551

SPECIFICATIONS

Model LFZ-XW Economic LFZ-XW-I LFZ-XW-II
Exposure area 900 cm2 1040cm2
Chamber size (mm)W×D×H 460×250×200 320×320×320
Dimensions (mm)W×D×H 610×465×520 890×580×590
Sample Size 200×450mm 310×340mm
Temp. range (Black Panel) 45℃~90℃
Temp. fluctuation ≤ ±2℃
Illumination   10~75%RH
Dark   10~95%RH
Ambient temp. 10~30℃
Irradiance N/A 340nm, 420nm
300~400nm auto control (optional of radiometer)
Power 2500W 3500W (Maximum power)
Spray system No Yes
Lamp cooling type Air-cooled
Sample tray Plate
Bearing of test bench 10Kg
Power supply 220V 50Hz
