Name: Lab Apparatus Climate Control Chamber Temperature Humidity Chamber Environmental Tester
Brand: BOTO GROUP LTD
SKU: BT-1000
Price: 120000 USD
Availability: InStock

Home > Products > Environmental Test Chambers >

Lab Apparatus Climate Control Chamber Temperature Humidity Chamber Environmental Tester

Lab Apparatus Climate Control Chamber

220V Climate Control Chamber

98%RH Climate Control Chamber

Place of Origin:

China

Brand Name:

BOTO

Certification:

CE ISO

Model Number:

BT-1000

Request A Quote

Lab Apparatus Climate Control Chamber Temperature Humidity Chamber Environmental Tester

Product Details

Temperature Range::

-70°C~150°C Rapid Temperature Nolinear (linearly Is Option)

Temperture Fluctuation::

+-0.5℃

Power::

Electronic, Electronic 220V

Humidity Range::

20%~98%RH

Highlight:

Lab Apparatus Climate Control Chamber

220V Climate Control Chamber

98%RH Climate Control Chamber

Payment & Shipping Terms

Minimum Order Quantity

1set

Packaging Details

wooden case

Delivery Time

5-25 days

Payment Terms

L/C, T/T, Western Union

Supply Ability

300 set per year

Made-To-Order Comprehensive Temperature,Humidity,Vibration Composite Test Chamber

Get Best Price

B-TH Walk-In High & Low Temperature Alternating Humidity Test Chamber For EV/Energy Storage

Get Best Price

High-Performance Made-To-Order PCT Benchtop High Pressure & High Humidity Environmental Test Chamber

Get Best Price

High-Performance Salt Spray Corrosion Test Chamber With SSR 1-2ml/80cm2/H And AC 220V50Hz

Get Best Price

Contact Now

Product Description

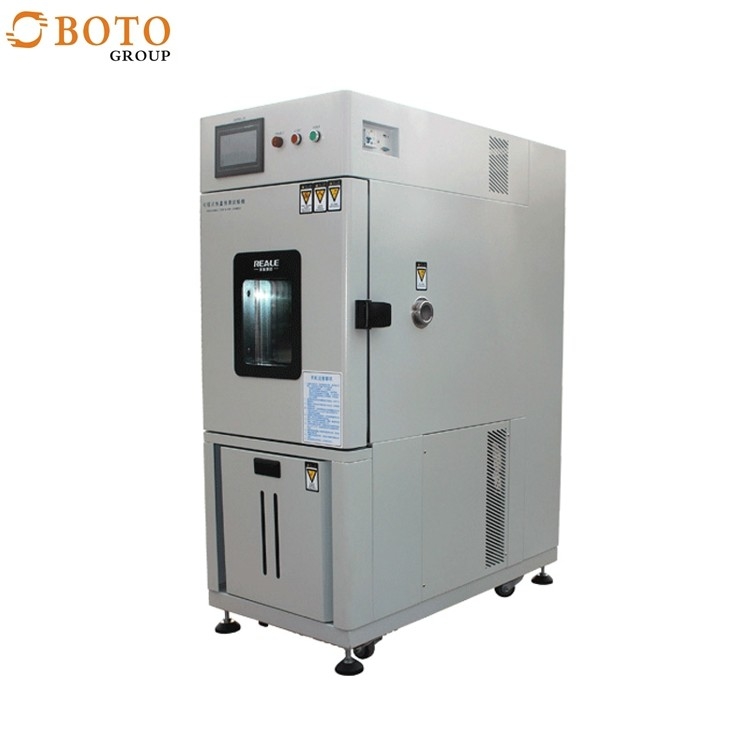

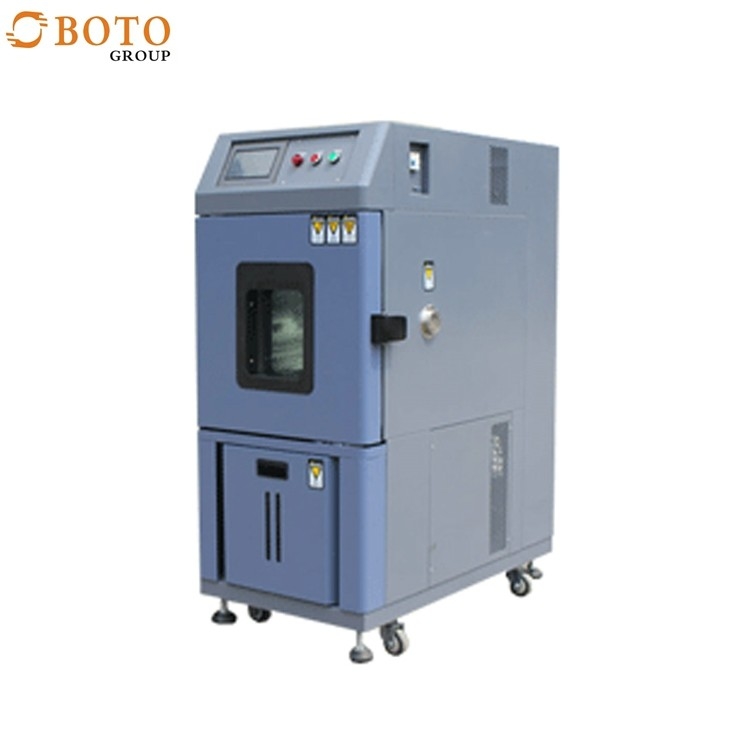

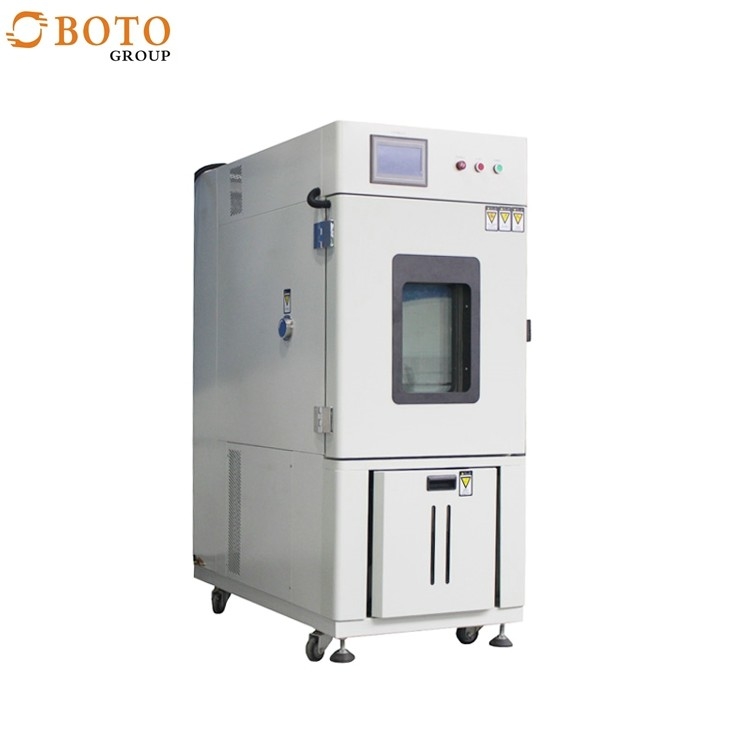

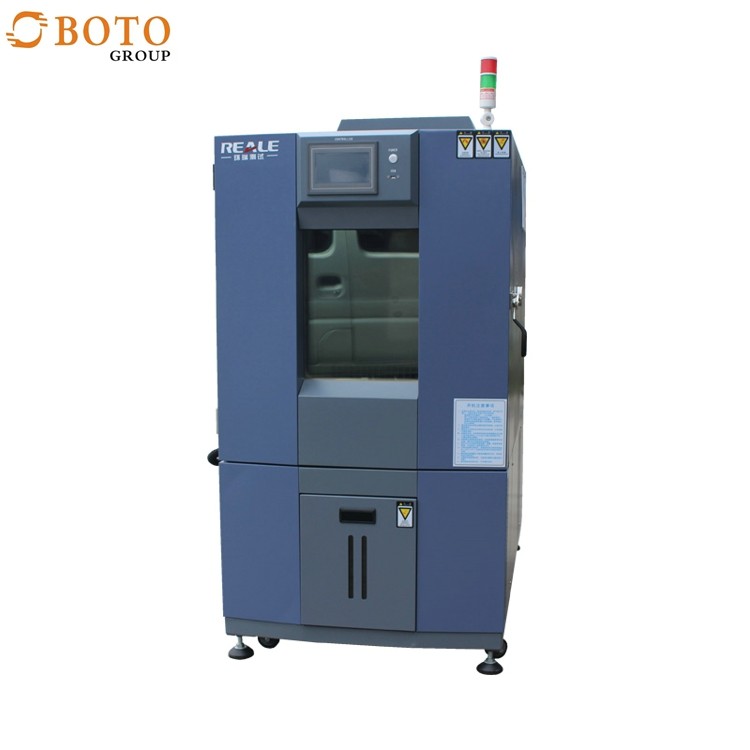

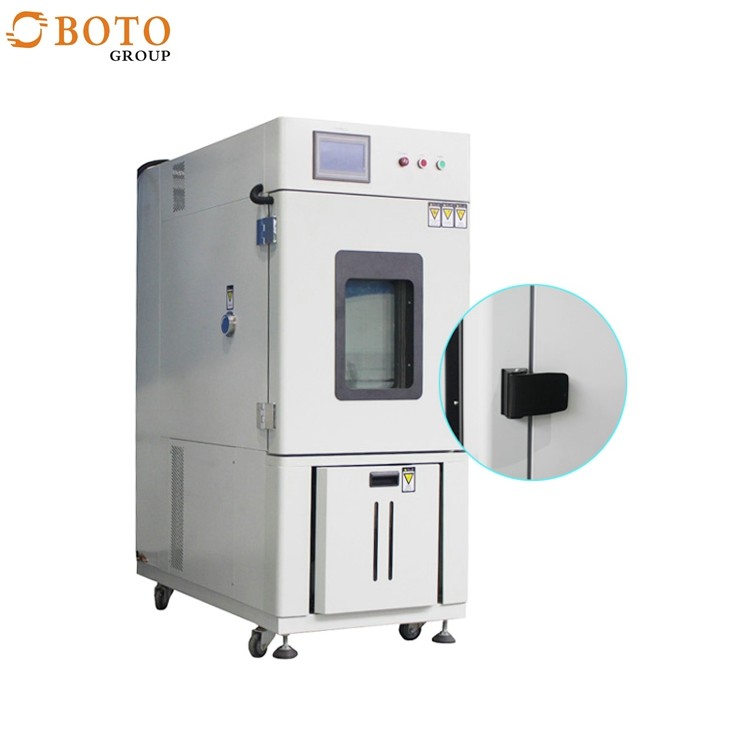

Lab Apparatus Climate Control Chamber / Temperature and Humidity Tester

Product Description

Temperature and humidity test chamber is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and easy program to edit. It can show the setting values and operative time.

SPECIFICATIONS
Model	BT-23	BT-80	BT-100	BT-150	BT-225	RHP-408
System	Balanced temperature & humidity control system
Temp. range	-70°C~150C°
Humidity range	20%~98%R.H
Temp. fluctuation	±0.5℃
Humidity fluctuation	±2.5%R.H
Temperature deviation	±2.0℃
Humidity deviation	±3%RH(≥75%)/±5%RH(<75%)
Heat up time	-20°C~150°C 45 minutes, -40°C~150°C 60 minutes, -70°C~150°C 75minutes
Pull down time	20°C~-20°C 40minutes, 20°C~-40°C 60minutes, 20°C~-70°C 85minutes
Internal dimension (CM)	W30	W40	W50	W50	W60	W68
	H30	H50	H50	H60	H75	H80
	D25	D40	D40	D50	D50	D75
Interior material	Stainless steel 304
Exterior material	Backed paiting steel or stainless steel(SUS304)
Insulation material	Rigid polyruethane foam +glass fibre
Cooling system	1. Air cooled (Water cooled type is option) 2. Singl section/cascade type, hermetic/semitight compressor,CFC free refrigerant
Controller	Color LCD screen in English/Chinese, programing,communicating function
Safety devices	No welding wire switch, compressor overheating and over current protection, over temperature protection, blower overload protection, dry heating machine protector,low water protection, fault warning system.
Standard accessories	one observation window, one test hole, two sets of test rack, one floodlight, one indicator light, four moving wheels, one humidifying tank, 2meters of power cord, communication interface
Power	AC380V±10% 50HZ 3 phase 4 wires+ground wires
