| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE ISO |
| Model Number: | BT-YWER |
| Minimum Order Quantity: | 1set |
| Packaging Details: | wooden case |
| Delivery Time: | 5-25 days |
| Payment Terms: | L/C, T/T, Western Union |
| Testing Temperature Range: | 0℃,-20℃,-40℃,-60℃,+70℃,+80℃ | Temp.fluctuation: | ±2℃ |
|---|---|---|---|
| Humidity Range: | 30~90%RH | Temp.uniformity: | 0.1℃ |
| Heat Up Time: | 20℃~80℃≤50min | Exterior Chamber Material: | Stainless Steel+Powder Coating |
| Interior Chamber Material: | SUS#304 Stainless Steel Plate | Insulation Material: | PU Fiberglass Wool |
| Air Circulation System: | Cooling Fan | Heating System: | SUS#Stainless Steel High-speed Heater |
| Humidification System: | Surface Evaporation System | Controlling System: | Digital Electronic Indicator+SSR+PID |
| Refrigeration System: | Imported Tecumseh Compressor+fin Type Evaporator+ Air(water)condenser | Dehumidifying System: | ADP Dew Point Dehumidification Method |
| Other Components: | Multi-layer Vacuum Glass Observation Window,cable Port(50mm),controlling Status Indicator Lamp,chamber Light,specimenloading Shelf(2pcs,position Adjustable) | Safety Protection Device: | Overheat Protection Circuit Breaker,compressor Overload Protection,control System Overloadprotection,humidifying System Overload Protection Indicator Lamp |
| Power Supply: | AC 3phase380V 60/50Hz | Customization Service: | Non-standard Or Special Requirements Are All Welcome |
| High Light: | Walk In Temperature Humidity Chamber,SUS304 Plate Temperature Humidity Chamber,380V Walk In Stability Chamber |
||

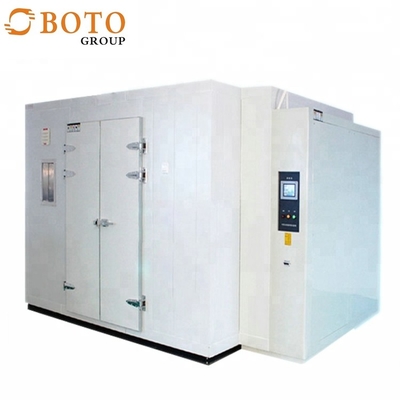

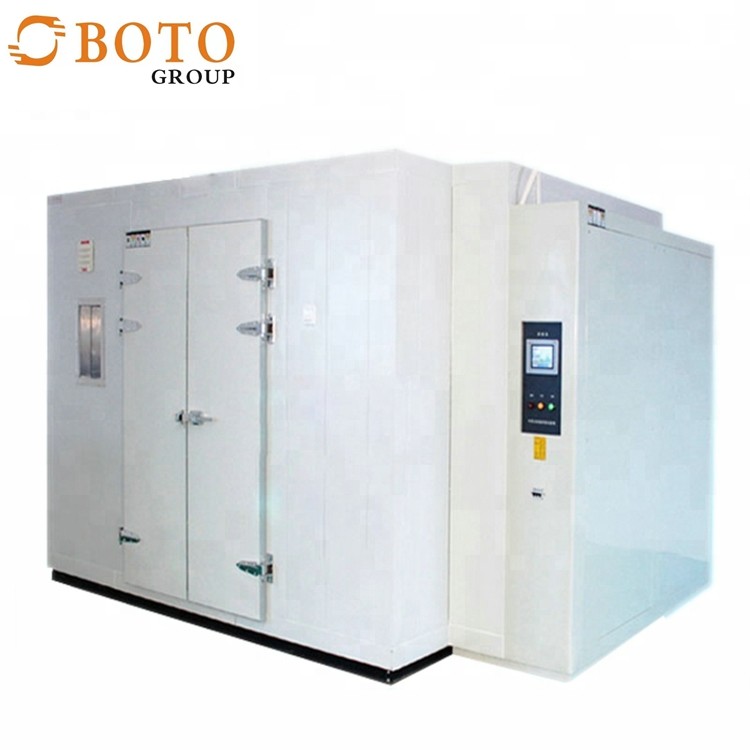

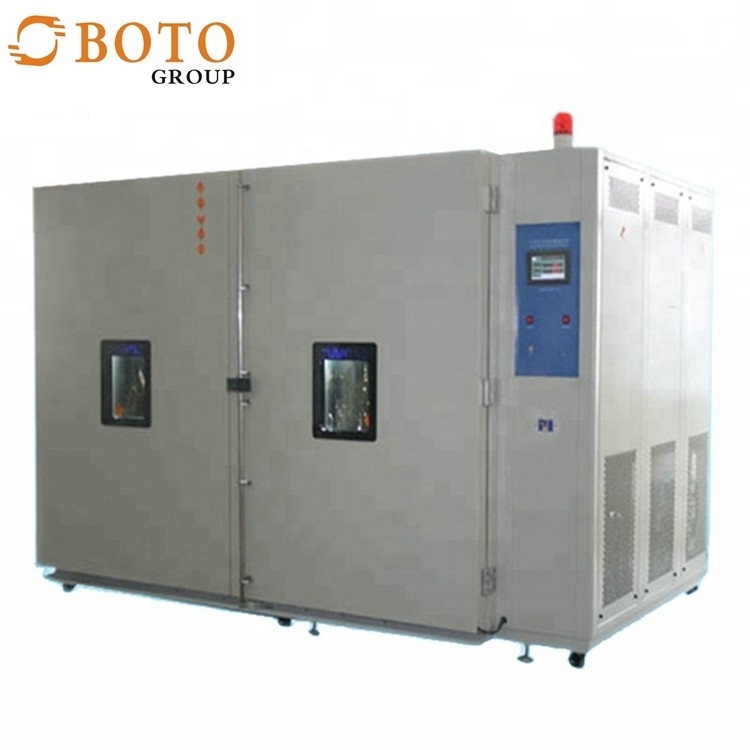

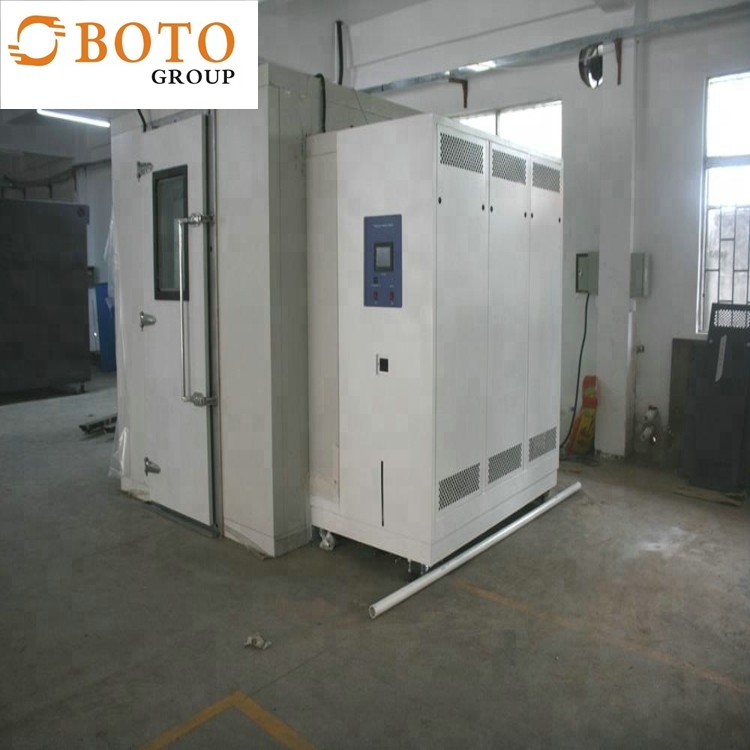

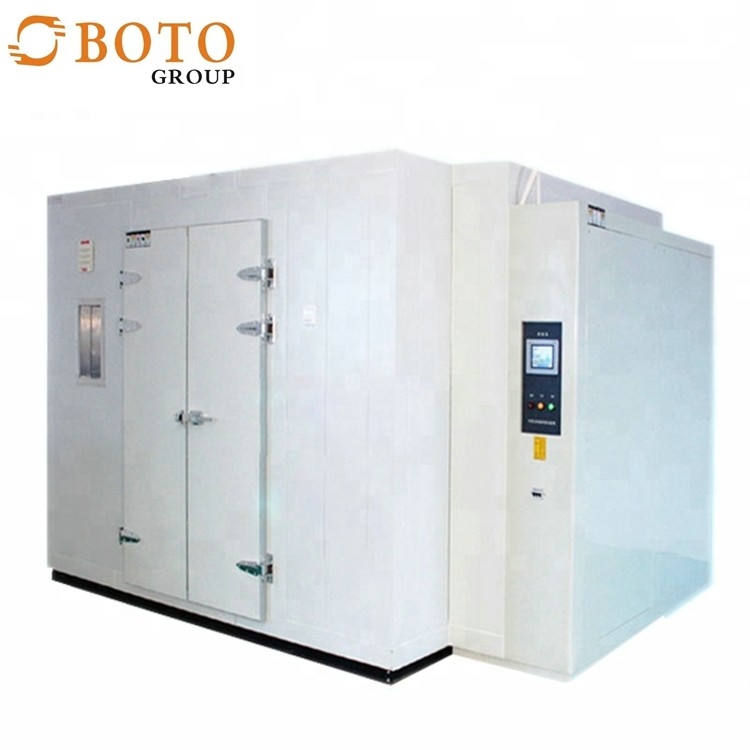

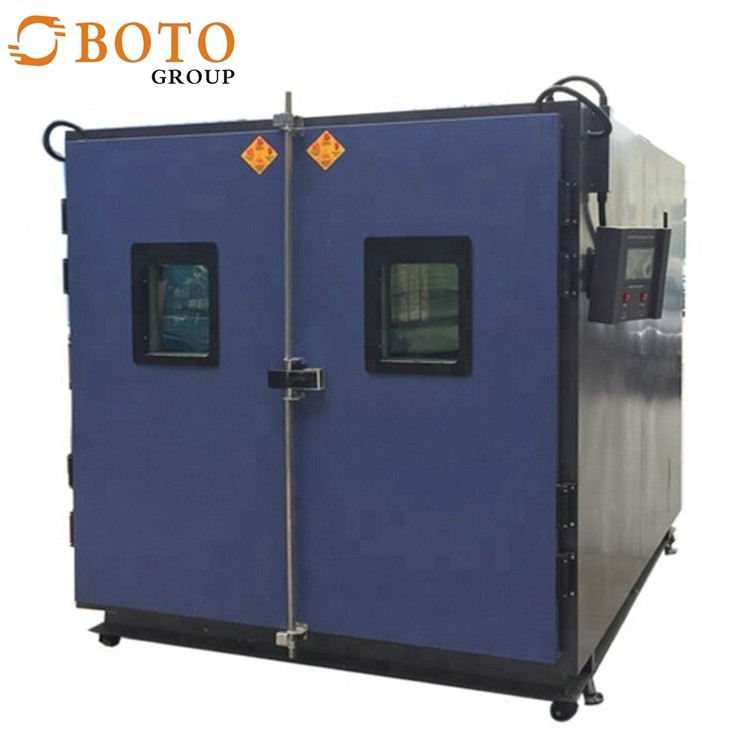

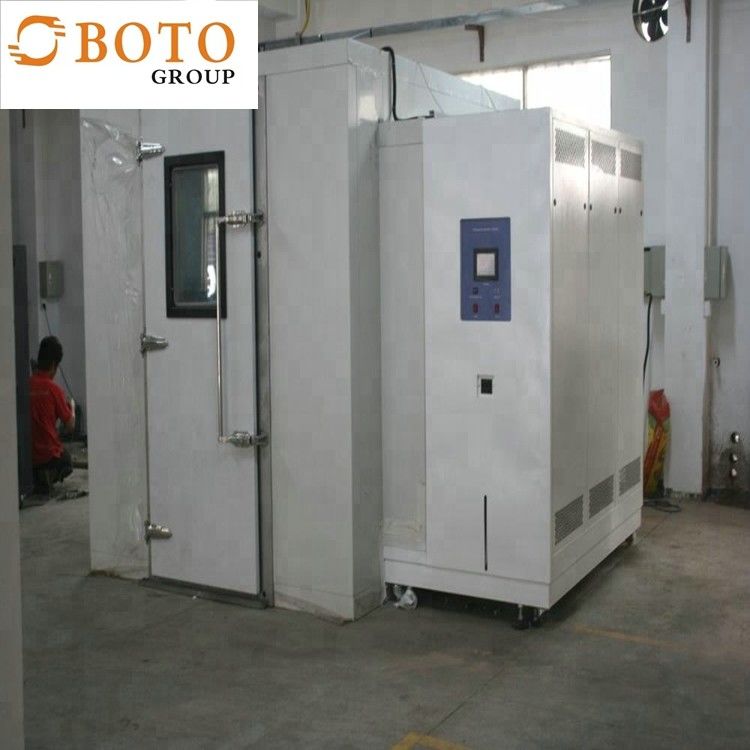

Walk in Temperature Humidity Climatic Chamber Stability Lab Test Equipment Walk in Stability Chamber
Walk in climatic cooling chamber simulate a wide range of temperature and humidity environmental condition. These chambers can be used for testing and controlled storage as well as laboratory environment for conducting test procedures in the telecommunications, defense, aerospace,
pharmaceutical, automotive, and electronics industries, through testing to determine product performance and find the way to improve the product's quality.
Walk in Climatic Chamber Parameters
| Model | BT-YWER | |||||
| Inner chamber size w×h×d(cm) | Non-standard,depends on customers' specific requirements for customization | |||||
| Exterior chamber size w×h×d(cm) | ||||||
| Testing temperature range | 0℃,-20℃,-40℃,-60℃,+70℃,+80℃ | |||||
| Performance | Temp.fluctuation | ±0.3℃ | ||||
| humidity range | 30~90%RH | |||||
| Temp.fluctuation | ±2℃ | |||||
| Temp.uniformity | 0.1℃ | |||||
| Heat up time | 20℃~80℃≤50min | |||||
| Material | Exterior chamber material | Stainless steel+Powder coating | ||||
| Interior chamber material | SUS#304 Stainless steel plate | |||||
| Insulation material | PU fiberglass wool | |||||
| System | Air circulation system | Cooling fan | ||||
| Heating system | SUS#Stainless steel high-speed heater | |||||
| Humidification system | Surface evaporation system | |||||
| Controlling system | Digital electronic indicator+SSR+PID | |||||
| Refrigeration system |
Imported tecumseh compressor+fin type evaporator+ air(water)condenser |
|||||
| Dehumidifying system | ADP dew point dehumidification method | |||||
| Other components |
Multi-layer vacuum glass observation window,cable port(50mm),controlling status indicator lamp,chamber light,specimenloading shelf(2pcs,position adjustable) |
|||||
| Safety protection device |
Overheat protection circuit breaker,compressor overload protection,control system overloadprotection,humidifying system overload protection indicator lamp |
|||||
| Power supply | AC 3phase380V 60/50Hz | |||||
| Customization service | Non-standard or special requirements are all welcome | |||||
Features of walk in stability test chamber
1. Imported high-precision microcomputer color touch screen temperature and humidity control, English switch.
2. Test hole (left side of the machine) 50mm, can be an external test power line or signal line.
3. Original European and American imports of low-noise low-noise low-temperature compressor.
4. Double high-temperature high-tensile seal between the door and the chamber, to ensure sealed.
5. Import (SUS # 304) stainless steel plate for inside and outside material the chamber.
6. Observation window with multi-layer hollow tempered glass, the inner adhesive film-type conductive film (can clearly observe the test process).
Optional Accessories:
1. Low humidity dehumidifier
2. Pass room(air lock)
3. Double-wing door (W1200*H1800cm)
4. Reverse osmosis water purifier
5. CF device
