Growth Medical Aging Equipment Environmental Temperature Humidity Climate Test Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-ZL-6004
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Set/Sets per Month
Accuracy/ Uniformly: ±0.1℃;±0.1%R.H./ ±1.0℃;±3.0%R.H. Temperature Range: -70℃~+100℃(150℃) (A:+25℃ B:0℃ C:-20℃ D:-40℃ E:-50℃ F:-60℃ G:-70℃)
Humidity Range: 20%~98%R.H.(10%-98%R.H/5%~98%R.H Is The Specific Condition) Accuracy / Volatility: ±1.0℃;±2.0%R.H./ ±0.5℃;±2.0%R.H.
Heating / Cooling Time: About 4.0℃/min;about 1.0℃/min(5~10℃/mm Is The Specific Condition) Inside Material: Stainless Steel SUS 304#
Insulation Material: High-temperature High-density Amino Acid Ethyl Ester Foam Insulation Materials, Cooling System: Air-cooled/ Single-stage Compressor(-20℃) ,wind, Water Cooled/two-stage Compressor(-40℃~-70℃)
Protection: Compressor Overload Switch, High And Low Pressure Protection Switch, Over-humidity-temperature Protection Switches, Fuses, Warning System Controller: TEMI300 Digital Controller From South Korea
Power: 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz
High Light:

SUS304 Aging Climate Test Chamber

,

Air Cooled Climate Test Chamber

,

Medical Aging Climate Test Chamber

Growth Medical Aging Equipment Environmental Temperature Humidity Climate Test Chamber

Equipment summary:

Environmental Constant Temperature Humidity Climatic Test Chamber is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.



Applicable industries:
Environmental Constant Temperature Humidity Climatic Test Chamber applied to control the product
quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals,
chemicals, building materials, aerospace, medical care and so on.

Detailed Parameters:

Model

BT-ZL-80

(A~G)

BT-ZL-150

(A~G)

BT-ZL-225

(A~G)

BT-ZL-408

(A~G)

BT-ZL-608

(A~G)

BT-ZL -800

(A~G)

BT-ZL-1000

(A~G)

Inside size WxHxD (cm) 40x50x40 50x60x50 50x75x60 60x85x80 80x95x80 100x100x80 100x100x100
Outside size WxHxD (cm) 100x170x87 105x175x97 115x190x97 135x195x115 145x185x137 145x210x130 147x210x140
Temperature range -70℃~+100℃(150℃)
(A:+25℃ B:0℃ C:-20℃ D:-40℃ E:-50℃ F:-60℃ G:-70℃)
Humidity range 20%~98%R.H.(10%-98%R.H/5%~98%R.H is the specific condition)
Accuracy/ uniformly ±0.1℃;±0.1%R.H./ ±1.0℃;±3.0%R.H.
Accuracy / volatility ±1.0℃;±2.0%R.H./ ±0.5℃;±2.0%R.H.
Heating / cooling time About 4.0℃/min;about 1.0℃/min(5~10℃/mm is the specific condition)
Inside material Stainless steel SUS 304#
Insulation material High-temperature high-density amino acid ethyl ester foam insulation materials,
Cooling system Air-cooled/ single-stage compressor(-20℃) ,wind, water cooled/two-stage compressor(-40℃~-70℃)
protection compressor overload switch, high and low pressure protection switch, over-humidity-temperature protection switches, fuses, warning system
accessories recorder(purchase),view window,50mm testing hole,PL lamp,clapboard,Dry and wet gauze ball
controller TEMI300 digital controller from South Korea
compressor France Tecumceh
power 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz

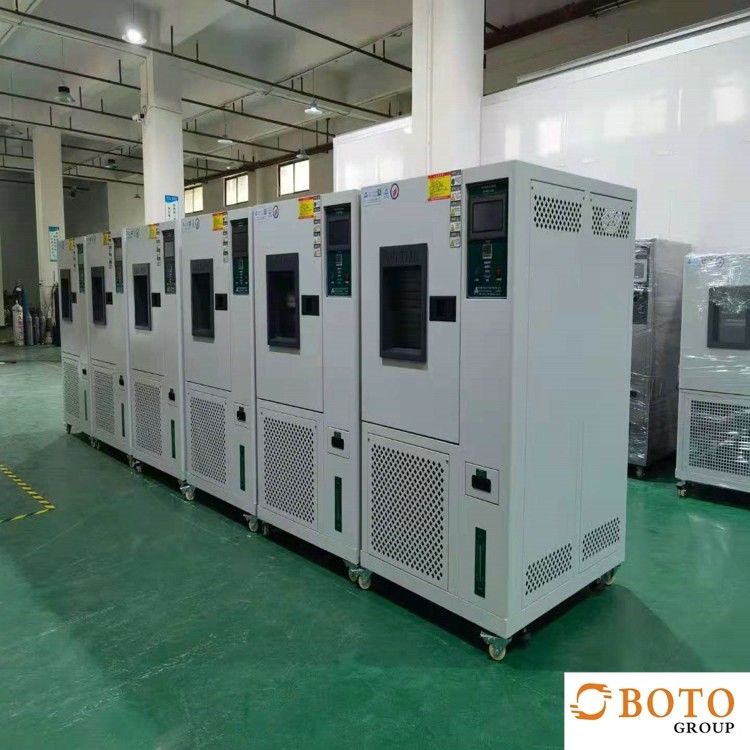

Growth Medical Aging Equipment Environmental Temperature Humidity Climate Test Chamber 0

Growth Medical Aging Equipment Environmental Temperature Humidity Climate Test Chamber 1





Features:

1.High-texture appearance, the surface handled through the matte stripes, and use of planar non-reactive handles, easy to operate, safe and reliable.
2.Rectangular complex glass window can be viewed the testing sample, windows with anti-sweat heater device that prevents water vapor condensation, and high-brightness PL light.
3.Double-insulated airtight container, which can effectively isolate the internal temperature of leakage.
4.With an external water supply system can be easy to supply water and automatically reuse.
5.Compressor circulatory system from French "Taikang", more effective removal of oil between the condenser and the capillary and use environmentally refrigerants (R23, R404, R507).
6.Controller imported LCD display screen can be displayed measuring values and setting the value and time.
7.Controller with multi-segment program edited, temperature and humidity can be controlled quickly (OUICK) or slope (SLOP).
8.Built-in mobile pulley easy to move and has a strong positioning screw fixed position


Standard:
1.International Electrotechnical Commission Standard:
IEC68-2-03_test method Ca_Steady damp-heat
IEC68-2-01_test method A_cold
IEC68-2-02_test method B_dry heat


2. Military Standards:
MIL-STD-810F-507.4 humidity
MIL-STD-810F-501.4 high temperature
MIL-STD-810F-502.4 low temperature
MIL-STD883C test method 1004.2 temperature and humidity cycling test
MIL-STD810D test method 502.2
MIL-STD810 test method 507.2 procedure 3


3. Japanese Industrial Standard:
JIS C60068-2-3-1987 test method Ca: Steady damp-heat
JIS C60068-2-2-1995 test method B:dry heat
JIS C60068-2-1-1995 test method A:low temperature


4. USA Semiconductor Industry Standard:
JESD22-A101-B-2004 Constant temperature and humidity test
JESD22-A103-C-2004 High Temperature Storage Test
JESD22-A119-2004 Low Temperature Storage Test


5. Chinese National Standard:
GB11158 Technical conditions for high-temperature testing box
GB10589-89 Technical conditions for low-temperature testing box
GB10592-89 Technical conditions for high and low temperature testing box
GB/T10586-89 technical conditions for humidity testing chamber
GB/T2423.1-2001 Low-temperature testing methods
GB/T2423.2-2001 High-temperature testing methods
GB/T2423.3-93 Testing Method for humidity Test Chamber
GB/T2423.4-93 Alternating hot and humid testing method
GB/T2423.22-2001temperature testing method


6. China's National Military Environment Test Equipment
GJB150.3 high-temperature testing
GJB150.4 low-temperature testing
GJB150.9 hot and humid condition testing

Growth Medical Aging Equipment Environmental Temperature Humidity Climate Test Chamber 2
