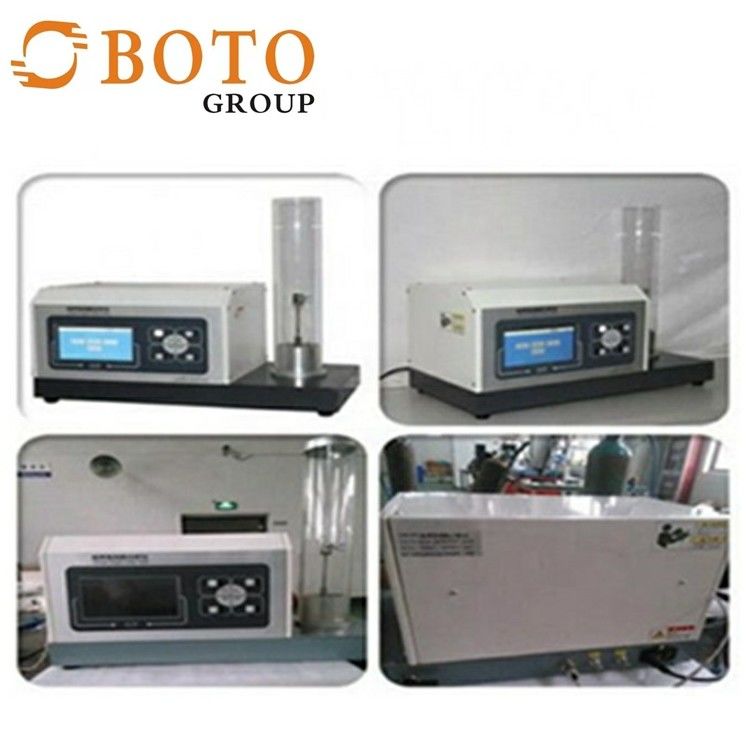

Limiting Oxygen Index Test Apparatus Electronic

Limiting Oxygen Index Test Apparatus Electronic
Limiting Oxygen Index Test Apparatus Electronic Limiting Oxygen Index Test Apparatus Electronic Limiting Oxygen Index Test Apparatus Electronic Limiting Oxygen Index Test Apparatus Electronic Limiting Oxygen Index Test Apparatus Electronic
Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-YYF031
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Set/Sets per Month
Contact Now
Power: Electronic Usage: Temperature And Humidity Test
Humidity Range: 20%~98% Product Name: Temperature Humidity Incubator
Warranty: 12 Months Application: Instrument And Other Industry
High Light:

50L/S Oxygen Index Test Apparatus

,

AC220V Oxygen Index Test Apparatus

,

ASTM D2863 Oxygen Index Test Apparatus

Limiting Oxygen Index Test Apparatus Electronic





Product Description
Limiting Oxygen Index Test Apparatus Electronic 0
Limiting Oxygen Index Test Apparatus Electronic 1
Limiting Oxygen Index Test Apparatus Electronic 2
Limiting Oxygen Index Test Apparatus Electronic 3
Limiting Oxygen Index Test Apparatus Electronic 4
Limiting Oxygen Index Test Apparatus Electronic 5
Limiting Oxygen Index Test Apparatus Electronic 6
Limiting Oxygen Index Test Apparatus Electronic 7
Limiting Oxygen Index Test Apparatus Electronic 8
Limiting Oxygen Index Test Apparatus Electronic 9
Specification
Item Name
Fully Automatic ASTM D2863 Building Material Limiting Oxygen Index Tester
Oxygen concentration measurement range
0-100%
Resolution
0.1%
Accuracy
+/-0.2%
Response time
<300ms
Oxygen stability time
<30s
Oxygen concentration sensor
England Servomex Paramagnetic type oxygen sensor, accuracy: +/-0.1%
Gas displacement
50L/S
Size
600(W)*310(D)*545(H)mm
Workbench size
1500(W)*600(D)*800(H)mm
Weight
30kg
Power supply
AC 220V, 50/60Hz, 5A

Features:

1. Adopts England original Servomex Paramagnetic type oxygen sensor, which accuracy can be up to +/-0.1%;
2. The sensor is better than traditional electrochemical sensor, because it don't need to change oxygen battery, so, it has long lift time more accurate and faster response time.
3. Equipped with 2pcs Mass Flow Controller(MFC) to control N2 and O2 mixing ratio;
4. Equipped with high temperature quartz glass tank;
5. Equipped with supported and unsupported sample clamps;
6. Equipped with portable ignition device, gas tank connector, accurate pin valve to adjust the flame;
7. Digital setting N2 and O2 concentration;
8. Computer+LABVIEW software to control N2 and O2 mixing ratio, read O2 concentration in mixing chamber, and store&print out test results;
9. Reserve a calibration port to calibrate the sensor;
10. Stainless steel air channel design, equipped with one way fire-resistance valve, magnetic valve, fine filter, so, it is stable
and safe;
11. Patented design gas mixing chamber, which ensure the gases can mix the gases in short time, data is more accurate;
