Temperature Humidity Cycling Chamber Environmental Climatic Thermal Shock Test Machine

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Set/Sets per Month
Power:: Electronic High-temperature Range:: 80℃~200℃
Inner Material:: SUS#304 Stainless Steel Heating-up Time:: 60℃~200℃ About 25min
Insulation:: High-precision Glass Wool + PU Foam Rubber Inner Box:: 50*40*50 Mm
Outer Box:: 180*200*145mm Low-temperature Range:: -55℃~-10℃
Impact Recover Time:: High-temperature(150℃)about 30min Power Supply:: AC380V±10% 3PH 50/60Hz
High Light:

SUS304 Temperature Cycling Chamber

,

AC380V Temperature Cycling Chamber

,

Environmental Thermal Shock Test Machine

Temperature Humidity Cycling Chamber Environmental Climatic Thermal Shock Test Machine





Product Description

Equipment summary:

Hot and cold impact testing machines used to test the change of material under extremely high temperature and extremely low temperature environment that continue alternation in the shortest time, Testing the chemical changes or physical damage of material caused by the thermal expansion and contraction. Testing box divided two parts, one is high-temperature region, another is low-temperature region, the testing sample placed on the moving basket, using unique heat storage and cool storage, the cylinder taking basket moves up and down in the hot and cold region to complete the hot and cold temperature impact testing; applied to test the material, including metal, plastic, rubber, electronics .... and other materials, it can be used as a basis for improvement of their products.



Applicable industries:

Widely used in aviation, military, ships, electrical, electronics, instruments and meters; medical equipment; civilian nuclear energy; colleges and universities; research laboratories; commodity inspection, arbitration, technical supervision departments; building materials ceramic; petroleum and chemical products, machine and spare parts.



Technical parameters:

Model BT-6012A
Temperature range A.high-temperature:+60℃~+150℃ (can be customized)
B.low-temperature:-10℃~-40℃;
Control temperature ±2℃;
resolution 0.01℃;
Heating time at high-temperature region RT~+150℃ about 35min(RT is from +5~+30℃).
Cooling time at low-temperature region RT~-40℃ about 50min(RT is from +5~+30℃)
Moving time and temperature recover time A. testing basket moving from high-temperature to low-temperature spend 10sec
B.after exchanging the temperature,the temperature recovery time: 3min~5min (Stabilization time ≥ 30min)
Device noise Below 75dB.
Weight 1000Kg
Testing region(hot and cold) 50cm(W)*50cm(H)*50cm(D);
Outside size 140cm(W)*180cm(H)*142cm(D)
Testing basket size 30cm(W)*40cm(H)*30cm(D)
Inside material SUS#304 Cold-Heat-resistant stainless steel
Outside material stainless steel
Insulation material High-density glass wool and high strength PU foam insulation
Anti-sweat structure insulation layer and door micro-thermal anti-sweat
Expansion Heat reach 300℃,cold reach -100 degree



Standard:

1,GB/T2423.1-1989 low-temperature testing method
2,GB/T2423.2-1989 high-temperature testing method
3,GB/T2423.22-1989 change temperature test
4,GJB150.5-86 temperature impact test
5,GJB360.7-87 temperature impact test
6,GJB367.2-87 405 temperature impact test

Temperature Humidity Cycling Chamber Environmental Climatic Thermal Shock Test Machine

Main functions:
For electrical and electronic components, automation components, communication components, auto parts, metals, chemical materials and plastics industries, defense, aerospace, military industry, BGA, PCB base plate, electronic chip, IC, semiconductor ceramic and high-Changes in the physical sacrifice of molecular materials, test the material on the high and low tension and products arrived repeated thermal expansion and contraction of output in the chemical changes or physical injury, to confirm the quality of products, from the precision of the IC component to heavy machinery , And both need it the ideal test tool.



Main features:

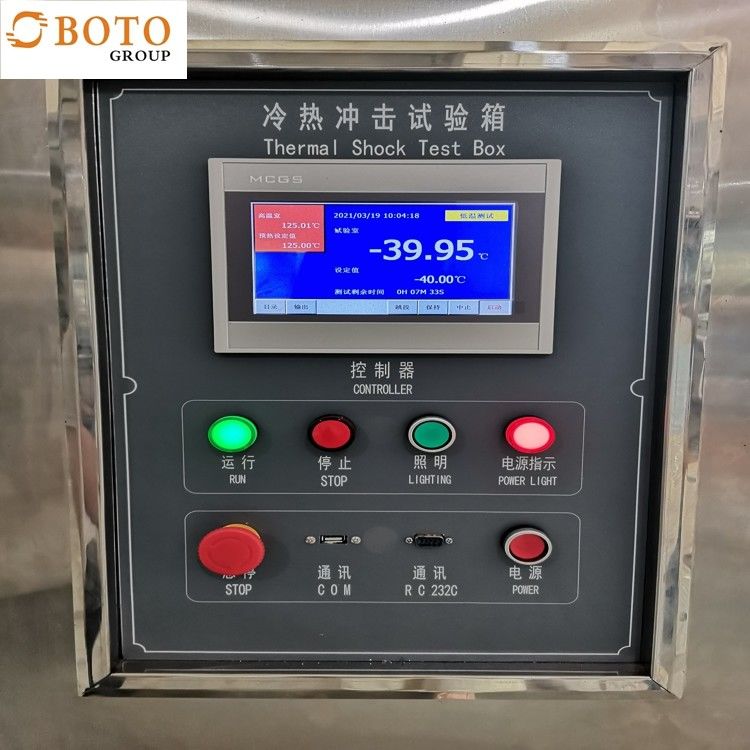

1. Large color LCD touch interactive microcomputer control system, easy to understand, running at a glance;
2. Closed imported compressor + environmental refrigerant, cold plate heat exchanger and dual-type ultra-low temperature refrigeration systems;
3. A LAN network communication interfaces to computer remote control, easy to use;
4. Independently set the heat, cold and hot and cold conditions, the impact of three different function, the impact of the implementation of hot and cold conditions, with high and low temperature testing machine functions;
5. Operation at boot time automatically make an appointment ahead of pre-cooling, preheating, standby;
6. Defrost cycles can be set and the number of automatic (manual) defrost;
7. Controller friendly interface and easy procedure setting, abnormal and troubleshooting display complete.

Temperature Humidity Cycling Chamber Environmental Climatic Thermal Shock Test Machine



Company introduction



BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.





Temperature Humidity Cycling Chamber Environmental Climatic Thermal Shock Test Machine 2

Temperature Humidity Cycling Chamber Environmental Climatic Thermal Shock Test Machine 3



Main equipment include:



 Temperature Humidity Cycling Chamber Environmental Climatic Thermal Shock Test Machine 4



In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.



Main market:

Temperature Humidity Cycling Chamber Environmental Climatic Thermal Shock Test Machine 5



The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.





Production Details



Temperature Humidity Cycling Chamber Environmental Climatic Thermal Shock Test Machine 6



Temperature Humidity Cycling Chamber Environmental Climatic Thermal Shock Test Machine 7



Workshop machine:



Temperature Humidity Cycling Chamber Environmental Climatic Thermal Shock Test Machine 8



Certification

Temperature Humidity Cycling Chamber Environmental Climatic Thermal Shock Test Machine 9



Cooperative partners



Temperature Humidity Cycling Chamber Environmental Climatic Thermal Shock Test Machine 10
