Salt Spray Testing Chamber With Temperature Control Salt Spray Tester Corrosion Test Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-PJ-JK-90
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Sets per Month
Salt (PH):: 6.5~7.2 Internal Dimensions:: 90*60*50CM
Box Temperature:: RT To +50℃, ±1℃ Model:: PJ-JK-90,120 Or Customize
Spray Pressure:: 70~170Kpa Power:: Electronic
Brine Tank Capacity:: 25L Power Supply:: 220V 50Hz
Air Pressure:: 1.00±0.01kgf/cm*cm Weight:: 60kg
Test Time:: 1~999(S,M,H)adjustable
High Light:

170Kpa Salt Spray Testing Chamber

,

25L Temperature Control Salt Spray Tester

,

220V Corrosion Test Chamber

Salt Spray Testing Chamber With Temperature Control Salt Spray Tester Corrosion Test Chamber





Products Description
Salt Spray Cycling Test Chamber can be used to simulated condition that more often meet at natural environment, and then deteriorated the natural environment to be tested, such as the salt spray, dry, wet, room temperature, low temperature
environment, it is used to test the anti-erosion quality of the surface of all materials after the rust-proof of painting,
coating, electroplating, anoding and rust-proof of greasing.anti corrosion treatment for a variety of materials, corrosion
resistance of their products.

Features:
1. Adopt automatically add water system, can watered by itself while lack of water.
2. Precise glass spray nozzle, good uniformity, mist dropping naturally, no Na-Cl crystallized salt.
3. Double over-heat protection devise and alarm when water short storage to ensure use safety.
4. Digitally temperature controller, PID controlled.
5. Tapered Spray tower, even mist dropping.
6. Applicable fields including automobile parts, aviation equipment, photographic equipment, building materials, electricity,
electrical and electronic systems.
7. Comply with ASTM B-287, JIS D-0205, H-8681, Z-2371, K-5400,etc.

Technical Parameters:
Product Model
BT-PJ-JK-60
BT-PJ-JK-90
BT-PJ-JK-120
customi-zable
Volume(L)
108
270
480
Internal Size
W×H×W(mm)
600×400×450
900×500×600
1200×500×800
External Size
W×H×W(mm)
1150×1090×672
1450×1200×842
2080×1285×1240
Performance Index
Temperature Range
LaboratoryTemperature Range :RT~50℃
Saturated air barrelTemperature Range :RT~63℃
Temperature Deviation
±1.0℃
Temperature Uniformity
≤2.0℃
Temperature Fluctuation
±0.5℃
Heating Rate
Test Room RT→+50℃≤60 min
Pressure Barrel RT→+63℃≤60 min
Salt fog deposition
1~2ml/80 square meter (At least 16 hours were collected and averaged)
Spray Pressure
70~170Kpa
Spraying Mode
Continuous spray
Test time
1~999(S,M,H)adjustable
PH
6.5~7.2 3.0~3.2
Main Part
Control System
temperature controller
PT100 thermocouple (armor), PID control
Spraying System

The Nozzle is made of special glass material, the size and angle of spray can be controlled

operate manual spray or set automatic spray according to program
Structural Features
Material Enclosure
Imported PVC polyethylene board is adopted
Medicament refill cylinder
hidden type supplementary water gauge
Pressurized air drum
SUS304# stainless steel high-pressure barrel
Test Rack

The plane indexing frame can be used to adjust the Angle of fog falling or being foggy at any direction

Cover Material
imported European acrylic board
Spray Tower
air atomizing nozzle, height can be adjusted
Spray volume collector
Cone funnel with diameter of 100mm
Heating System
Titanium alloy heat pipe, steam heating, P.I.D. control heating
Brine Tank
Made of PVC board
Saturated air barrel
SUS304 Stainless
Drain line
acid and alkali resistant PVC piping
Heater

Titanium alloy armored electric heating tube (test chamber bottom heating)
SUS316# stainless steel armoured heating tube (saturation barrel)

Standard Fittings

1 set of nozzles, 2 fog collecting and measuring cylinders, 2 fog collecting collectors, etc.

Safty Device
Leakage, short circuit, motor overheating, overload, over current protection
Supply Voltage
AC220V 50Hz
Environment Requirement
Temperature 5.0~+30.0℃,Humidity≤85%RH,Air Pressure 86Kpa~106Kpa
Details Images

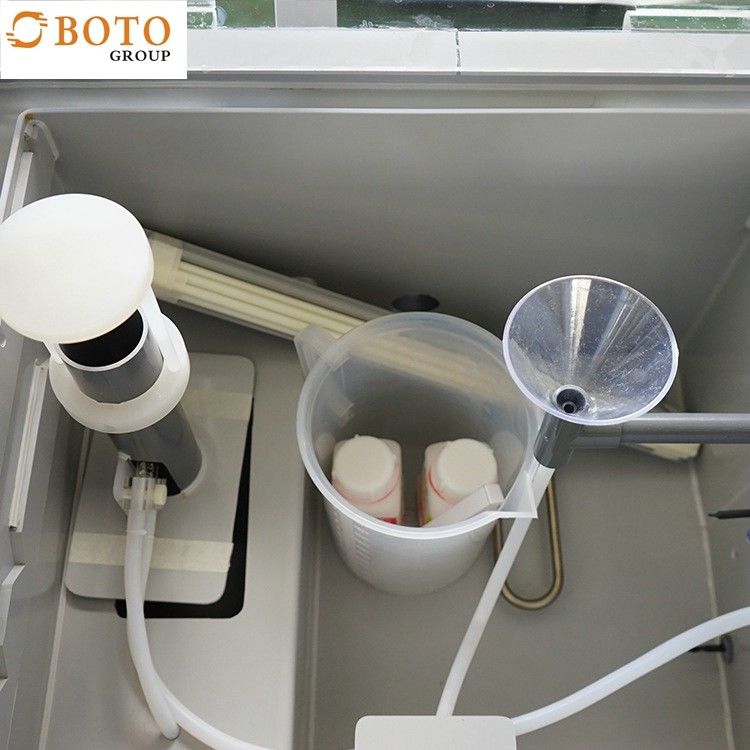

Salt Spray Testing Chamber With Temperature Control Salt Spray Tester Corrosion Test Chamber 0
Salt Spray Testing Chamber With Temperature Control Salt Spray Tester Corrosion Test Chamber 1
Salt Spray Testing Chamber With Temperature Control Salt Spray Tester Corrosion Test Chamber 2
Salt Spray Testing Chamber With Temperature Control Salt Spray Tester Corrosion Test Chamber 3
Salt Spray Testing Chamber With Temperature Control Salt Spray Tester Corrosion Test Chamber 4
