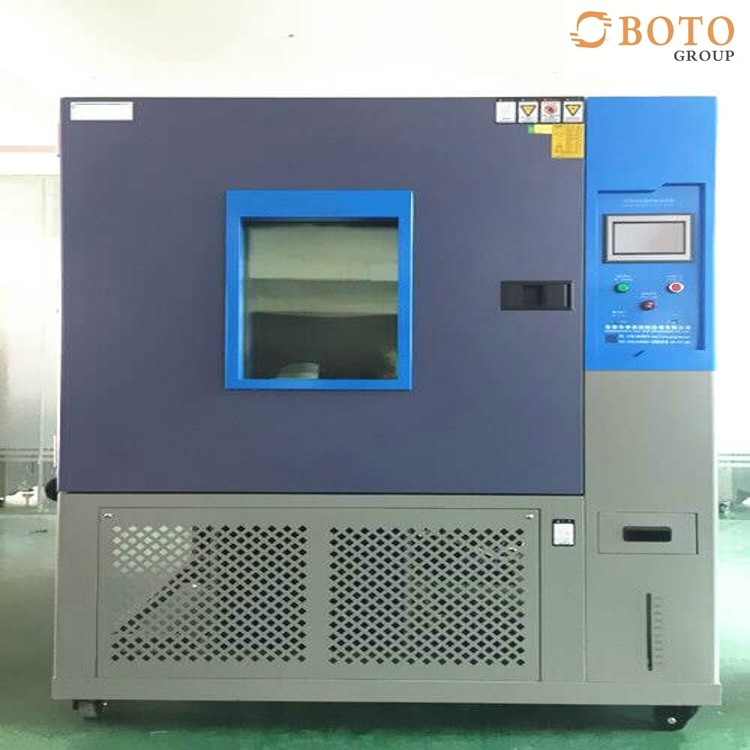

Climate Test Cabinet Humidity And Temperature Control Cabinets Programmable Environmental Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-TMAX-80(A~F)
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Set/Sets per Month
Internal Dimension WxHxD (mm): 400x500x400 External Dimension WxHxD (mm): 950x1650x950
TemperatureRange: Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 150°C The Temperature Range Can Be Customized HumidityRange: 20%~98%R.H (can Be Customized)
Analytic Accuracy/ Distribution Uniformity Of Temperature And Humidity: 0.1°C; 0.1% R.H/±2.0°C; ±3.0% R.H.
High Light:

SUS304 Programmable Environmental Test Chambers

,

98%RH Programmable Environmental Test Chambers

,

ISO Programmable Environmental Test Chambers

Climate Test Cabinet Humidity And Temperature Control Cabinets Programmable Environmental Chamber





Temperature humidity test chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.



Temperature and humidity testing help to determine the behavior of the components in severe test conditions and environments that involve fluctuatingenvironment, high temperature, and different relative humidity. The tests can be done with constant temperature and humidity in a static state and can bedone in a dynamic state where the moisture is used to induce a failure of the components or materials.



Main Features

1. The constant temperature and humidity test box is mainly composed of control panel, distribution panel, insulation layer, air supply fan, heater, humidifier and refrigeration unit. The main specifications can be divided into 6 standard sizes and 10 specifications under different conditions.

2. The controller can be connected to the computer through LAN interface. Users can design programs on the computer screen, collect test data and records, call program execution, remote control machine switch and other functions.

3. The use of multi-wing air supply fan strong air circulation, to avoid any dead angle, so that indoor temperature and humidity distribution is uniform.



4. Complete safety protection device, if abnormal conditions occur, the controller screen will automatically display the fault status, cut off the power switch, and provide troubleshooting methods.





Model Available

Model TMAX-80(A~F) TMAX-150(A~F) TMAX-225(A~F) TMAX-408(A~F) TMAX-800(A~F) TMAX-1000(A~F)
Internal Dimension
WxHxD (mm)
400x500x400 500x600x500 600x750x500 600x850x800 1000x1000x800 1000x1000x1000
Internal Dimension WxHxD (mm) 950x1650x950 1050x1750x1050 1200x1900x1150 1200x1950x1350 1600x2000x1450 1600x2100x1450
TemperatureRange

Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C)

High Temperature 150°C

The temperature range can be customized



HumidityRange 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need Dehumidifier)
Analytic Accuracy/
Distribution uniformity of
temperature and humidity
0.1°C; 0.1% R.H/±2.0°C; ±3.0% R.H.







A.Testing Parameter

Temperature range -60℃~+150 ℃(Air-cooled type)
Humidity range

20%-98% RH (the distribution range is as follows)



The cooling rate (no-load) About 1℃/min
The heating rate (no load) About 3℃/min
Temperature stability ±0.5℃
Analytical accuracy of temperature 0.01℃
Precision of humidity control ±2%R.H
Temperature uniformity ±2.0℃
Humidity uniformity ≤±3%R.H(+2,-3%RH)
Working noise A sound level is less than 75 dB (A) (measured in a soundproof room with 25 C ambient temperature and less echo; measured the average value of 8 points by A weighting; measured the level of each test point is 1 metre from the noise source and the height is 1 metre from the ground).



B.Machine Structure

Material of inner and outer boxes SUS # 304
Outer box light source High brightness lamp
Structural design of stratosphere Effective avoidance of condensation at the top of the box
Observation Window Observation sample use (W*L 28*35 cm)
Anti-sweat design of windows Electrical heating device to prevent condensation of water and gas (40 W)

Test Holes



Can be used for connect external test power cord and signal (diameter 50 mm)
Machine pulley Pulleys are movable and positioned with strong bolts (200Kg/wheel)
Insulation Layer

Rigid polyurethane foam

(its advantages are:

1. High efficiency and energy saving, seamless after filling, strong bonding after curing.

2. Seismic and compressive resistance, no cracking, no decay, no falling off after solidification.

3. It has ultra-low temperature heat conductivity, weather resistance and heat preservation.

4. High efficiency insulation, sound insulation, waterproof and moisture-proof after curing.

5. waterproof performance is good, because the foam hole is closed, the sealing rate is 95%, and the rainwater will not permeate through the hole.

Inner rack Movable adjustable grids and two stainless steel strip grids (5.0 cm per grille)

Box door



Double-channel heat insulation and tight gas to effectively isolate external temperature leakage



C.Safety Protection System

Leakage/Surge Protection FUSE. RC electronic surge protection for leakage circuit breakers
Internal self-automatic detection and protection device of controller

1. Data transmission detection between microcomputers

2. Temperature/Humidity Sensor→ circuit break or short circuit (+/- OVER)

3. Layer 1 high/low temperature over-temperature protection → Settings for operation control high and low temperature over-temperature protection

Fault Detection and Control Interface(Automatic Detection and Protection Device for External Faults)

1. High Temperature Overtemperature Protection of the Second Layer→Electronic high temperature overtemperature protection device

2. Layer 3 High Temperature Overtemperature Protection→High temperature overtemperature protection device

3. Protection of water-cut incineration→Humidity water cut-off protection and electric heat water cut-off air incineration protection

4. Compressor protection→Refrigerant pressure protection and overload protection.

5. Extended Protective Device→Reserve two sets of fault detection input expansion protection devices for use.

Fault Abnormal Protection Cut off control power supply and fault reason indication and alarm output signal when abnormal fault occurs.
Active Water Shortage Indicator Initiative prompt for lack of water on machine.
Dynamic High and Low Temperature Protection Dynamic adjustment of high and low temperature protection value with setting conditions.
Normal Temperature Protection After shutdown, the test area of the machine will be protected automatically by lowering to the normal temperature.



D.Refrigeration system

Control Mode



1. The control system automatically adjusts the operation of the refrigerator according to the test conditions, so that the equipment is in the best energy-saving condition.

2. The refrigeration capacity of the evaporator is switched by the solenoid valve driven by the control system.

3. Compressor return air cooling circuit.

Working Methods

The first-order compression is adopted for the 0 ~40℃ model.

Binary cascade refrigeration is adopted at 40 ~70℃.

Refrigeration Compressor The original imported French Taikang fully enclosed low noise rotor compressor.
Refrigerant R404a/R23 (ozone depletion index is 0, R23 is used in cascade refrigeration system).
Condenser

Air-cooled: Finned tube heat exchanger.

Water-cooled: shell-and-tube heat exchanger.

Evaporator Finned tube heat exchanger (also used as dehumidifier).
Plate heat exchanger



Stainless steel brazed plate heat exchanger (cascade refrigeration system used).

Throttling Device Expansion valve + capillary.





Packaging & Shipping
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:
15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.

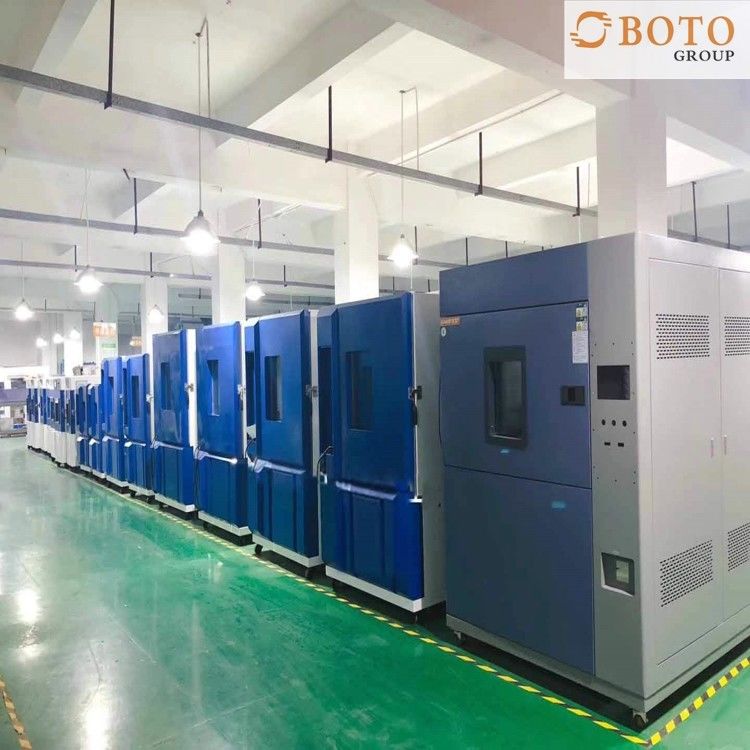

Comapny profile
