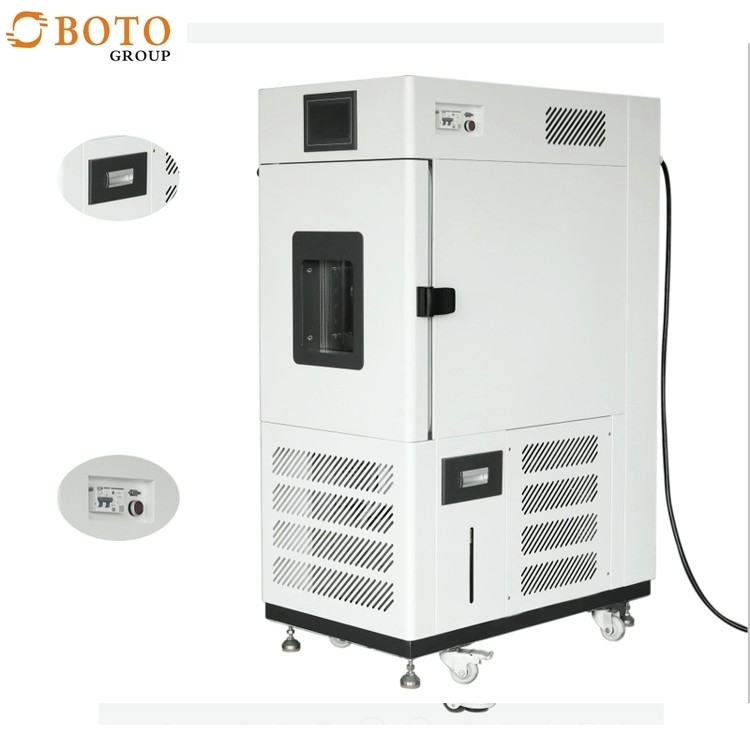

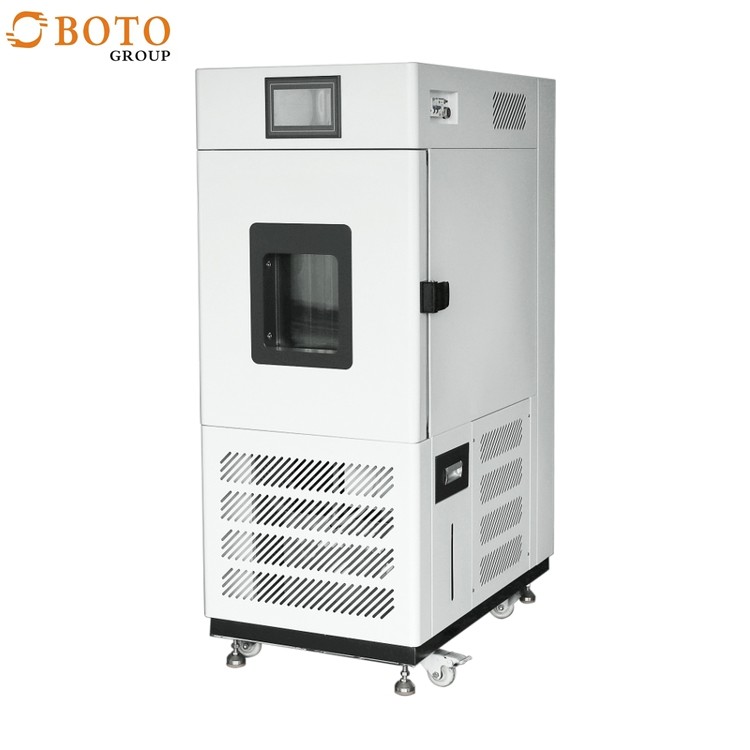

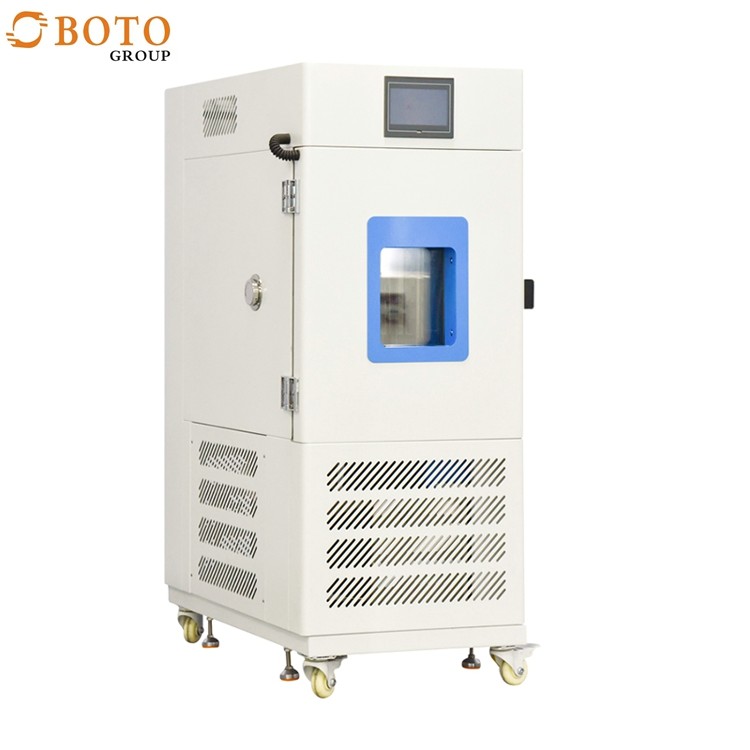

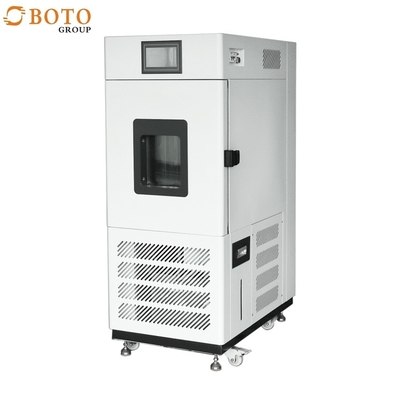

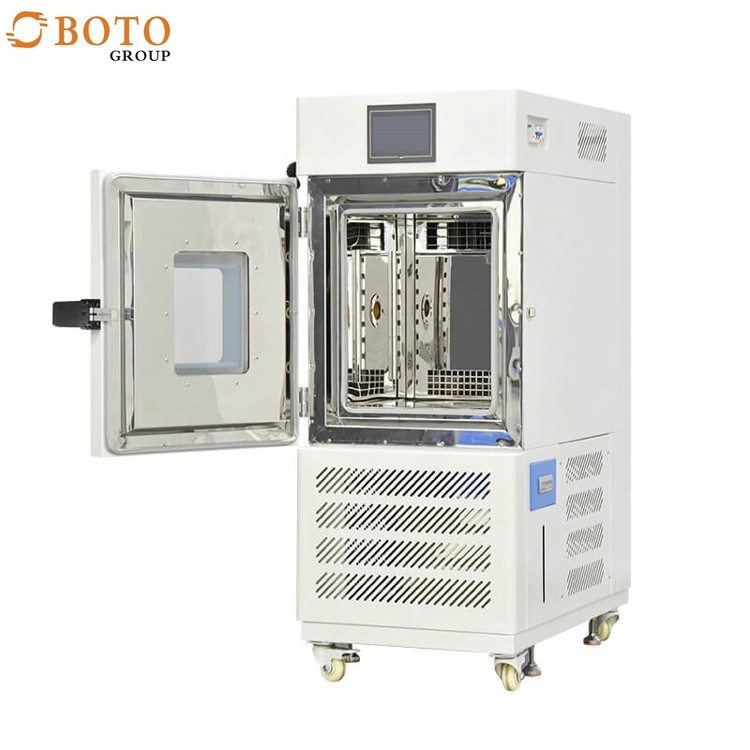

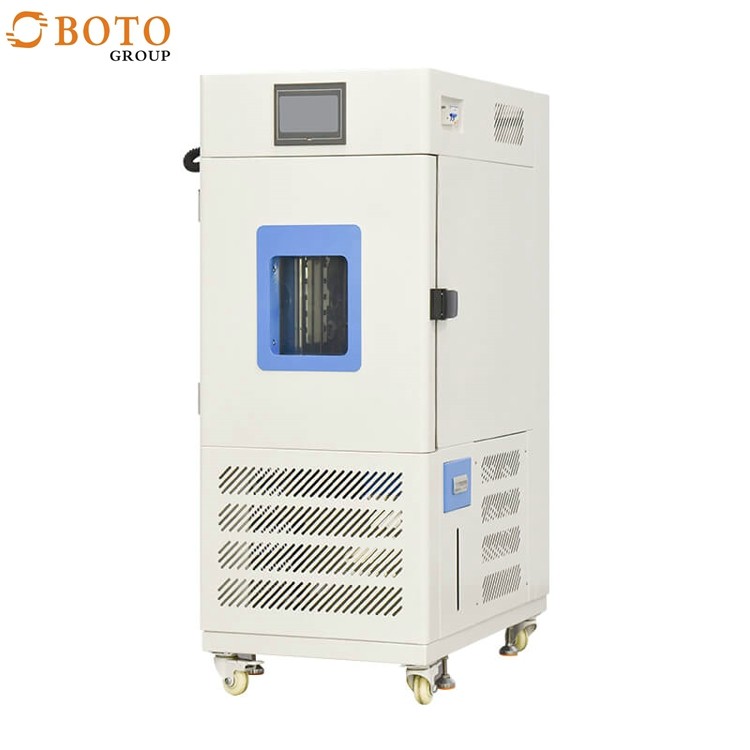

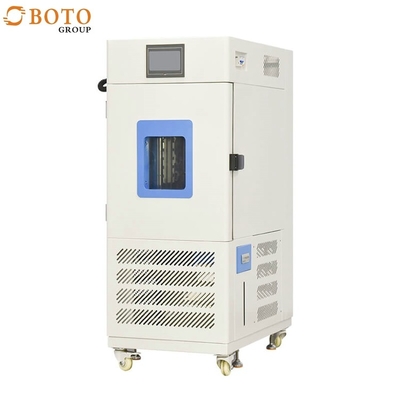

Mini Climate Cabinet Environment Test Chamber

Mini Climate Cabinet Environment Test Chamber
Mini Climate Cabinet Environment Test Chamber Mini Climate Cabinet Environment Test Chamber Mini Climate Cabinet Environment Test Chamber Mini Climate Cabinet Environment Test Chamber Mini Climate Cabinet Environment Test Chamber
Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-LY-280
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Set/Sets per Month
Contact Now
Inner Size W×H×D(cm): 40×50×40 Outside Size W×H×D(cm): 93×155×95
Volume (V): 80 L Temp And Hum Range: A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C RH20%-98%
Fluctuation: ±0.5°C ±2.5%RH Deviation: ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH)
Controller Analytical Accuracy: ±0.3°C ±2.5%RH Wind Cycling Way: Centrifugal Fan-broadband Type Forced Air Circulation
Refrigeration Way: Single Stage Compression Refrigeration Refrigerator: French Tecumseh
Refrigerants: R4O4A USA DuPont Environmental Protection Refrigerant(R23+R404) Condensing Way: Air-cooled Or Water-cooled
Heater: Nickel Chrome Heating Wire Heater Humidifier: Semi-closed Steam And Wet
Water Supplying Way: Automatic Cycling Water Supply
Highlight:

Climate Environment Test Chamber

,

80L Environment Test Chamber

,

R4O4A Environment Test Chamber

Mini Climate Cabinet Environment Test Chamber





Product Description



BOTO Temperature Humidity Test Equipment is used to test the material characteristic for wire type, skin type, plastic, rubber, cloth, Equiped with a special ventilation regulator for maintain the fresh air inside when heating. This testing machine design with sophisticated air-displacement adjustment device and a digital voltage meter, current meter, watt-hours, the timer can be used to measure the air replacement rate. Horizontal circulatory air supply system and both sides of airflow regulator to ensure the internal temperature uniformity and stability.

Standards
GB/T2423.3-93
GB/T2423.4-93
GB/T2423.22-2001
IEC60068-2-1.1990
MIL-STD-810F-507.4
MIL-STD883C 1004.2
JIS C60068-2-3-1987
IEC68-2-03
ASTM D1735
JESD22-A101-B-2004
JESD22-A103-C-2004
JESD22-A119-2004
Specifications



Model BT-LY-280 BT-LY-2150 BT-LY-2225 BT-LY-2408 BT-LY-2800

Inner Size

W×H×D(cm)

 40×50×40 50×60×50 50×75×60 60×85×80 100×100×80

Outside Size

W×H×D(cm)

 93×155×95 100×148×106 117×166×91 140×176×101 170×186×111
Volume (V) 80 L 150L 225L 408L 800L
Temp and Hum Range

A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C

RH20%-98%
Function Fluctuation ±0.5°C ±2.5%RH
Deviation ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH)

Controller

Analytical

Accuracy

 ±0.3°C ±2.5%RH
Wind Cycling Way Centrifugal fan-broadband type forced air circulation
Refrigeration Way Single stage compression refrigeration
Refrigerator French Tecumseh
Refrigerants R4O4A USA DuPont environmental protection refrigerant(R23+R404)
Condensing Way Air-cooled or water-cooled
Heater Nickel chrome heating wire heater
Humidifier Semi-closed steam and wet
Water Supplying Way Automatic cycling water supply



Mini Climate Cabinet Environment Test Chamber 0

Production Process

Mini Climate Cabinet Environment Test Chamber 1



Company introduction

Mini Climate Cabinet Environment Test Chamber 2

Mini Climate Cabinet Environment Test Chamber 3Mini Climate Cabinet Environment Test Chamber 4

Customer case



Mini Climate Cabinet Environment Test Chamber 5



Shipping and delivery

Mini Climate Cabinet Environment Test Chamber 6
