Lab Environmental Programmable High Temperature Humidity Test Thermal Chamber For Climatic Simulation
Description:

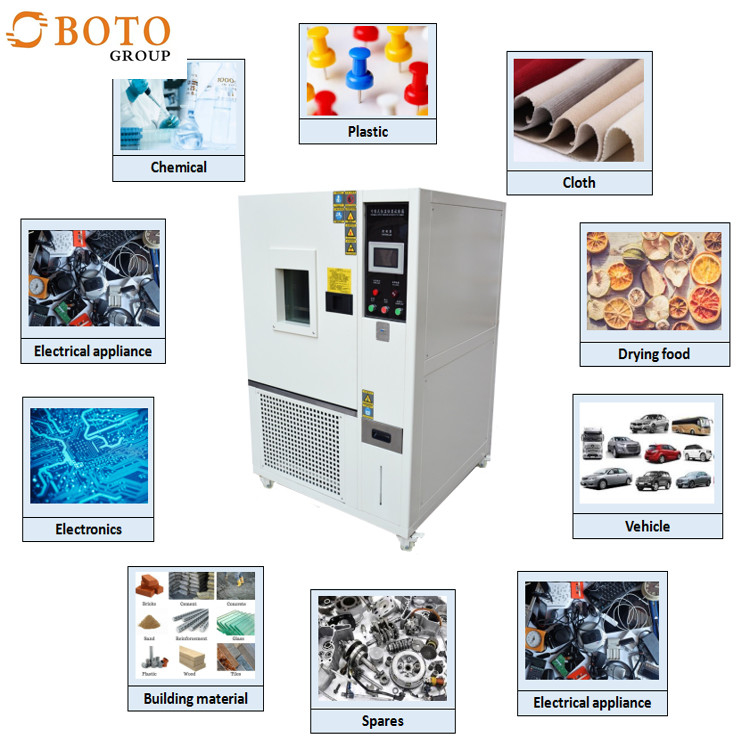

The temperature and humidity test chamber can accurately simulate the complex natural environment of low temperature, high temperature, high humidity, low temperature and low humidity, which is suitable for the product detection of plastics, electronics, food, clothing, vehicles, metals, chemicals, building materials and other industries.
Test Standard:
1. GB2423.1-2008/ IEC6008-2-1-2007
2. GB / T 2423.2-2008
3. GJB150.3 A - 2009
4. GJB150.4A - 2009
5. GB2423.22-2008 _ _ _
6. GBT 2424.5-2006
7. GB / T 10589-2008
8. GB /T 2423.3-2008 ( IEC68-2-3 )

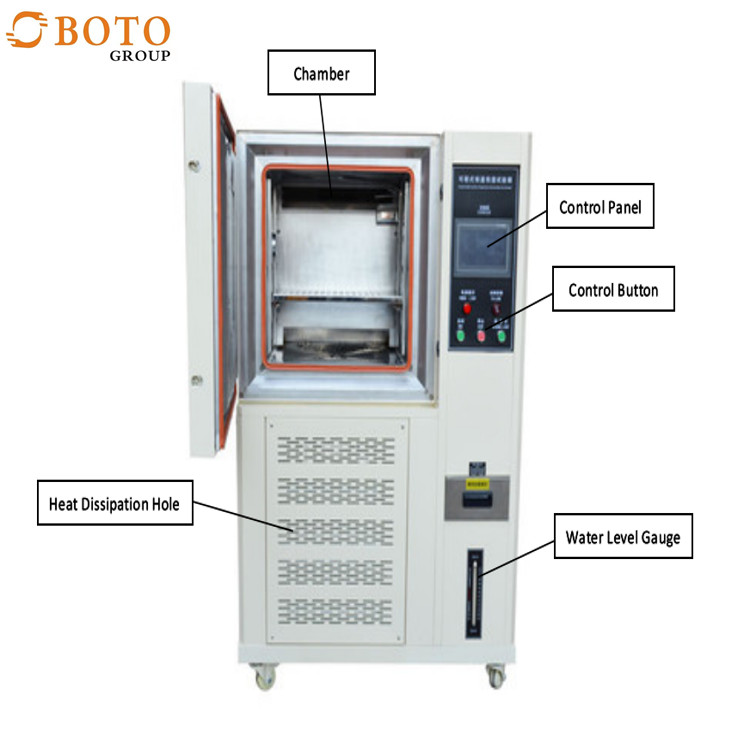

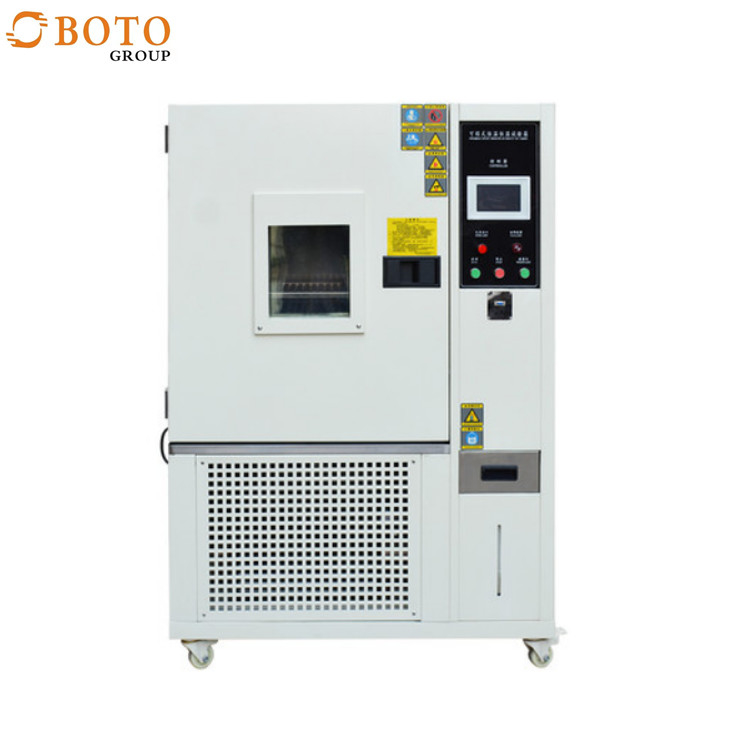

Product introduction
LFZ-CTHP Series of constant temperature and humidity testing chamber are mainly used to simulate the harsh high temperature and low temperature that may be encountered during transportation, storage and use of electronic instruments, new materials, electricians, vehicles, metals, electronic products, aerospace materials, etc. Or humid and heat environment; or high temperature, low temperature, humid and heat alternating environment, inspection materials, accessories or equipment are resistant to high temperature, cold, humidity and heat, and may cause damage to life reduction, etc.
Reliability test equipment research and development software

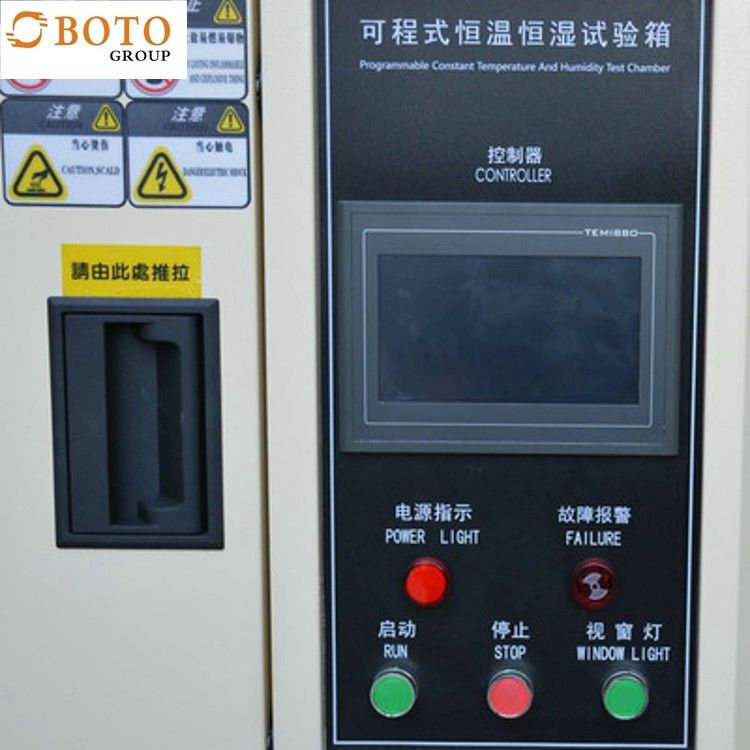

• 7-inch high-resolution large-screen display, rich in information; 32-bit high-performance processor, fast computing speed;
• 24-bit high-performance AD, supports thermocouple, thermal resistance input, high measurement resolution, supports up to 4 temperature inputs; adaptive fuzzy control algorithm, suitable for full-area control;
• Two-level permission settings, convenient for users and manufacturers;
• Universal programmable IO points, 8-way DI input, 10-way relay output, convenient for manufacturers to configure the system according to their needs.

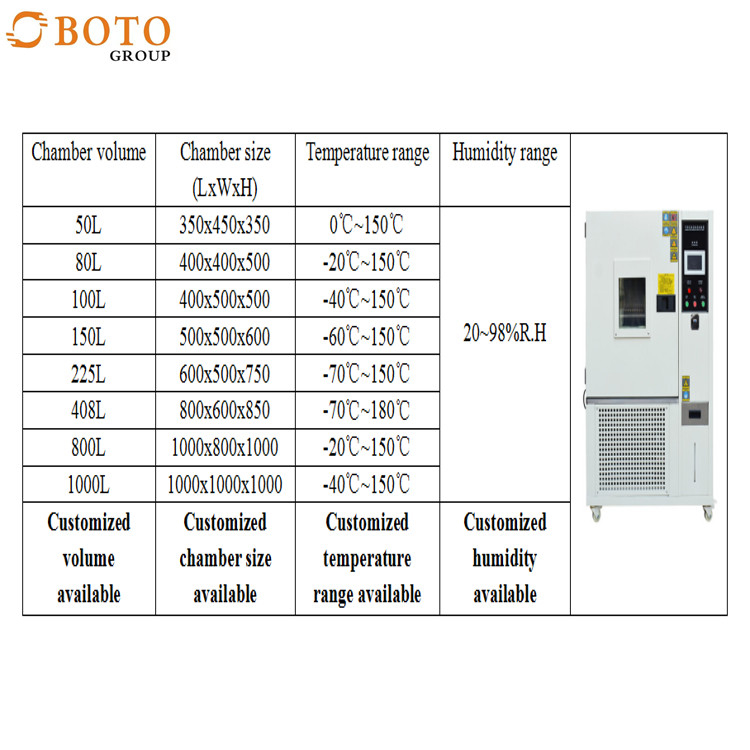

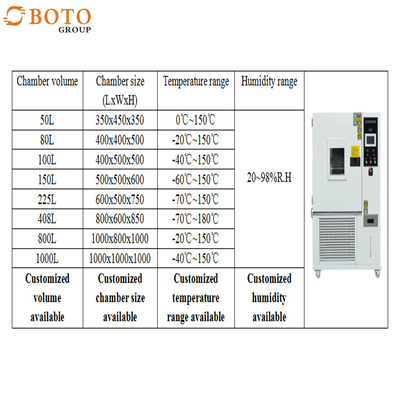

| (Model) |
dry heat |
B-T-120(A~E) |
B-T-225(A~E) |
B-T-504(A~E) |
B-T-1000(A~E) |
| damp and hot |
B-T-120(A~E) |
B-T-225(A~E) |
B-T-504(A~E) |
B-T-1000(A~E) |
| Internal Dim |
45x60x45 |
60x75x50 |
70x90x80 |
100x100x100 |
| External Dim(W*H*D) |
75X189X110 |
90X177X130 |
100X180X103 |
130X190X123 |
| Relative Humidity |
20%~98%RH |
| heat-up time |
About3~5℃/min |
| Pull down time |
About0.7~1℃/min |
| Temp Fluctudtiont |
±0.5℃ |
| Temp Uniformity |
±1.0℃ |
| Temp&Humi.Deviation |
±1.0℃/±3.0℃RH |
| Interior |
SUS#304Stainless steel plate |
| Exterior |
Coating or SUS#304Stainless steel plate |
| Power Source |
AV:220V/380V 50/60Hz |
| Power(KW) |
2KW~6.5KW |
2.5KW~7KW |
3KW~8KW |
4KW~10KW |
Our company:
Packing/shipping:
Intimate voltage
serviceConsiderate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance
indicator.
Excellent After sale Service
12 months warranty. Besides, we can help you to repair your problem controller freely, Free
replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
