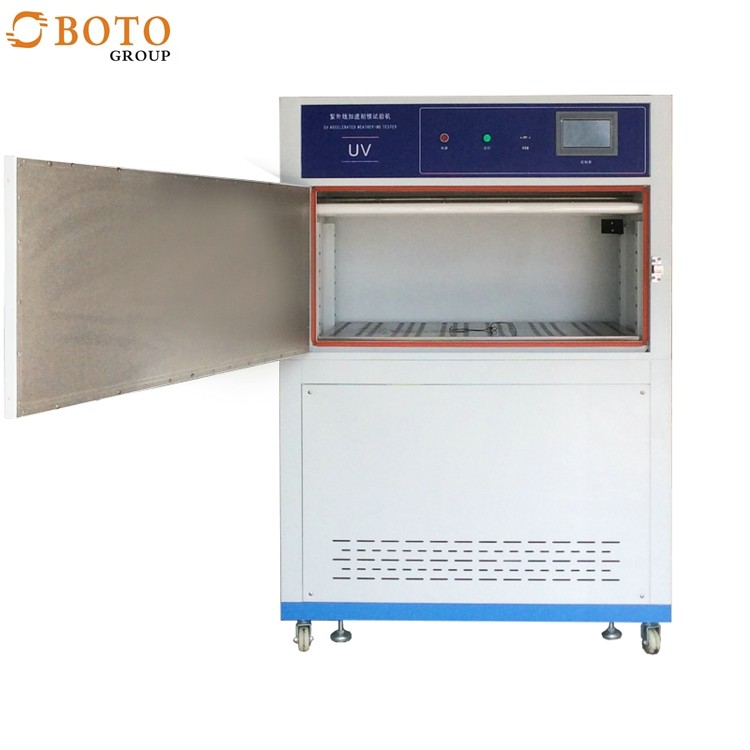

UV Aging Chamber/UV Tester/UV Accelerated Weathering Test Equipment

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-HJ-1020/BT-HJ-1021
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Sets per Month
Studio Size: W1170*H450*D500mm Outside Dimension: W1300×H550×D1480mm
Temperature Range: RT+10~70°C Temperature Uniformity: ±2°C
Temperature Fluctuation: ±0.5°C Wavelength Ultraviolet Light: UV-A: 315-400nm; UV-B: 280-315nm (8pcs, 1600h Lifetime)
Testing Time: 0~999H, Adjustable Materials: Inside And Outside SUS#304 Stainless Steel
Humidity Range: ≥90%RH Lamp Power: 40W/Piece
Irradiance: 1.0W/m2 Distance From Sample To Lamp: 50±2mm (adjustable)
Power: 220V/50Hz /±10% 4.5KW
High Light:

Accelerated Weathering Uv Aging Test Chamber

,

SUS304 Uv Aging Test Chamber

,

400nm Uv Aging Test Chamber

UV Aging Chamber/UV Tester/UV Accelerated Weathering Test Equipment





Product Description

The main function

The UV-accelerated aging test chamber uses imported UVA-340 fluorescent UV light as a light source to simulate the damage caused by sunlight, rain and dew. The UV weatherproof box uses a fluorescent UV lamp to simulate the effect of sunlight, and uses condensed moisture to simulate dew.



The material to be tested is placed in a cyclical program of alternating light and moisture at a certain temperature to accelerate the weathering test of the material to obtain the weather resistance of the material. The UV box can reproduce the hazards of outdoor months or years in days or weeks. Types of hazards include: fading, discoloration, loss of light, powdering, cracking, turbidity, air bubbles, embrittlement, strength, decay, and oxidation. This machine contains a shower device.





Technical parameter

Model HY-1020 HY-1021
Studio Size W1170*H450*D500mm W1150 X H400 x D400mm
Outside dimension W1300×H550×D1480mm W1400 X H1450 x D650mm
Temperature range RT+10~70°C
Temperature uniformity ±2°C
Temperature fluctuation ±0.5°C
Wavelength ultraviolet light UV-A: 315-400nm; UV-B: 280-315nm (8pcs, 1600h lifetime)
Testing time 0~999H, adjustable
Materials Inside and Outside SUS#304 stainless steel
Humidity range ≥90%RH
Lamp power 40W/Piece
Irradiance 1.0W/m2
Distance from sample to lamp 50±2mm (adjustable)
Power 220V/50Hz /±10% 4.5KW



UV Aging Chamber/UV Tester/UV Accelerated Weathering Test Equipment 0

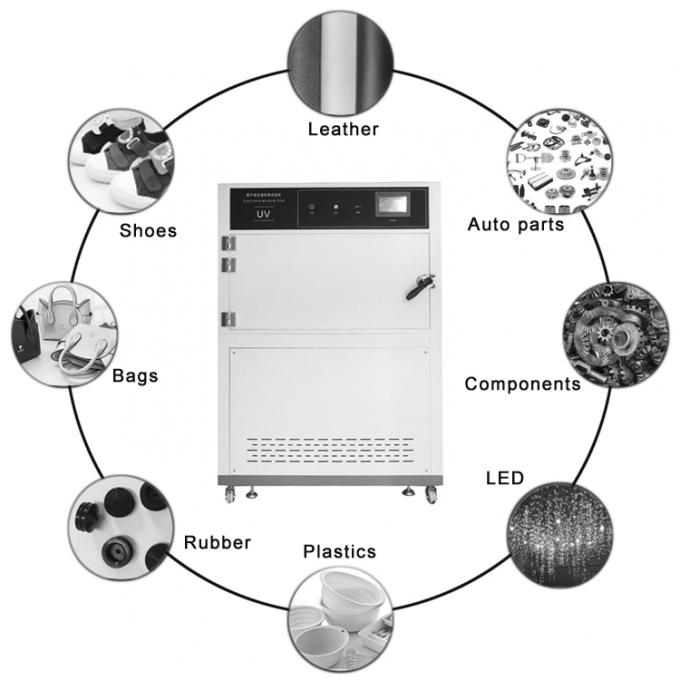

Applicable industries:
It is widely used in paint, resins, plastics, rubber,printing and packaging, aluminum, adhesives, auto, cosmetics, metals, electronics, electroplating, medicine, etc.



In line with international standards:

ASTM G 153, ASTM G 154, ASTM D 4329, ASTM D 4799, ASTM D 4587, SAE, J2020, ISO 4892 All current UV aging test standards.

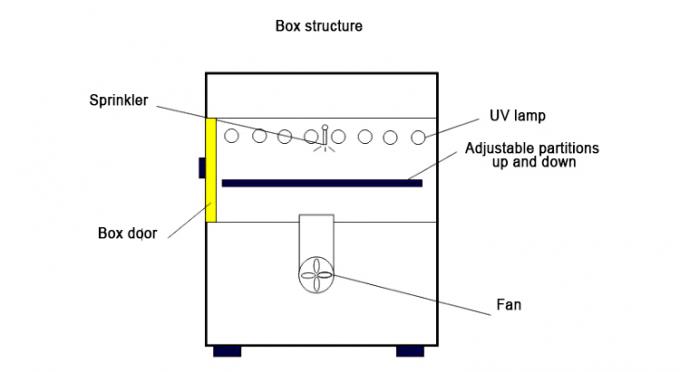

Light source:

The light source uses 8 imported UV fluorescent lamps with a rated power of 40W as the light source. Ultraviolet fluorescent tubes are distributed on both sides of the machine, 4 on each side.



There are UVA-340 and UVB-313 light sources for users to choose from. The luminescence spectrum energy of the UVA-340 lamp is mainly concentrated at the wavelength of 340 nm, and the luminescence spectrum of the UVB-313 lamp is mainly concentrated near the wavelength of 313 nm.



We use UVA-340 lamps because the fluorescent light energy output will gradually decay with time. In order to reduce the impact of the test due to the attenuation of light energy, this test chamber is 1/4 of all eight lamps. In the life of a fluorescent lamp, an old lamp is replaced by a new lamp, so that the ultraviolet source is always composed of a new lamp and an old lamp, thereby obtaining a constant output of light energy. The effective life of the lamp can be 1600 hours

UV Aging Chamber/UV Tester/UV Accelerated Weathering Test Equipment

UV Aging Chamber/UV Tester/UV Accelerated Weathering Test EquipmentUV Aging Chamber/UV Tester/UV Accelerated Weathering Test Equipment
