BOTO 50L 60L 80L 100L 150L 200L Lab Electronic Temperature Semiconductors Chips Parts Thermal Shock Environment Test Ch

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: bt-xb-olt-50
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Sets per Month
Inner Size WxHxD(cm): 36×40×35 External Size WxHxD(cm): 138x180x155
Shock Temperature Ragne: -65°C~150°C Heating Up Time: RT~200°C About 35min
Cooling Down Time: RT~-70°C About 90min Temp Recover Time/change Time: ≤5min / ≤10sec
Temp Control Accuracy/ Distribution Accuracy: ±0.5°C / ±2.0°C Inner Materials: SUS 304# Stainless Steel Plate For Inner Chamber,and Stainless Steel Plate + Spray Painting For External Chamber.
Insulation Materials: High-temperature High-density Amino Acid Ethyl Ester Foam Insulator Material. SYSTEM: P.I.D+S.S.R+Microcomputer Balanced Temperature Control System.
Cooling System: Semi-hermetic Two-stage Compressor (water-cooled) / Hermetic Two-stage Compressor (air-cooled). Safety Devices: Fuse Switch, High And Low Pressure Protection Switch Compressors, Refrigerant Pressure Protection Switch Failure Warning System, Electronic Siren.
Fitting: Outlook Window (special Purchase), The Upper And Lower Adjustable Compartment Two Energized Measured Line Hole, Casters,level Bracket. Power: 3 Phase AC108V-380V 50HZ/60HZ
Controller: Taiwan TATO Or TH900C Compressor: Germany Bitzer Brand
High Light:

200L Lab Environmental Test Chambers

,

SUS304 Lab Environmental Test Chambers

,

Environmental Test Chambers ASTM D1735

BOTO 50L 60L 80L 100L 150L 200L Lab Electronic Temperature Semiconductors Chips Parts Thermal Shock Environment Test Chamber





Corresponding Standard

GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735 EIA - 364-59
IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C



Technical parameters







  BT-XB-OLT-50 BT-XB-OLT-80 BT-XB-OLT-150 BT-XB-OLT-225

Inner size WxHxD(cm)

36×40×35

40×50×40

50×60×50

60×75×50



External size WxHxD(cm)

138x180x155

150X190X160

190x200X195

210x220X205



Shock Temperature ragne

-65°C~150°C

Heating up time

RT~200°C about 35min

Cooling down time

RT~-70°C about 90min

Temp recover time/change time

≤5min / ≤10sec

Temp control accuracy/

distribution accuracy

±0.5°C / ±2.0°C

Inner materials

SUS 304# stainless steel plate for inner chamber,and stainless steel plate

+ spray painting for external chamber.

Insulation materials

High-temperature high-density amino acid ethyl ester foam insulator material.

Systems

P.I.D+S.S.R+Microcomputer balanced temperature control system.

Cooling systems

Semi-hermetic two-stage compressor (water-cooled) /

hermetic two-stage compressor (air-cooled).

Safety devices

Fuse switch, high and low pressure protection switch compressors,

refrigerant pressure protection switch failure warning system, electronic siren.

Fitting

Outlook window (special purchase), the upper and lower adjustable

compartment two energized measured line hole, casters,level bracket.

Power

3 phase AC108V-380V 50HZ/60HZ

Controller

Taiwan TATO or TH900C

Compressor

Germany Bitzer Brand





XB-OLT-50

XB-OLT-80

XB-OLT-150

XB-OLT-225

XB-OLT-408

Inner size WxHxD(cm)

36×40×35

40×50×40

50×60×50

60×75×50

80×85×60

External size WxHxD(cm)

138x180x155

150X190X160

190x200X195

210x220X205

225x250x220

Shock Temperature ragne

-65°C~150°C

Heating up time

RT~200°C about 35min

Cooling down time

RT~-70°C about 90min

Temp recover time/change time

≤5min / ≤10sec

Temp control accuracy/

distribution accuracy

±0.5°C / ±2.0°C

Inner materials

SUS 304# stainless steel plate for inner chamber,and stainless steel plate

+ spray painting for external chamber.

Insulation materials

High-temperature high-density amino acid ethyl ester foam insulator material.

Systems

P.I.D+S.S.R+Microcomputer balanced temperature control system.

Cooling systems

Semi-hermetic two-stage compressor (water-cooled) /

hermetic two-stage compressor (air-cooled).

Safety devices

Fuse switch, high and low pressure protection switch compressors,

refrigerant pressure protection switch failure warning system, electronic siren.

Fitting

Outlook window (special purchase), the upper and lower adjustable

compartment two energized measured line hole, casters,level bracket.

Power

3 phase AC108V-380V 50HZ/60HZ

Controller

Taiwan TATO or TH900C

Compressor

Germany Bitzer Brand

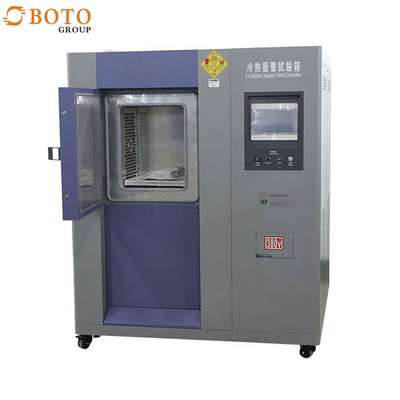

BOTO 50L 60L 80L 100L 150L 200L Lab Electronic Temperature Semiconductors Chips Parts Thermal Shock Environment Test Ch 0

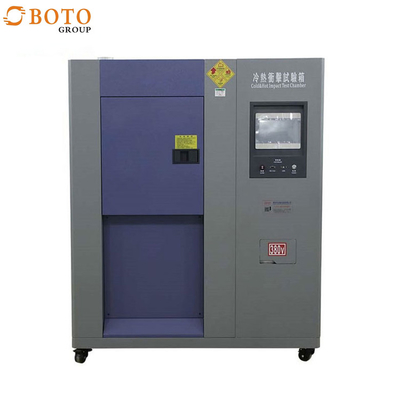

BOTO 50L 60L 80L 100L 150L 200L Lab Electronic Temperature Semiconductors Chips Parts Thermal Shock Environment Test Ch 1

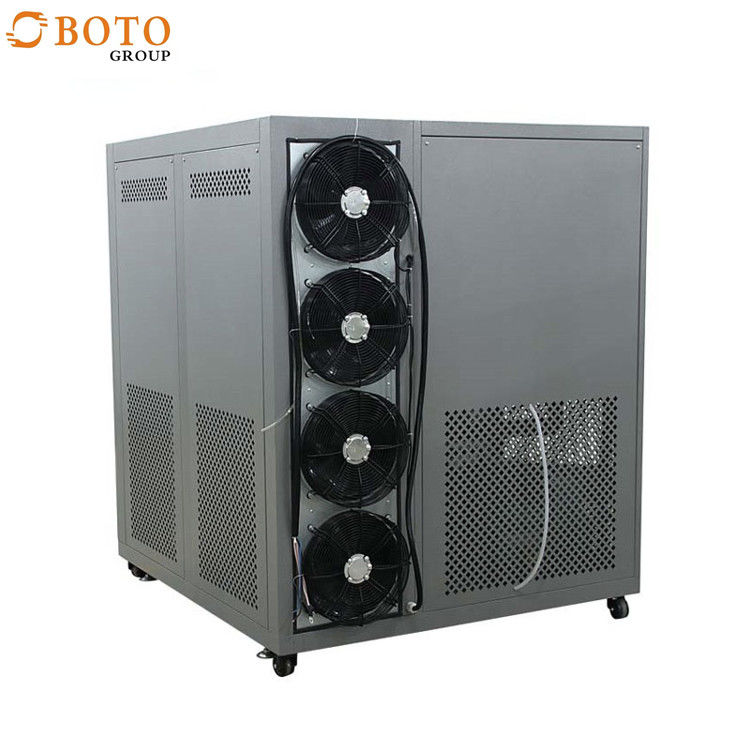

 BOTO 50L 60L 80L 100L 150L 200L Lab Electronic Temperature Semiconductors Chips Parts Thermal Shock Environment Test Ch 2
