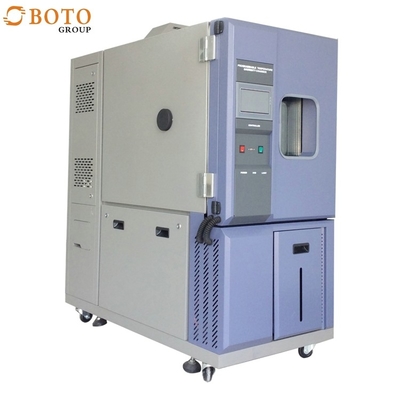

Programmable Fast Temperature Cycling Rapid Change Rate ESS Test Chamber /Rapid-Rate Thermal Cycle Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-HJ-7121
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Sets per Month
Temperature Range: (low:A:+25℃; B:0℃;C:-20℃; D:-40℃;E:-60℃;F:-70℃) ( High :+100℃/+150℃) Temp Analytic Accuracy/uniformity: 0.1℃/±2.0℃
Temperature Control Accuracy: ±0.5℃ Heat; Cooling Time: Heat Up About 4.0°C/min ; Cooling About 1.0°C/min
Inner Materials: SUS#304 Stainless Steel For Inner Chamber ; Outer Material: ; Carton Advanced Cold Plate Nano Paint For Outer
Heat Insulation Material: Resistant To High Temp ,high Density,formate Chlorine,ethyl Acetum Foam Insulation Materials Cooling System: Air Cooling/single Segment Compressor(-40°C) ,air And Water Double Segment Compressor (-50°C~-70°C)
Protection Devices: Fuse Switch, Compressor Overload Switch, Refrigerant High And Low Pressure Protection Switch, Super Humidity Over-temperature Protection Switch, Fuse, Failure Warning System Parts: Watching Window , 50mm Testing Hole , PL Internal Bulbs , Wet And Dry Bulb Gauze , Partition Plate , Castorx4,Foot Cupx4
Compressor: Original France"Tecumseh"brand Controller: TEMI South Korea
Power: AC220V 50/60Hz & 1,AC380V 50/60Hz 3
High Light:

Programmable ESS Test Chamber

,

Thermal Cycle ESS Test Chamber

,

SUS304 ESS Test Chamber

Programmable Fast Temperature Cycling Rapid Change Rate ESS Test Chamber /Rapid-Rate Thermal Cycle Chamber

Product Description

Fast change ramp rapid temperature cycling test chambers are very powerful climatic chambers used to perform hot and cold cycles with steep temperature gradients(from 3 to 15°C/min depending on the temperature) ranges



Applications



Temperature adaptability test under the condition of rapid change, or gradient for electrical, electronic, instruments and other products or spareparts, particularly applies to environmental stress screening test(ESS)

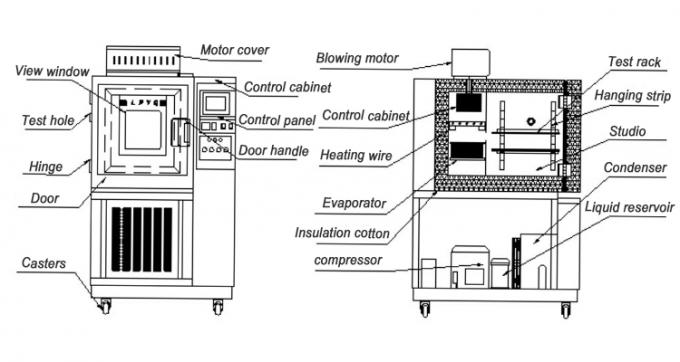

Programmable Fast Temperature Cycling Rapid Change Rate ESS Test Chamber /Rapid-Rate Thermal Cycle Chamber



Product parameters:

Model BT-HY-TH-80
(A~F)
BT-HY-TH-150
(A~F)
BT-HY-TH-225
(A~F)
BT-HY-TH-408
(A~F)
BT-HY-TH-800
(A~F)
BT-HY-TH-1000
(A~F)
Inner size: W×H×D(mm) 40*50*40 50*60*50 60*75*50 60*85*80 100*100*80 100*100*100
External size W×H×D(cm) 105*165*98 105*175*108 115*190*108 135*200*115 155*215*135 155*215*155
Temperature range (low:A:+25℃; B:0℃;C:-20℃; D:-40℃;E:-60℃;F:-70℃) ( high :+100℃/+150℃)
Temp analytic accuracy/uniformity 0.1℃/±2.0℃
Temperature control accuracy ±0.5℃
Heat; cooling time Heat up about 4.0°C/min ; Cooling about 1.0°C/min
Inner and outer materials SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer
heat insulation material Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials
cooling system

Air cooling/single segment compressor(-40°C) ,air and water double segment compressor

(-50°C~-70°C)

Protection devices

Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch,

super humidity over-temperature protection switch, fuse, failure warning system

Parts Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4,Foot Cupx4
Compressor Original France"Tecumseh"brand
Controller TEMI South Korea
Power AC220V 50/60Hz & 1,AC380V 50/60Hz 3
weight (kg) 150 220 270 320 450 580
