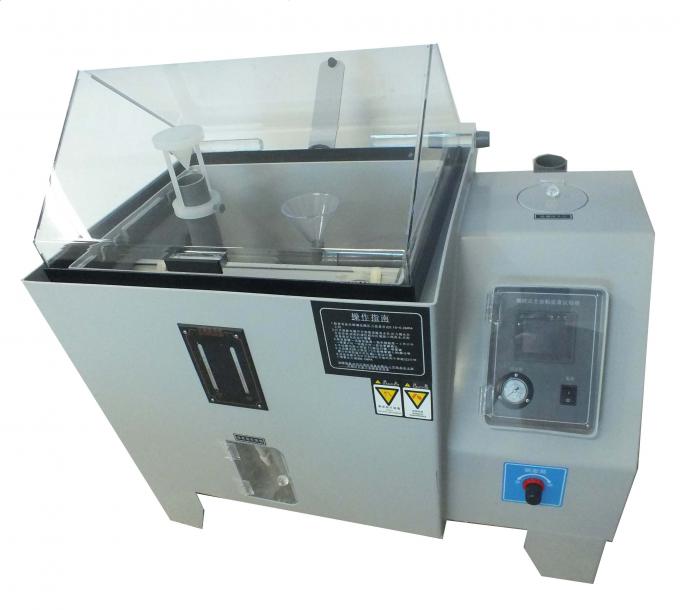

New Design Salt Fog Corrosion Test Chamber With Humidity Control With CE Certificate

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-HY-60
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T
Supply Ability: 500 Set/Sets per Month
Inner Box Size:: 60*45*40 CM Outside Box Size:: 108*108*65 Cm
Temperature Range: 35℃~55℃; Test Chamber Temperature: NSS ACSS 35℃±1℃(CASS 50℃±1℃)
Saturated Air Barrel Temperature: NSS ACSS 47℃±1℃(CASS 63℃±1℃) Temperature Fluctuations: ≤±0.5°C
Temperature Uniformity: ≤±2.0°C Lab Volume: 110L
Brine Tank Capacity: 15L Multiple Safety Protection Devices: Water Shortage; Over Temperature ;phase Protection
Standard Accessories: Test Salt, Measure Bucket, Tool Etc 1 Set Weight (kg): 60
Power: AC220V 1Φ20A
High Light:

15L Tank Corrosion Test Chamber

,

Anodic Treatment Corrosion Test Chamber

,

SUS304 Anodic Corrosion Test Chamber





New design Salt Fog Price Corrosion Test Chamber With Humidity Control with CE certificate





Product Uses





The brine spray test machine is to test the corrosion resistance of all kinds of surface treatment, including coating, electroplating, organic and inorganic leather, anodic treatment, antirust oil and other anticorrosive treatments.



Structure of the machine body:



A. The laboratory uses P.V.C polyvinyl chloride plate, acid and alkali resistant, easy to clean.(Germany (aless)

B. The laboratory seal cover is made of transparent impact resistant acrylic board.(Germany NSP)

C. The laboratory seal cover is made of transparent impact resistant acrylic board.

D. Saturated air pail adopts SUS#304 stainless steel high pressure tank for best insulation effect.

E. Laboratory blue frame adopts plane indexing frame. According to the standard, the angle is 20°±5°, the fog falls on all sides and the fog is identical. The number of test pieces is large.











3.Specification parameter list of salt spray test machine:

Model BT-HY-60 BT-HY-90 BT-HY-120 BT-HY-160 BT-HY-200
Inner box size: 60*45*40 90*60*50 120*100*50 160*100*50 200*100*50
(L×W×H) cm
Outside box size: 108*108*65 135*112*75 190*128*125 230*128*125 270*128*125
(L×W×H)cm
Temperature range 35℃~55℃;
Test chamber temperature NSS ACSS 35℃±1℃(CASS 50℃±1℃)
Saturated air barrel temperature NSS ACSS 47℃±1℃(CASS 63℃±1℃)
Temperature fluctuations ≤±0.5°C
Temperature uniformity ≤±2.0°C
Lab volume 110L 270L 600L 800L 1000L
Brine tank capacity 15L 25L 40L 65L 80L
Multiple safety protection devices Water shortage; over temperature ;phase protection
Standard accessories Test salt, measure bucket, tool etc 1 set
weight (kg) 60 90 180 280 450
Power AC220V 1Φ20A AC220V 1Φ20A AC220V 1Φ30A AC220V 3Φ15A AC220V 3Φ15A







Detailed Images

New design Salt Fog Price Corrosion Test Chamber With Humidity Control with CE certificate

New Design Salt Fog Corrosion Test Chamber With Humidity Control With CE Certificate 1

New Design Salt Fog Corrosion Test Chamber With Humidity Control With CE Certificate 2

New Design Salt Fog Corrosion Test Chamber With Humidity Control With CE Certificate 3

New Design Salt Fog Corrosion Test Chamber With Humidity Control With CE Certificate 4
