Name: Constant Temperature And Humidity Chamber Tester Temp Testing Equipment
Brand: BOTO GROUP LTD
SKU: BT-2100
Price: 120000 USD
Availability: InStock

Home > Products > Environmental Test Chambers >

Constant Temperature And Humidity Chamber Tester Temp Testing Equipment

SUS 304 Environmental Test Chambers

7Kw Environmental Test Chambers

LCD Screen Environmental Test Chambers

Place of Origin:

China

Brand Name:

BOTO

Certification:

CE ISO

Model Number:

BT-2100

Request A Quote

Constant Temperature And Humidity Chamber Tester Temp Testing Equipment

Product Details

Power::

Electronic

Terms Of Payment::

30%TT+70% Balance

Temperature Range::

-75℃ To 150℃

Controller::

LCD Color Touch Screen

Internal Material::

SUS#304 Stainless Steel

Power Supply::

220V; 20-30A, 4.5-7Kw, 60Hz

Humidity Range::

30% To 98%RH

Water::

Pure Water Or Distilled Water

External Material::

Steel Plate With Powder Coating

Highlight:

SUS 304 Environmental Test Chambers

7Kw Environmental Test Chambers

LCD Screen Environmental Test Chambers

Payment & Shipping Terms

Minimum Order Quantity

1set

Packaging Details

wooden case

Delivery Time

5-25 days

Payment Terms

L/C, T/T

Supply Ability

100 Set/Sets per Month

Automotive Customizable Heat of oil test chamber with Japanese Mitsubishi PLC about 20~260C

Get Best Price

Made-To-Order Comprehensive Temperature,Humidity,Vibration Composite Test Chamber

Get Best Price

B-TH Walk-In High & Low Temperature Alternating Humidity Test Chamber For EV/Energy Storage

Get Best Price

High-Performance Made-To-Order PCT Benchtop High Pressure & High Humidity Environmental Test Chamber

Get Best Price

Contact Now

Product Description

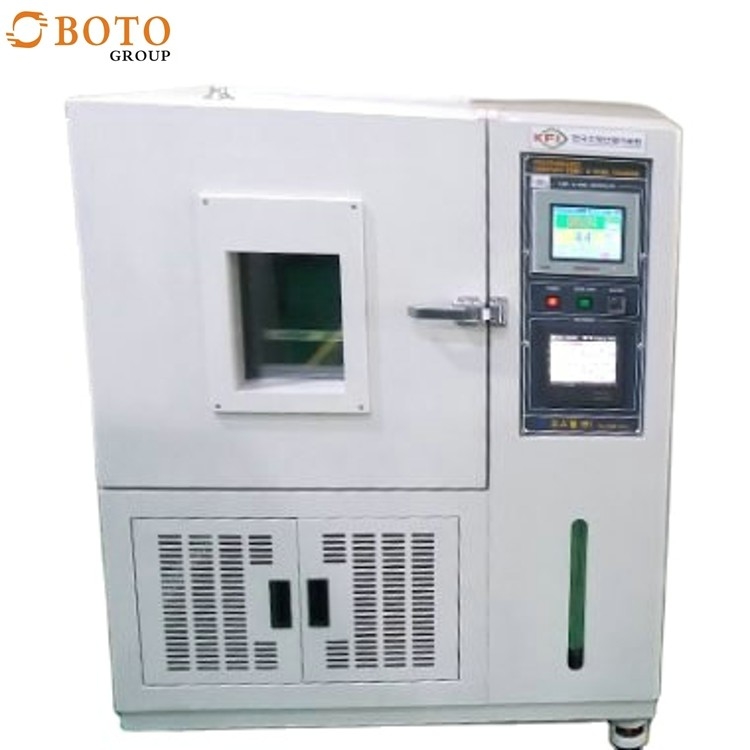

Constant Temperature and Humidity Chamber Tester

Best Quality Testing Equipment

Product Feature:

Precise control of temperature and humidity under various conditions.
10 step programming.
LCD display.
Humidifying water tank located in the front.
Lamp for checking the inside of the chamber.
Double gasket to prevent leakage of heat and humidity.
Reliable safety devices.
Touch screen controller can be installed (optional)
A recording function which the change of temperature and humidity is displayed in a graph (optional)
PC connection function (optional)
Experiments can be performed inside the chamber through the arm port (corresponding model)

Product Details

Dimensions(in)	1000(W) x 800(D) x 1000(H)	600(W) x 700(D) x 800(H)	500(W) x 500(D) x 600(H)
(out)	1560(W) x 1230(D) x 20200(H)	1120(W) x 1100(D) x 1800(H)	1020(W) x 915(D) x 1600(H)
Capacity	800L	336L	150L
Power	220V, 30A, 7KW, 60Hz	220V, 23A, 5KW, 60Hz	220V, 20A, 4.5KW, 60Hz
Main control	Digital PID Controller
Temp. Range	-20℃ to 100℃ / -50℃ to 150℃(option) / -70℃ to 150℃ (option)
Temp. accuracy	±0.3℃ at 25℃
Humidity Range	30% to 98% RH
Humidity accuracy	±1% at 70%
Humidity sensor	Ceramic Electronic Device
Humidifier	Evaporation by Motor with SUS 316 Pipe Heater
Water Supply	Front Loading Water Tank / Magnetic Pump System
Materials (in)	Stainless Steel, SUS 304
(out)	Steel Plate with Powder Coating
Door	Silicone Packing Door
Shelves	3EA, Adjustable type
Cooling device	Hermetically Sealed Compressor, Auto Exchange Dual Evaporator
Safety device	Over/Under Temperature Protector, Water Level Monitor, Power Breaker

* Manufactured by customer order.

* Specifications may be changed during production.

Company information

BOTO GROUP Ltd. is a private enterprise integrating R&D, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.

Factory tour

Constant Temperature And Humidity Chamber Tester Temp Testing Equipment 0

Constant Temperature And Humidity Chamber Tester Temp Testing Equipment 1

Main equipment include:

Constant Temperature and Humidity Test Chamber
Salt Spray Test Chamber / Corrosion Cyclic Salt Spray Test Chamber
UV Accelerated Aging Test Chamber
Mini Environmental chamber / Desktop Environmental Test Chamber
Walk in Constant Temperature and Humidity Lab
High Temperature Chamber and Other Lab Test Equipment etc.

Main market:

Constant Temperature And Humidity Chamber Tester Temp Testing Equipment 2

The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.

Production Line Machine

Constant Temperature And Humidity Chamber Tester Temp Testing Equipment 3

Constant Temperature And Humidity Chamber Tester Temp Testing Equipment 4

Constant Temperature And Humidity Chamber Tester Temp Testing Equipment 5

Packaging & Shipping

We provide professional, environmentally friendly, convenient and efficient packaging services. Standard Export Package.

Constant Temperature And Humidity Chamber Tester Temp Testing Equipment 6
