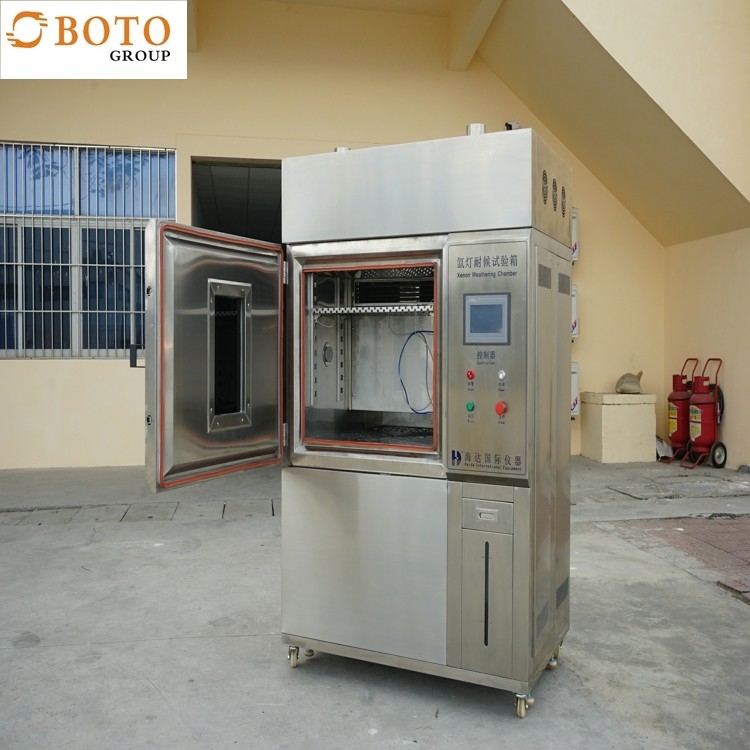

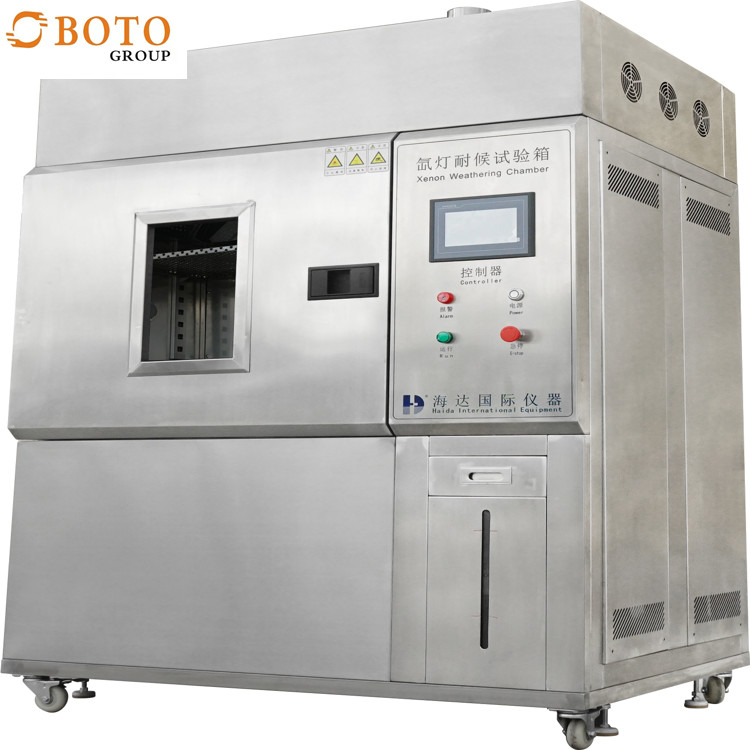

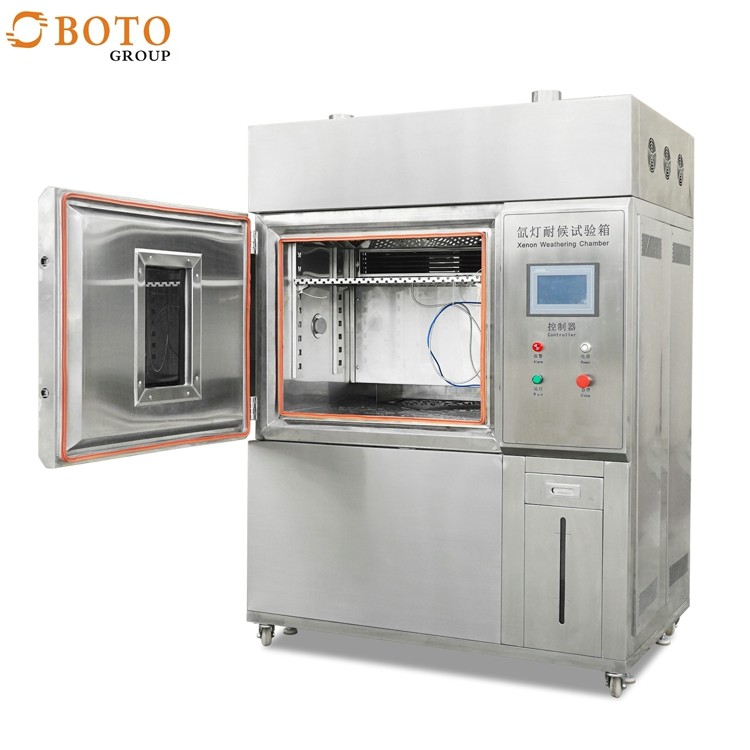

Xenon Lamp Weather Resistance Aging Test Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-E711-1
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T
Supply Ability: 15 Set/Sets per Month
Internal Dimension (W*D*H):: 800*800*800mm Inner Chamber Material:: SUS 304 # Stainless Steel, Anti-rust, Easy To Clean
Chamber Temperature:: 40±3℃ Blank Panel Temperature:: 65±3℃
Power: Electronic External Dimension (W*D*H):: 1450*1500*2000mm
Outer Chamber Material:: Stainless Steel Temperature Uniformity:: ≤3℃
High Light:

SUS304 Xenon Lamp Aging Test Chamber

,

Weather Resistance Aging Test Chamber

,

PLC Aging Test Chamber

Xenon Lamp Weather Resistance Aging Test Chamber





Product Description

GENERL SPECIFICATIONS

Packaging Dimensions: (WxDxH) 1650*1700*2200mm

Power supply source: three-phase, 380V±10%, 50Hz (can be appointed)

Gross Weight: 450kg

HS Code: 8479899990



MAIN PARAMETER



Item Specification
Internal Dimension (W*D*H) 800*800*800mm
External Dimension (W*D*H) 1450*1500*2000mm
Inner chamber material SUS 304 # Stainless Steel, Anti-rust, easy to clean
Outer chamber material Stainless steel
Chamber Temperature 40±3℃
Temperature Uniformity ≤3℃
Blank panel temperature 65±3℃
Humidity Range 50%-90%
Irradiated intensity 0.35±0.02w/m²at 340nm

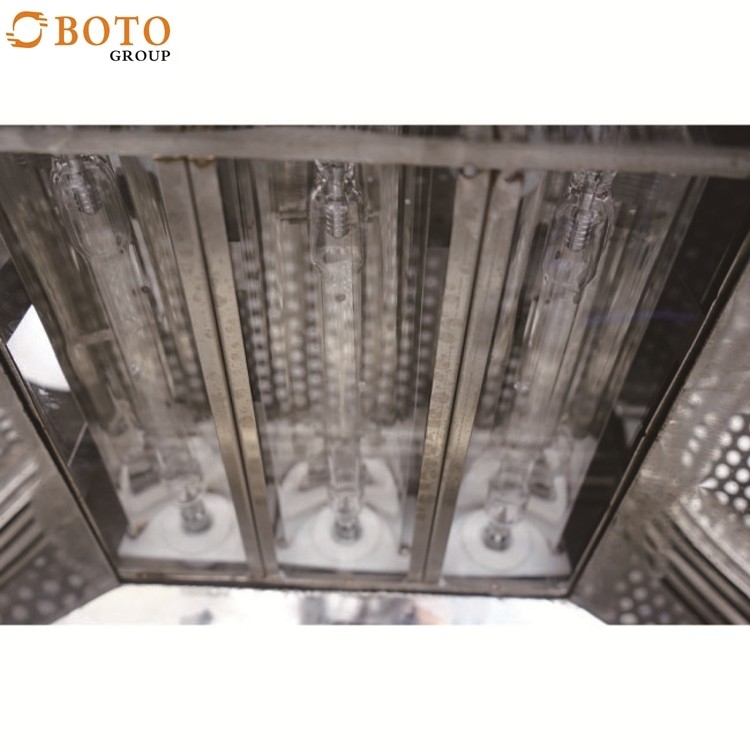

Xenon lamp power 6.5KW water-cooled xenon lamp x 1pc
Control system PLC controller, touch screen
Distance from specimen to arc center 250~300mm, Effective exposure area 6400cm2
Max. Sample dimension 200*90mm Thickness<20mm
Filter Daylight filter
Door seal Silicone rubber seal
Temperature sensor PT100 high precision temperature sensor

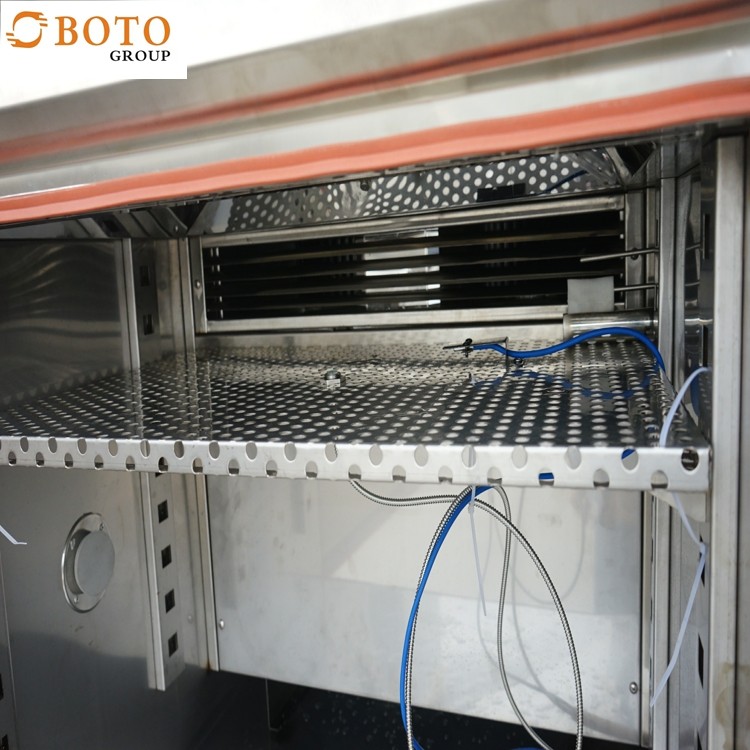

Air circulation system Stainless steel centrifugal rotor vane to improve the uniformity of temperature and humidity
Cooling ventilator Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system
Cooling ventilator France Tecumseh compressor
Power AC380V, 50Hz, three phase
Safety Protection

Over heat protection for fan,

Over load protection for cooling system,

Over pressure protection for cooling system,

Over temperature protection,

Over heat and over flow protection for water pump,

Leakage protection, Water shortage protection,

Auto stop after failure warning



Production Process



Xenon Lamp Weather Resistance Aging Test Chamber 0



COMPANY INTRODUCTION



FACTORY AND OFFICE DISPLAY

Xenon Lamp Weather Resistance Aging Test Chamber 1

Xenon Lamp Weather Resistance Aging Test Chamber 2



Xenon Lamp Weather Resistance Aging Test Chamber 3



PRODUCTION LINE



Xenon Lamp Weather Resistance Aging Test Chamber 4Xenon Lamp Weather Resistance Aging Test Chamber 5



COOPERATIVE PARTNERS



Xenon Lamp Weather Resistance Aging Test Chamber 6



Our Services

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.

3) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photos to show production process.

After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

4) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
