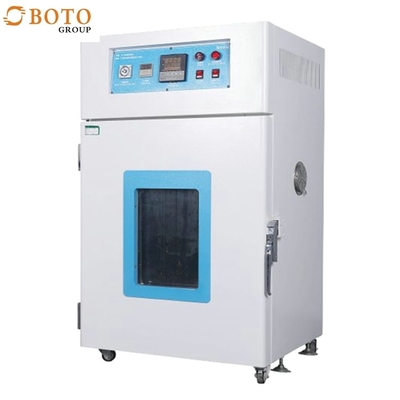

Hot Air Circulation Laboratory Test Oven

Hot Air Circulation Laboratory Test Oven
Hot Air Circulation Laboratory Test Oven Hot Air Circulation Laboratory Test Oven Hot Air Circulation Laboratory Test Oven Hot Air Circulation Laboratory Test Oven
Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BOTO
Minimum Order Quantity: 1set
Price: 850-1350 USD
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T
Supply Ability: 300 Set/Sets per Month
Contact Now
Warranty:: 1 Year Warranty Of Core Components:: 1 Year
Heating Method:: Electric Heating Uses: Laboratory Test Oven: Uses: Laboratory Test Oven
Temperature Range:: Max 500 ℃can Customize Power Source:: 220V/380V 50HZ
Temperature Record:: Optional After Warranty Service:: Video Technical Support, Online Support
Key Selling Points:: Sustainable Applicable Industries:: Manufacturing Plant
Core Components:: Engine Evaporation Capacity(kg/h):: Deponds On Chamber Size And Temperature Range
Material:: SUS304, #SUS 304 Stainless Steel Color:: Can Be Customized
Inner Structure:: With Hot Plate Or Cart Accuracy:: ±0.3 °C
Controller:: PID Or PLC
High Light:

SUS304 Laboratory Test Oven

,

380V Laboratory Test Oven

,

8kw Sustainable Laboratory Test Oven

Hot Air Circulation Laboratory Test Oven





Products Description
With many year's experiences, we design, manufacturer and trade good quality industrial ovens with affordable prices. Our Industrial ovens are designed to heat up to 800 ℃ and are used for a wide variety of heat processes including drying, curing, aging, annealing, stress relieving, bonding, tempering, pre-heating and forming. Industrial ovens are essentially heated boxes with insulated doors that process products one at a time or in groups. The part(s) to be heated are brought into the oven in batches on racks, carts, or trucks. Production requirements can accommodate manual or automated loading.

Standard industrial ovens are offered in many sizes, with multiple options available upon request. And we also supply custom engineered industrial ovens.
Hot Air Circulation Laboratory Test Oven 0Hot Air Circulation Laboratory Test Oven 1
Main Features:

1. Robust drying chamber: Welded structural steel framework for overall support.
2.Temperature uniformity: Typically the airflow within the heated chamber is designed with a recirculating horizontal cross-flow. They can also be equipped with a combination airflow pattern, top-down or bottom-up airflow pattern to guarantee temperature uniformity.
3. Energy saving: Most of the hot air circulates inside the well insulated oven. The amount of exhaust air is adjustable according to different heating applications.
4. Flexibility in heat source: Our batch ovens offer various heating methods, including gas, electric, infrared, and
radiantheating systems.
5. Flexibility in operation: Numerous flooring options are available such as recessed tracks to accommodate product carts, a steel plate floor, or an insulated floor without tracks. Doors can be designed to accommodate any requirement and range from simple horizontal swing doors to pneumatic or hydraulic vertical doors with manual or automatic operation.
6. Easy and accurate control: Simple digital controls for basic operation or PLC controls for complex requirements
Hot Air Circulation Laboratory Test Oven 2

Product Paramenters

Model
Inner Size
W*H*D
(cm)
External Size
W*H*D
(cm)
Temperature
Range
(°C)
Heating
up
Time
Accuracy
(°C)
Uniformity
(°C)
Power
Rate of
work
(kw)
BT-LY-645
45×40×40
66×92×55


(A-D)
A:200°C
B:300°C
C:400°C
D:500°C
E:600°C
F:700°C
G:800°C




RT~100°C
About 10min





±0.3





±1%




220V
Or
380V
3.5
BT-LY-660
50×60×50
70×125×65
4.5
BT-LY-690
60×90×50
80×156×65
5.5
BT-LY-6100
80×100×60
100×166×75
8
BT-LY-6120
90×120×60
110×186×75
10
BT-LY-6140
140×120×60
160×186×75
12
BT-LY-6160
160×140×80
180×206×97
14
BT-LY-6180
180×140×100
200×200×118
16
BT-LY-OEM
This model is based on your requirements, including the design.
