Programmable New Corrosion Testing Machine Salt Spray Chamber

^{Programmable New Corrosion Testing Machine Salt Spray Chamber}

^{Technical Parameters}

^{Detailed Configurations As Follows}

^{1. Machine Material}

^{(A) testing room using PVC polyvinyl chloride plate (from Taiwan), acid-resisting and alkali-resisting, cleaning easier.}

^{(B) cover of testing room using acrylic panels (imported organic glass), the thickness is 5mm.}

^{(C) reagents added bottles attached with water gauge, cleaning easy and not easy to break.}

^{(D) saturated air barrels is made of SUS # 304 stainless steel.}

^{(E) testing room to adopt indexing frame, can be arbitrarily adjust the angle, Surrounded by fog and placed more piece .}

^{2. According to CNS JIS ASTM GB2423.19 specifications, can be set constant temperature to control}

^{(A) Salt spray test: NSS, ACSS}

^{1. testing room : 35 ℃ ± 1 ℃}

^{2 saturated air barrels : 47 ℃ ± 1 ℃}

^{(B) anti-corrosion test: CASS (copper acetate)}

^{1.testing room: 50 ℃ ± 1 ℃}

^{2 saturated air barrels: 63 ℃ ± 1 ℃}

^{3. Air Supply System: Air pressure 1Kg/cm2 Two-stage adjustments (coarse / fine-tuning).}

^{(A) the first paragraph for the rough adjustment 2-2.5Kg/cm2, the second paragraph to fine-tune 1Kg/cm2.}

^{(B) Testing configuration is switch connector designed for SO2.}

^{4. Spray Form}

^{(A) Using Bo Nute principle to draw brine and then saline spray, atomization uniform, non-blocking and crystallization, so that ensure continuous spraying.}

^{(B) Nozzle: The nozzle is made of special glass, adjust spray volume and spray angle.}

^{(C) spray volume: Adjustable 1 ~ 2ml (80cm2/hr) (average of 16-hour volume).}

^{5. Heating Devices}

^{By direct heating, warming up faster and reduction of standby time, when the temperature arrives automatically switch ON / OFF, make temperature accuracy, low power consumption (heating tube is made of titanium alloy).}

^{6. The Control System
(A) testing room temperature controller is the digital micro-computer products 0-99.9 ℃, liquid crystal digital display with PID automatic calculation, the control error is ± 0.3 ℃ (YANG MING6802) 1 pcs.
(B) saturated air barrels controller 0 ~ 99.9 ℃, liquid crystal digital display with PID automatic calculation, the control error is ± 0.3 ℃ (YANG MING6802) 1 pcs.
(C) safe temperature controller of heat expansion of the liquid tank 30 ~ 110 ℃ (Italy) 1 pcs.
(D) safe temperature controller of expansion of the saturated air barrel : 30 ~ 110 ℃ (Italy) 1 pcs.
(E) digital time controller 9.9s ~ 9990hr (Taiwan) 1 pcs.
(F) timer 0 ~ 9999hr (Taiwan Anliang) 1 pcs.
(G) buckle switch, continuous buckling 20000 times.
(H) 60 type, 90 type for manual flip, 120, 160, 200 type for the pneumatic cylinde automatic opening and closing.
(J) pressure gauge, (Taiwan B card).
(K) fixture bleaker (YANG MING).
(L) electromagnetic valve; (KSD).
(M) regulating valve (YIHUA).
(N) bleaker (Omron).}

^{7. Add Water Systems}

^{Using automatic water replenishment system, automatic replenishment when the water level is too low.}

^{8. Safe Protective Device}

^{(A) low water level, automatically cut off power supply.}

^{(B) over-temperature, automatic cut off the power supply.}

^{(C) attached to the safe warning light device.}

^{9.Accessories
Reagent sodium chloride (NACL) 500 g 2 bottles
Calibration cup 1 pcs
Instruction 1 pcs}

^{PH test paper 1 pcs}

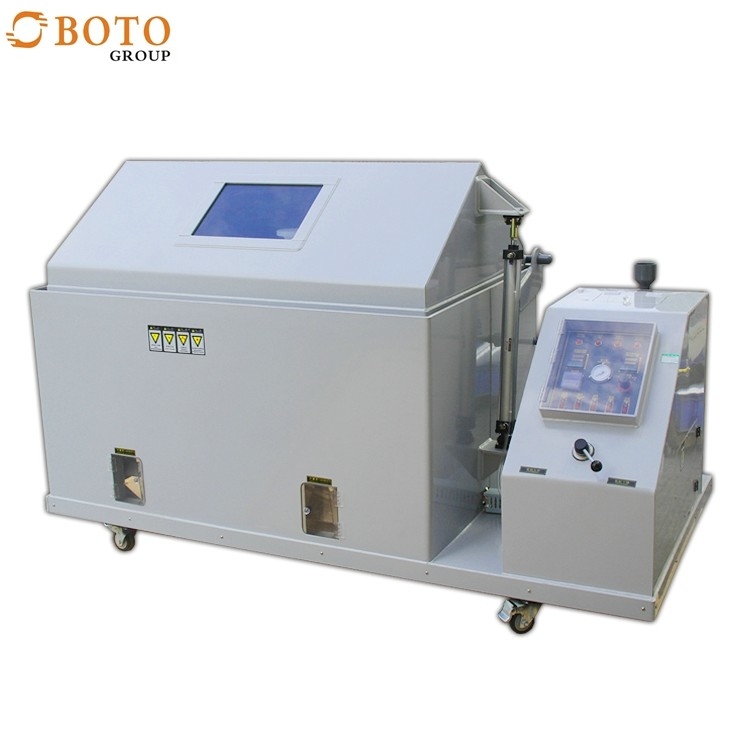

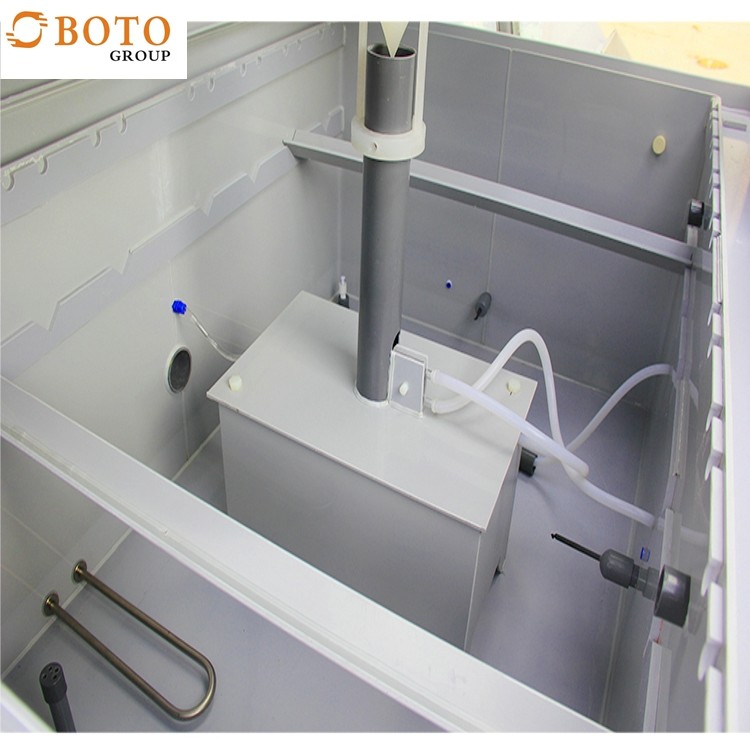

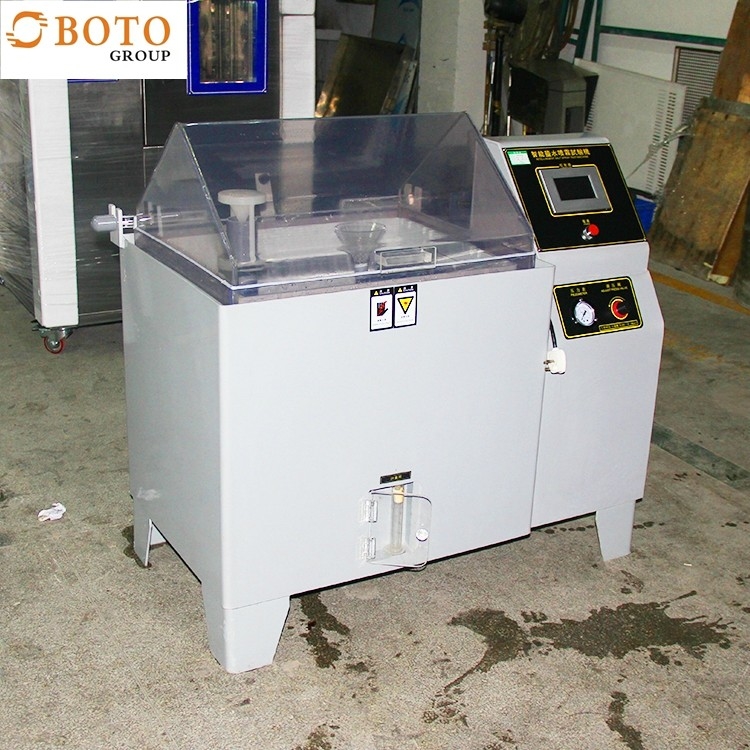

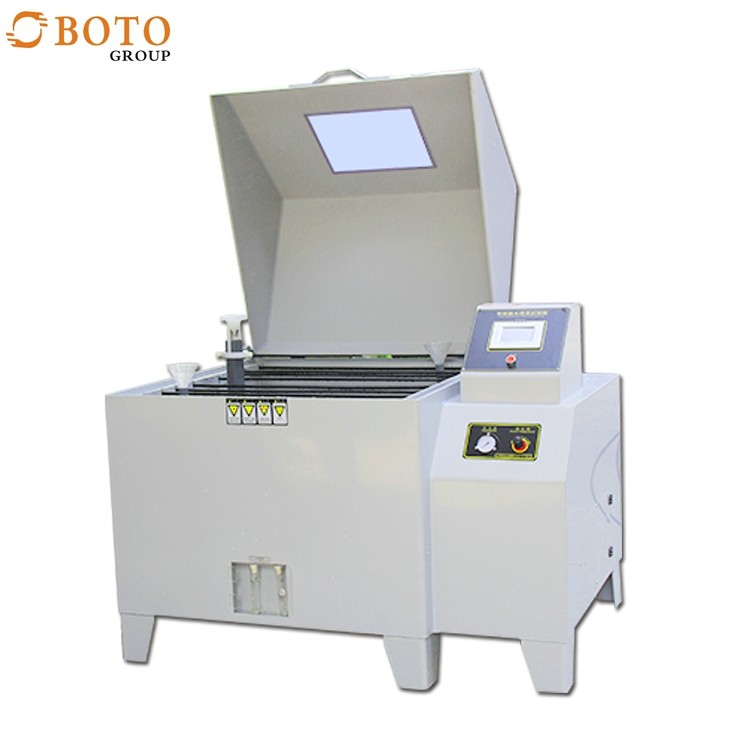

^{Detailed image}

^{Company introduction}
