| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE ISO |
| Model Number: | BT-JY-60A-2 |
| Minimum Order Quantity: | 1set |
| Packaging Details: | wooden case |
| Delivery Time: | 5-25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Set/Sets per Month |
| Inner Box Size:: | 600* 450 *400 Mm | Temperature Test Chamber:: | NSS.ACSS 35℃±1℃/CASS 50℃±1℃ |
|---|---|---|---|
| PH:: | 6.5~7.2 / 3.0~3.2 | Meet The Standards:: | ASTM B117 |
| Power:: | Electronic | Salt Spray Test:: | NSS, ACSS |
| Temperature Air Cylinder:: | NSS.ACSS 47℃±1℃/CASS 63℃±1℃ | Spray Quantity:: | 1.0~2.0ml/80cm2/h |
| Power Supply:: | AC220V 50HZ | ||
| High Light: | ASTM B117 Corrosion Test Apparatus,ACSS Salt Mist Corrosion Test Apparatus,AC220V Corrosion Test Apparatus |
||

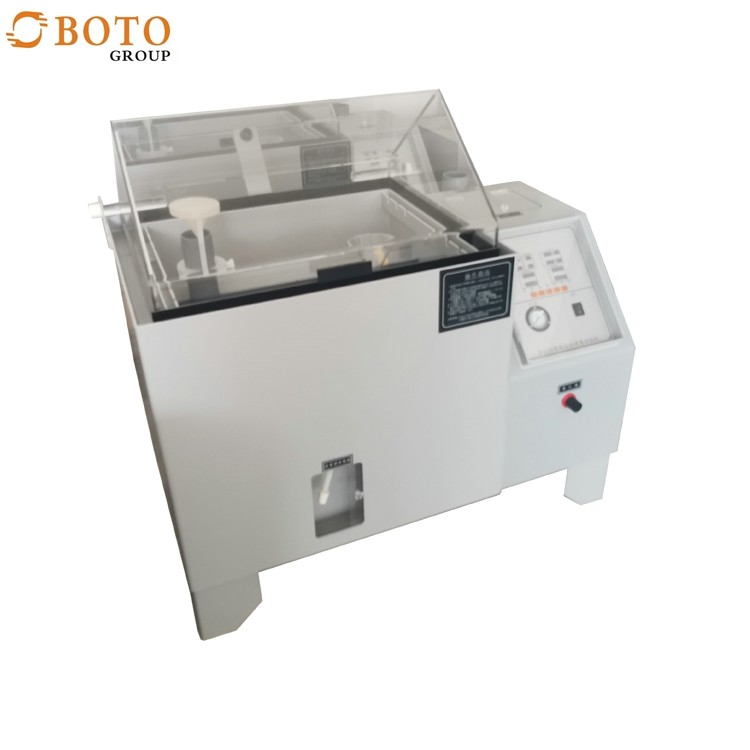

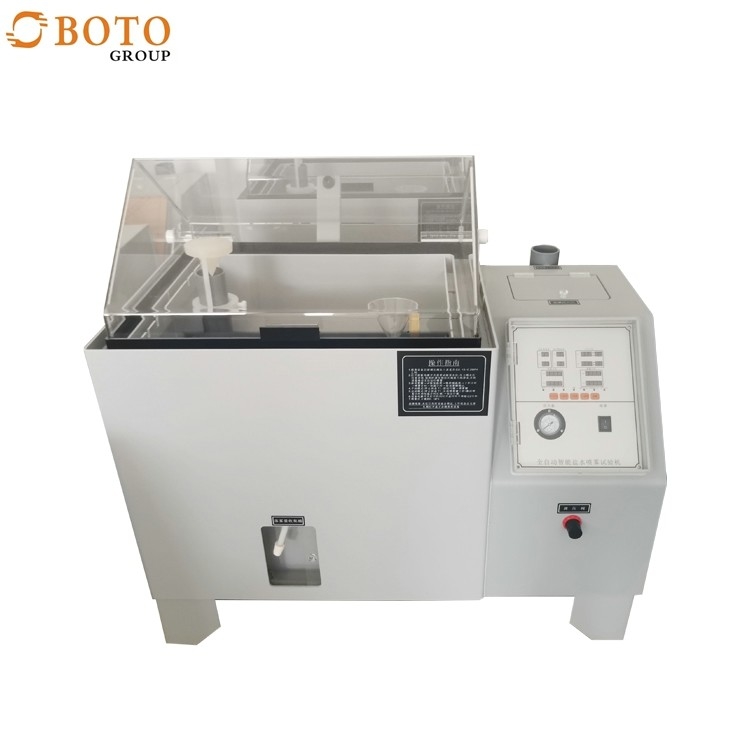

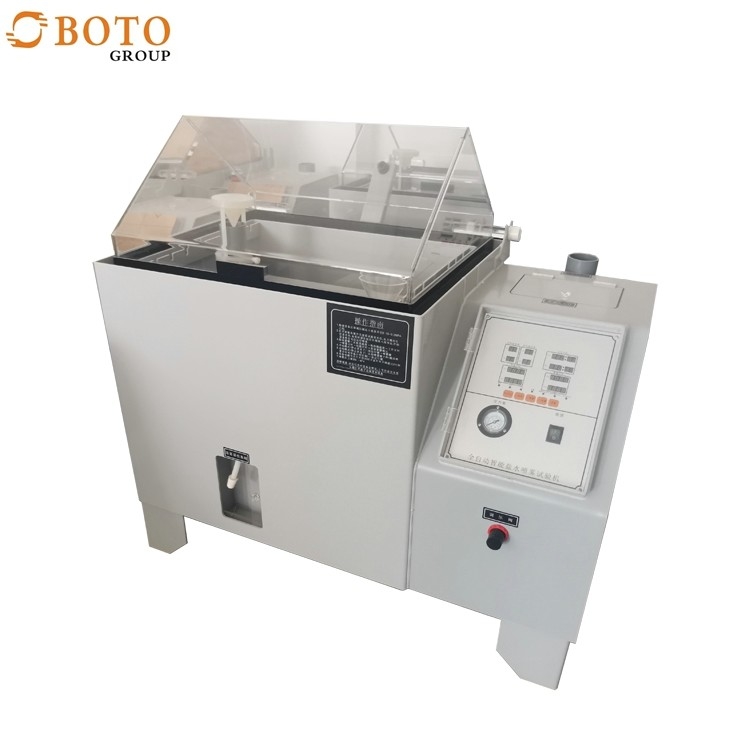

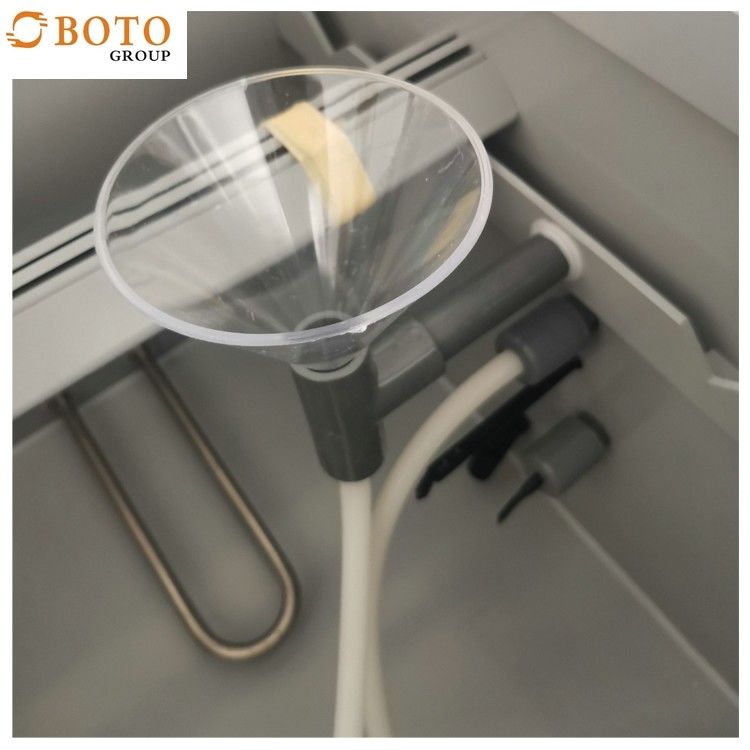

ASTM B117 Apparatus Fog Salt Mist Spray Chamber Salt Spray Corrosion Test Apparatus
Application: The salt spray test machine is used for the surface treatment of various materials, including coatings, electroplating, organic and inorganic coatings, anodizing, anti-rust oil and other anti-corrosion treatments to test its corrosion resistance, thus establishing the quality of the product.
| Model | BT-JY-60A | BT-JY-90A | BT-JY-120A | BT-JY-200A |
| Design Standards |
GB/T 10587-2006,GB/T 10125-1997, JISD0201,H8502,H8610,K5400,Z2371 |
|||
| Test chamber capacity (L) | 108L | 270L | 600L | 1440L |
|
Temperature |
Test chamber | NSS.ACSS 35°C±1°C/CASS 50°C±1°C | ||
| Air cylinder | NSS.ACSS 47°C±1°C/CASS 63°C±1°C | |||
|
Test chamber size LxWxD(cm) |
60*45*40
|
90*60*50
|
120*100*50
|
200*120*60
|
|
Max volum of test liquid (L) |
15 | 25 | 40 | 40 |
| Volume LxWxD(cm) | 107*60*118 | 141*88*128 | 190*130*140 | 270*150*150 |
| Power | AC220V,10A | AC220V,15A | AC220V,30A | AC220V,30A |
| Spray quantity | 1.0~2.0ml/80cm2/h | |||
| PH | 6.5~7.2 3.0~3.2 | |||
