Salt Fog Corrosion Test Chamber NSS Testing Lab Electronic Salt Spray Tester For Battery Metal Test

Salt Fog Corrosion Test Chamber NSS Testing Lab Electronic Salt Spray Tester For Battery Metal Test
Salt Fog Corrosion Test Chamber NSS Testing Lab Electronic Salt Spray Tester For Battery Metal Test Salt Fog Corrosion Test Chamber NSS Testing Lab Electronic Salt Spray Tester For Battery Metal Test Salt Fog Corrosion Test Chamber NSS Testing Lab Electronic Salt Spray Tester For Battery Metal Test Salt Fog Corrosion Test Chamber NSS Testing Lab Electronic Salt Spray Tester For Battery Metal Test
Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-609-150
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T
Supply Ability: 300 Set/Sets per Month
Contact Now
Design Standard: GB/T 10587-2006, GB/T 10125-1997, JIS-D0201, H8502, H8610, K5400, Z2371 Test Chamber Capacity(L): 750L
Test Chamber Temperature: NSS.ACSS 35°C±1°C/CASS 50°C±1°C Saturated Air Cylinder: NSS.ACSS 47°C±1°C/CASS 63°C±1°C
Test Chamber Size L×W×D(cm): 1500*1000*500 Max Capacity Of Test Liquid(L): 40
Power: AC220V,30A
High Light:

NSS Salt Fog Corrosion Test Chamber

,

Lab Electronic Salt Spray Tester

,

750L Battery Salt Spray Tester

Salt Fog Corrosion Test Chamber NSS Testing Lab Electronic Salt Spray Tester For Battery Metal Test





Products Descriptio
 Salt spray test machine can determine the corrosion resistance of iron metal or the iron metal inorganic film or organic film test, such as: electroplating, anode processing, conversion coating, painting, ect.

Salt spray test machine is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a period of time. Test duration depends on the corrosion resistance of the coating; the more corrosion resistant the coating is, the longer the period in testing without showing signs of corrosion. Different coatings have different behaviour in salt spray test and consequently, test duration will differ from one type of coating to another.

Characteristics:
1. Spray nozzle the heart of teser adopt Bo Nute Principle which change saline water into atomization but no crystallization produced.
2. Controller is digital type microcomputer which delivers precision temparature.
3. Parameters show on the display screen such as temparature, humidity, pressure, spray capacity and time.
4. Test specifications are accept worldwild.
Product Paramenters
Model
BT-609-60
BT-609-90
BT-609-120
BT-609-150
BT-609-200
Design standard
GB/T 10587-2006, GB/T 10125-1997,
JIS-D0201, H8502, H8610, K5400, Z2371
Test chamber capacity(L)
108L
270L
600L
750L
1000L
Temperature
Test chamber
NSS.ACSS 35°C±1°C/CASS 50°C±1°C
Saturated air cylinder
NSS.ACSS 47°C±1°C/CASS 63°C±1°C
Test chamber size
L×W×D(cm)

60*45*40

90*60*50

1200*1000*500

1500*1000*500

2000*1000*500
Max capacity of test liquid(L)
15
25
40
40
40
Power
AC220V,10A
AC220V,15A
AC220V,30A
Detail Images

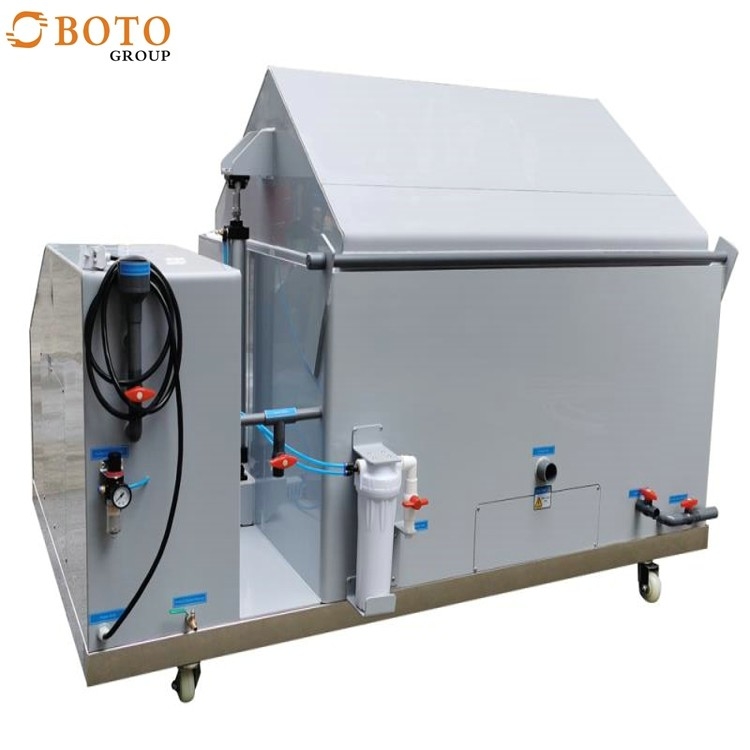

Salt Fog Corrosion Test Chamber NSS Testing Lab Electronic Salt Spray Tester For Battery Metal Test 0



Simply Description of the chamber


Comapny profile

Factory & Offices
Salt Fog Corrosion Test Chamber NSS Testing Lab Electronic Salt Spray Tester For Battery Metal Test 1Salt Fog Corrosion Test Chamber NSS Testing Lab Electronic Salt Spray Tester For Battery Metal Test 2Salt Fog Corrosion Test Chamber NSS Testing Lab Electronic Salt Spray Tester For Battery Metal Test 3Production line
Salt Fog Corrosion Test Chamber NSS Testing Lab Electronic Salt Spray Tester For Battery Metal Test 4Salt Fog Corrosion Test Chamber NSS Testing Lab Electronic Salt Spray Tester For Battery Metal Test 5
Cooperative partners
Salt Fog Corrosion Test Chamber NSS Testing Lab Electronic Salt Spray Tester For Battery Metal Test 6
Salt Fog Corrosion Test Chamber NSS Testing Lab Electronic Salt Spray Tester For Battery Metal Test 7



Stroage
We normally keep some models in stock for some urge purchase
