Name: ASTM B117 Aging Approved Corrosion Fog Salt Spray Environment Test Chamber
Brand: BOTO GROUP LTD
SKU: BT-S-250
Price: 120000.00 USD
Availability: InStock

Home > Products > Environmental Test Chambers >

ASTM B117 Aging Approved Corrosion Fog Salt Spray Environment Test Chamber

ASTM B117 Environment Test Chamber

AC 220V Environment Test Chamber

DIN50021 Environment Test Chamber

Place of Origin:

China

Brand Name:

BOTO

Certification:

CE ISO

Model Number:

BT-S-250

Request A Quote

ASTM B117 Aging Approved Corrosion Fog Salt Spray Environment Test Chamber

Product Details

Internal Dimensions (mm):

640*1000*500

Overall Dimensions (mm):

810*1800*1180

Temperature Range:

Ambient ~60℃

Humidity Range:

95% ~ 98% RH

Temperature Fluctuations:

+/- 0.5 ℃

Temperature Deviation::

+/- 2.0 ℃

Test Time:

1~999 Hours, Settable

Spray Deposition:

1~2ml / 80cm2 · H

Spray Type:

Continuous / Periodic

Interior /Exterior Material:

Glass Fiber Reinforced Plastics

Power Supply:

AC 220V 50HZ

Test Standard:

ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227

Highlight:

ASTM B117 Environment Test Chamber

AC 220V Environment Test Chamber

DIN50021 Environment Test Chamber

Payment & Shipping Terms

Minimum Order Quantity

1set

Packaging Details

wooden case

Delivery Time

5-25 days

Payment Terms

L/C, T/T

Supply Ability

170 Set/Sets per Month

Cutting-Edge Small High And Low Temperature Test Chamber Compact And Space-Saving Design With High-Performance Controller

Get Best Price

Automotive High-Performance Rapid Temperature Test Chamber Color Touchscreen, Multi-Safety Protection For Defense, Electronics

Get Best Price

Customizable And Programmable High Temperature Chamber For TheLab-Advanced Environmental Reliability Testing Equipment

Get Best Price

PCT Test Chamber – SUS#316 Interior, +100°C To +135°C, High-Temperature High-Humidity Testing For Electronics, Components, Materials

Get Best Price

Contact Now

Product Description

ASTM B117 Aging Approved Corrosion Fog Salt Spray Environment Test Chamber

Advantages of Salt Spray Environment Test Chamber

● Heater strip housed in base of chamber, effectively & evenly heating, Easy to exchange.
● Brine in high uniformity, not easy to caking, not blocking atomizer system
● Quartz nozzle, high temperature resistant, no blocking, easy to clean.

Specifications of Salt Spray Environment Test Chamber

Product Name	ASTM B117 Aging Approved Corrosion Fog Salt Spray Environment Test Chamber
Model	BT-S-150	BT-S-250	BT-S-750
Internal dimensions (mm)	470590400	6401000500	7501100500
Overall dimensions (mm)	62014001050	81018001180	92019001200
Temperature range	Ambient ~60℃
Humidity range	95% ~ 98% RH
Temperature fluctuations	+/- 0.5 ℃
Temperature deviation:	+/- 2.0 ℃
Test time	1~999 hours, settable
Spray deposition	1~2ml / 80cm2 · h
Spray type	Continuous / Periodic
Interior /Exterior material	Glass fiber reinforced plastics
Power Supply	AC 220V 50HZ
Test standard	ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227

ASTM B117 Aging Approved Corrosion Fog Salt Spray Environment Test Chamber 0

Details of Salt Spray Environment Test Chamber

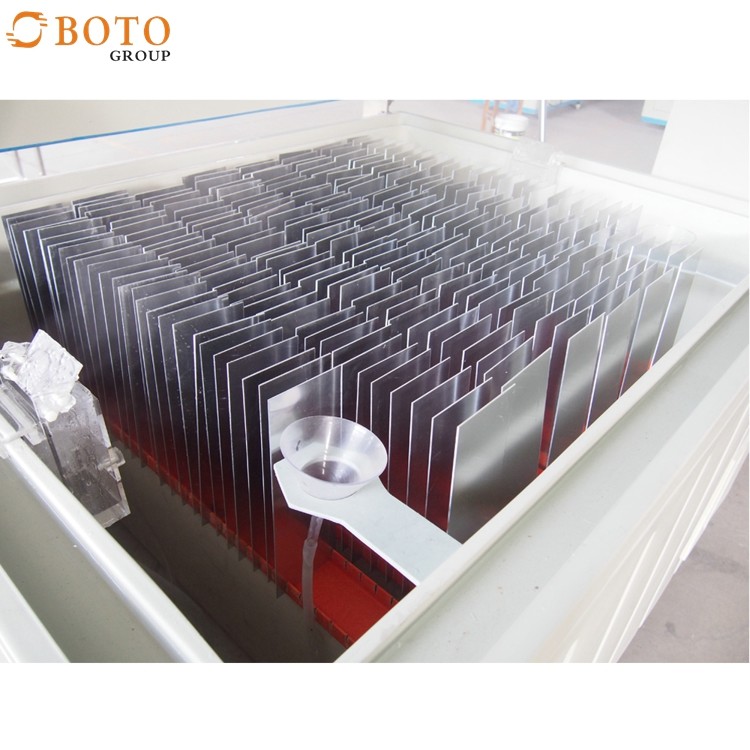

Test Area
● Glass Fiber Reinforced Plastics, strong corrosion resistance, long service lifespan, strong plasticity.
● Quartz nozzle, high temperature resistant, no blocking, easy to clean.

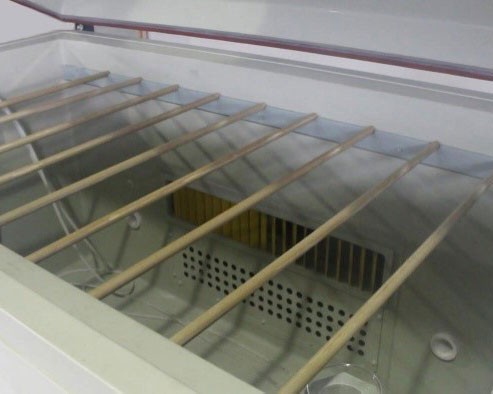

● Sample Holder, round bar+ V shape groove,It also can be customized.
● Air circulation, circulation system for air cycling, easy to maintain humidity.

● Heater strip housed in base of chamber, effectively & evenly heating.

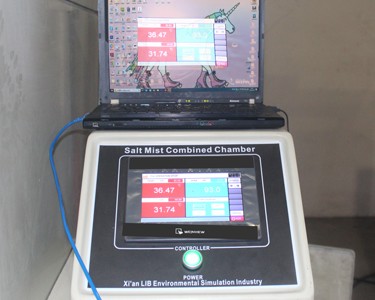

Control Panel
● Equip with PLC touch screen controller, can set programs directly on controller.
● Multi-language, English, Polish language, Turkish, Portuguese, Spanish,French, Russia, Chinese.
● With Ethernet interface, able to download testing data to PC, More function performed, combined climate and salt spray into one chamber.

● USB, RS-232, APP.


Atomizer Tower and Spraying

 ● Semi-Automatic PET Bottle Blowing Machine Bottle
● Making Machine Bottle Moulding Machine, automizer Tower and Spraying
● Corrosion-resistant atomizer tower.● Corrosion-resistant quartz spray nozzles.

● Fog is more fine and uniform distribution

● Perform a variety of salt corrosion test.

Air Circulation

● Only for cyclic salt spray test chamber for temperature and humidity test, have circulation system for air cycling,

easy to maintain humidity.
