-70C - +150C Programmable Fast Thermal Temperature And Humidity Test Chamber 50-1000L Optional

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T
Supply Ability: 10000 Set/Sets per Month
Chamber Volume:: 225L Humidity Range:: 20%-98% RH
The Heating Rate (no Load):: About 3℃/min Precision Of Humidity Control:: ±2%R.H
Analytical Accuracy Of Temperature:: 0.01℃ The Cooling Rate (no-load):: About 1℃/min
Chamber Size:: 500 *750 *600mm(W* H *D)
High Light:

Programmable Environmental Test Chambers

,

225L Environmental Test Chambers

,

6.0KW Environmental Test Chambers

Product Description

-70C - +150C Programmable Fast Thermal Temperature and Humidity Test Chamber 50-1000L Optional

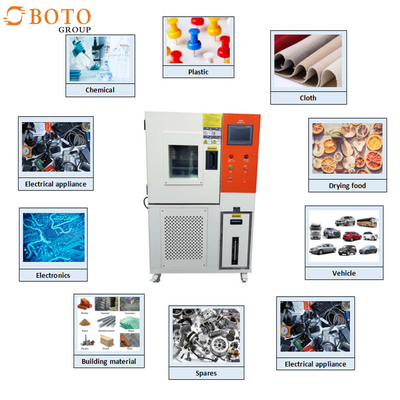

Temperature humidity test chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.





-70C - +150C Programmable Fast Thermal Temperature and Humidity Test Chamber 50-1000L Optional



Features

1. The constant temperature and humidity test box is mainly composed of control panel, distribution panel, insulation layer, air supply fan, heater, humidifier and refrigeration unit. The main specifications can be divided into 6 standard sizes and 10 specifications under different conditions.

2. The controller can be connected to the computer through LAN interface. Users can design programs on the computer screen, collect test data and records, call program execution, remote control machine switch and other functions.

3. The use of multi-wing air supply fan strong air circulation, to avoid any dead angle, so that indoor temperature and humidity distribution is uniform.

4. Complete safety protection device, if abnormal conditions occur, the controller screen will automatically display the fault status, cut off the power switch, and provide troubleshooting methods.



Technical parameter

Model BT-50L BT-80L BT-225L BT-408L BT-800L BT-1000L
Inner chamber size (CM) 35*45*35 50*40*40 50*60*75 80*60*85 80*100*100 100*100*100
Power (- 40 ℃) 4.5(KW) 5.0(KW) 6.0(KW) 7.0(KW) 8.5(KW) 9.5(KW)

Performance











Temperature range

A:-20℃~150℃

B:-40℃~150℃

C:-60℃~150℃

D:-70℃~150℃

E:-70℃~180℃

Customized temperature is available

Humidity range

20~98%R.H

Customized humidity is available

Fluctuation / uniformity ±1.5℃/±2℃
Humidity deviation ±3%R.H
Heating rate About 1.0~3.0℃/min
Cooling rate About 0.5~1.0℃/min

Control system

















Controller "Temi" brand programming temperature instrument, HD real color LCD touch screen
Accuracy range

Setting accuracy: temperature 0.1 ℃, humidity 1% R.H,

Indication accuracy: temperature 0.1 ℃, humidity 1% R.H

Temperature

and humidity sensor

Platinum resistor PT100Ω/MV
Heating system Fully independent system, Ni Cr alloy electric heating heater
Humidification system External isolation type, all stainless steel shallow surface evaporation humidifier
Dehumidification system Adopt the dew point temperature laminar contact dehumidification method of evaporator coil
Water supply system Humidification water supply adopts automatic control, and can recover residual water, save water and reduce consumption
Refrigeration system French "Tecumseh" totally enclosed air-cooled single-stage or cascade compressor refrigeration mode
Circulation system Motors with low noise and temperature resistance - multi blade centrifugal fans

Materials







Outer box material High quality carbon steel plates. Phosphorized electrostatic spray or SUS304 stainless steel
Inner box material Stainless steel high quality mirror plate
Thermal insulation material Polyurethane rigid foam / superfine glass fiber wool
Door frame insulation Double layer high and low temperature aging resistant silicone rubber door sealing strip
Standard configuration Multi layer heating defrosting with lighting glass window 1 set, test sample rack 2, test lead hole 1
Safeguard Leakage, short circuit, overtemperature, water shortage, motor overheating, compressor overpressure, overload, overcurrent protection
Supply voltage AC220Vor 380V±10% 50±0.5Hz
Operating ambient temperature 5℃~+30℃ ≤85%R.H





Product Images







-70C - +150C Programmable Fast Thermal Temperature and Humidity Test Chamber 50-1000L Optional-70C - +150C Programmable Fast Thermal Temperature and Humidity Test Chamber 50-1000L Optional-70C - +150C Programmable Fast Thermal Temperature and Humidity Test Chamber 50-1000L Optional-70C - +150C Programmable Fast Thermal Temperature and Humidity Test Chamber 50-1000L Optional







-70C - +150C Programmable Fast Thermal Temperature and Humidity Test Chamber 50-1000L Optional



Company introduction

-70C - +150C Programmable Fast Thermal Temperature And Humidity Test Chamber 50-1000L Optional 6



-70C - +150C Programmable Fast Thermal Temperature And Humidity Test Chamber 50-1000L Optional 7

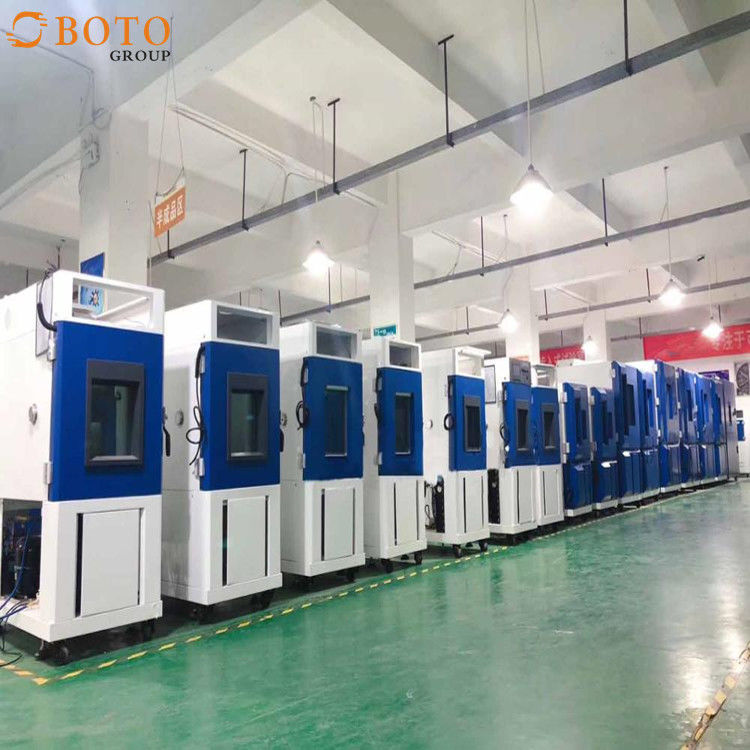

Production Details

-70C - +150C Programmable Fast Thermal Temperature And Humidity Test Chamber 50-1000L Optional 8



-70C - +150C Programmable Fast Thermal Temperature And Humidity Test Chamber 50-1000L Optional 9

-70C - +150C Programmable Fast Thermal Temperature And Humidity Test Chamber 50-1000L Optional 10



-70C - +150C Programmable Fast Thermal Temperature And Humidity Test Chamber 50-1000L Optional 11

-70C - +150C Programmable Fast Thermal Temperature And Humidity Test Chamber 50-1000L Optional 12

Our customers



-70C - +150C Programmable Fast Thermal Temperature And Humidity Test Chamber 50-1000L Optional 13





Packing&Shipping

-70C - +150C Programmable Fast Thermal Temperature And Humidity Test Chamber 50-1000L Optional 14

 Main product



-70C - +150C Programmable Fast Thermal Temperature And Humidity Test Chamber 50-1000L Optional 15



Our Services

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.

3) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photos to show production process.

After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

4) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
