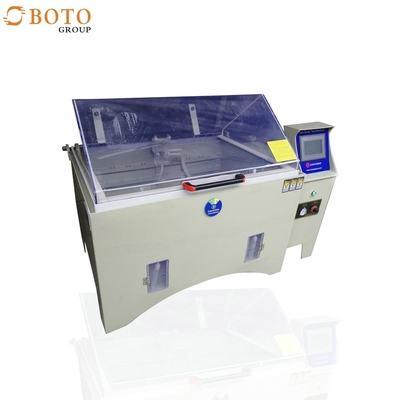

Salt Spray Chamber Price Environment Salt Spray Corrosion Test Machine IEC 60068-2-11 ISO ASTM Standards

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-Q-010
Minimum Order Quantity: 1set
Price: Negotiated
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T
Supply Ability: 10 Set/Sets per Week
Product Name:: Needle Tester Salt Spray Test Machine Spray Mode:: All Have A Continuous + Intermittent Spray Method
Power:: Electronic Work Room Size (mm): 1200x800x500
Exterior Size (mm): 1800x1100x1200 Voltage: 1Phase/220V
Power (KW): 3.5
High Light:

IEC 60068 Salt Spray Chamber

,

3.5kw Salt Spray Chamber

,

NSS Environment Salt Spray Chamber

Salt Spray Chamber Price Environment Salt Spray Corrosion Test Machine IEC 60068-2-11, ISO, ASTM Standards



Product Description

Salt Spray Chamber Price Environment Salt Spray Corrosion Test Machine IEC 60068-2-11, ISO, ASTM Standards

Please contact us first before you place order.



The Salt Spray Test Chamber is applicable to the salt spray corrosive test for the protection layer of components, parts,

electronic and electrical parts and metal materials and industrial products.



It meets the following standards:

IEC60068-2-11 (GB/T2423.17), GB/T10125, GB/T1771, ISO9227, ASTM-B117, GB/T2423-18, QBT3826, QBT3827,

IEC 60068-2-52, ASTM-B368, MIL-STD-202, EIA-364-26, GJB150, DIN50021-75,

ISO3768, ISO 9227, 3769, 3770; CNS 3627, 3885, 4159, 7669 etc.



Model Work Room Size (mm) Exterior Size (mm) Voltage Power (KW)
YWX/Q-150 600x450x400 1100x750x930 1Phase/220V 2
YWX/Q-250 900x600x500 1500x900x1150 1Phase/220V 2.5
YWX/Q-750 1100x750x500 1700x1050x1150 1Phase/220V 3.5
YWX/Q-010 1200x800x500 1800x1100x1200 1Phase/220V 3.5
YWX/Q-016 1600x900x600 2300x1300x1300 1Phase/220V 5
YWX/Q-020 2000x1000x600 2700x1400x1500 3Phase/380V 7.5



Specifications:




A waterproof structure is adopted between the chamber cover and chamber body, thus there is no salt spray overflow.
• Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.
• Working room temperature range:RT+5℃~50℃ (The setting value cannot be lower than the current ambient temperature); Saturated barrel temperature: +40°C~+63°C;
• Brine temperature: preheated by laboratory temperature; Temperature uniformity: ≤ ±2°C; Temperature fluctuation: ≤ ±1°C;
• Test time: 0-99,999 M adjustable; Settlement: 1-2ml/80cm²/h;
• Spray method: NSS (neutral) test, AASS (acidic) test, CASS (copper acceleration) test, custom test, programmable test, each test can choose continuous spray or intermittent spray (according to industry standards). The ratio of each test solution has a corresponding explanation in the test setting interface.
• Sample holder: at an angle of 15 to 30 degrees from the vertical surface (with sample standard placed). Other irregular samples are recommended to remain tilted. The V-groove has a single weighing capacity of 3KG, and the O-bar has a single bearing capacity of 5KG. It is strictly forbidden to place samples under heavy weight.



Salt Spray Chamber Price Environment Salt Spray Corrosion Test Machine IEC 60068-2-11 ISO ASTM Standards 1Salt Spray Chamber Price Environment Salt Spray Corrosion Test Machine IEC 60068-2-11 ISO ASTM Standards 2Salt Spray Chamber Price Environment Salt Spray Corrosion Test Machine IEC 60068-2-11 ISO ASTM Standards 3
