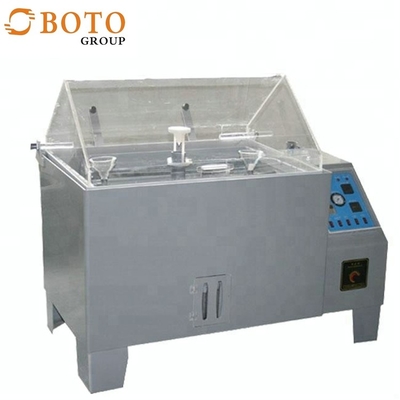

ASTM B117 Standard Cyclic Corrosion Test NSS Salt Spray Corrosion Test Machine Price

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-YSST-108
Minimum Order Quantity: 1set
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Sets per Month Salt Spray Corrosion Test Cabinet Salt Fog Corrosion Test Machine
Test Type:: NSS Test Overrall Size:: 1070*580*1030 Mm
Salt PH:: 6.5--7.2 Additional Function:: Temperature Humidity Test Together
Power:: Electronic Application:: Salt Spray Corrosion Test Machine
Internal Size:: 600*450*400 Mm Spray Volume:: 0.5---3.0
Controller:: Digital Type / Touch Screen Type Selling Units:: Single Item
Single Package Size:: 122X79X121 Cm Single Gross Weight:: 110.000 Kg
High Light:

ASTM B117 Cyclic Corrosion Test Chamber

,

NSS Cyclic Corrosion Test Chamber

,

NSS Salt Spray Corrosion Test Machine

ASTM B-117 Standard Cyclic Corrosion Test NSS Salt Spray Corrosion Test Machine Price



Product Description

What is metal coating salt spray test chamber?

Salt spray corrosion test machine is used to inspect salt corrosion ability of materials and protective layers through simulating ocean climate, compare process quality for similar protective layers.



How many test methods does salt spray test chamber have?



There are four test methods as following mentioned:

Technical parameters:



Model BT-YSST-108 BT-YSST-270 BT-YSST-600 BT-YSST-800 BT-YSST-1200
Inner chamber size W×H×D(cm) 60×45×40 90×60×50 120×80×50 160×100×50 200×100×60
Exterior chamber size W×H×D(cm) 107×58×103 138×80×115 170×95×121 225×120×125 265×120×135
Temperature range Box temperature Room temperature to +50℃,±0.5℃
Air saturation barrel Brine tank temperature~63℃,±0.5℃
Brine tank temperature Brine tank temperature~50℃,±0.5℃
Saturated air pressure(kgm2) 0.8~2.0
Mist volume(ml/80cm²/h) 0.5~3.0
PH Salt solution 6.5~7.2
PH value of Copper acetate 3.0~3.2
Material Exterior chamber material P.V.C&P.P
Interior chamber material P.V.C&P.P
System Spraying system Air acid (base)liquid
Heating system SUS#Stainless steel high-speed heater
Controller Hydrometer,salt meter,mist collector,glass bar
Other components Digital electronic indicator+SSR+PID
Safety device Over-heat protection circuit breaker, dehydration and over-heat prevention mechanism,overload indicator
Power supply AC 1phase 220V 50/60Hz
Customization service Non-standard or special requirements are all welcome





ASTM B-117 Standard Cyclic Corrosion Test NSS Salt Spray Corrosion Test Machine PriceASTM B-117 Standard Cyclic Corrosion Test NSS Salt Spray Corrosion Test Machine PriceASTM B-117 Standard Cyclic Corrosion Test NSS Salt Spray Corrosion Test Machine Price


Installation requirement for water and pressure

  • Water quality requirement: industrial water or tap water with filter(filtered water PH is 6.5~7.2 ), or use pure water(Attention: mineral water contains minerals and can not use).
  • pressure requirement: water pressure 1~3kg to ensure normal filling water.
  • interface requirement: water inlet need use hose to connect with seal ring fixed in order to prevent leakage.
