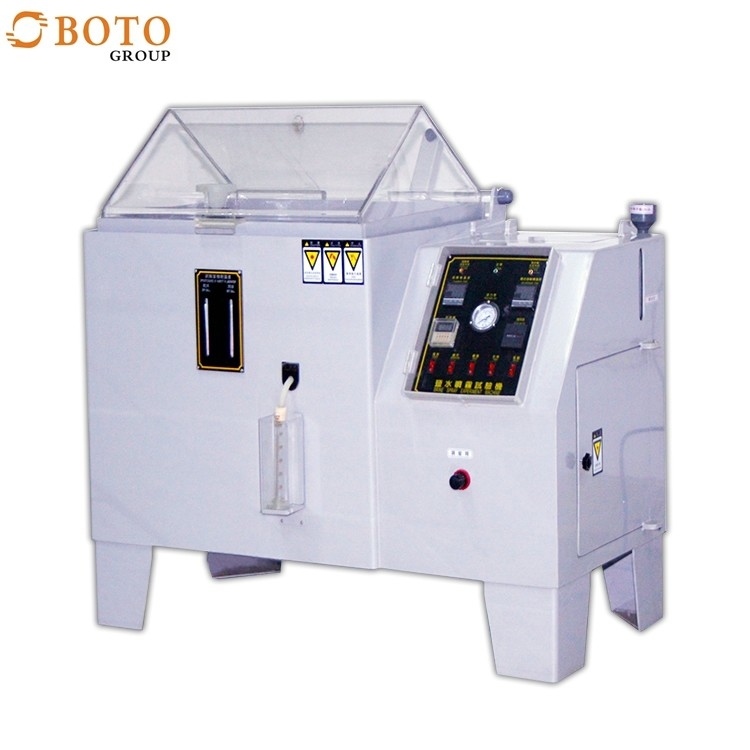

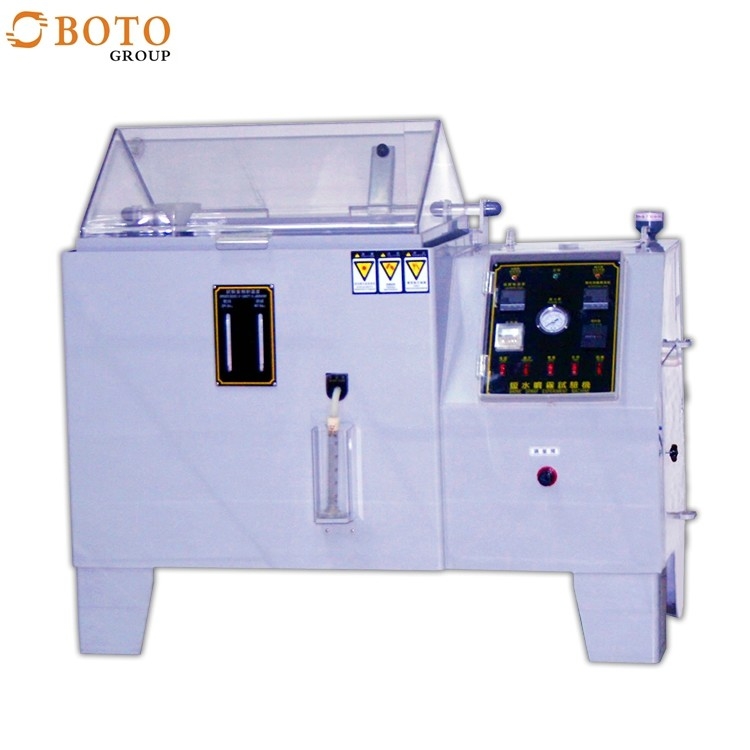

Salt Spray And Salt Fog Corrosion Test Chamber

Salt Spray And Salt Fog Corrosion Test Chamber
Salt Spray And Salt Fog Corrosion Test Chamber Salt Spray And Salt Fog Corrosion Test Chamber Salt Spray And Salt Fog Corrosion Test Chamber Salt Spray And Salt Fog Corrosion Test Chamber Salt Spray And Salt Fog Corrosion Test Chamber
Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-2001C
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T
Chat Now
Power:: Electronic Inside Box Size(cm):: 60*45*40/90*60*50/120*80*50
Salt Spray Test Chamber:: 108L Or Customized Brine Temperature:: 35±1 Degree Or 50±1 Degree
Spray Volume:: 1.0~2.0ml/80cm2/h
Highlight:

Salt Fog Corrosion Test Chamber

,

108L Corrosion Test Chamber

,

Anti Rust Corrosion Test Chamber

Salt Spray and Salt Fog Corrosion Test Chamber







Product Description



Equipment summary:

Salt spray testing machine used to test the corrosive resistance of products whose the surface was treated with paint, electroplating, inorganic and organic film, anode handling, anti-rust oil, etc.



Technical parameters:

Model BT-2001C BT-2001B BT-2001A
Inside box size (cm) 60x45x40 90x60x50 120x80x50
Outside box size (cm) 107x60x118 141x88x128 190x110x140
Testing room temperature Salt test (NSS ACSS)35±1 degree / Corrosion Test (CASS)50±1 degree
Pressure barrel temperature Salt test (NSS ACSS)47±1 degree / Corrosion Test (CASS)63±1 degree
Brine temperature 35±1 degree or 50±1 degree
Testing Room Capacity 108L 270L 480L
Brine tank capacity 15L 25L 40L
Salt concentration

The concentration of sodium chloride 5% or the 5% concentration of sodium

chloride add 0.26g per liter of copper chloride (CuCl2, 2H2O)
Air pressure 1.00±0.01kgf/cm²
Spray volume 1.0~2.0ml/80cm2/h (working at least 16 hours, and then take the average)
Testing room relative humidity 85% above
PH 6.5~7.2 3.0~3.2
Spray form Programmable spray (Including continuous and intermittent spray)
Power AC220V1Φ10A AC220V1Φ15A AC220V1Φ20A







Corresponding standard :

1. GB/T 2423.17-1993 salt spray test

2. GB/T 2423.18-2000 salt spray test

3. GB/T 10125-1997 salt spray test

4. ASTM.B117-97 salt spray test

5. JIS H8502 salt spray test

6. IEC68-2-11 salt spray test

7. IEC68-2-52 1996 salt spray test

8. GB.10587-89 salt spray test

9. CNS.4158 salt spray test

10. CNS.4159 CASS Accelerated acetic acid copper salt spray test

11. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test







Product details

Salt Spray And Salt Fog Corrosion Test Chamber 0Salt Spray And Salt Fog Corrosion Test Chamber 1





Salt Spray And Salt Fog Corrosion Test Chamber 2



Salt Spray And Salt Fog Corrosion Test Chamber 3

Salt Spray And Salt Fog Corrosion Test Chamber 4

Company introduction



Factory and offices

Salt Spray And Salt Fog Corrosion Test Chamber 5

Salt Spray And Salt Fog Corrosion Test Chamber 6

Salt Spray And Salt Fog Corrosion Test Chamber 7

Salt Spray And Salt Fog Corrosion Test Chamber 8

Salt Spray And Salt Fog Corrosion Test Chamber 9



Cooperatitive partners



Salt Spray And Salt Fog Corrosion Test Chamber 10
