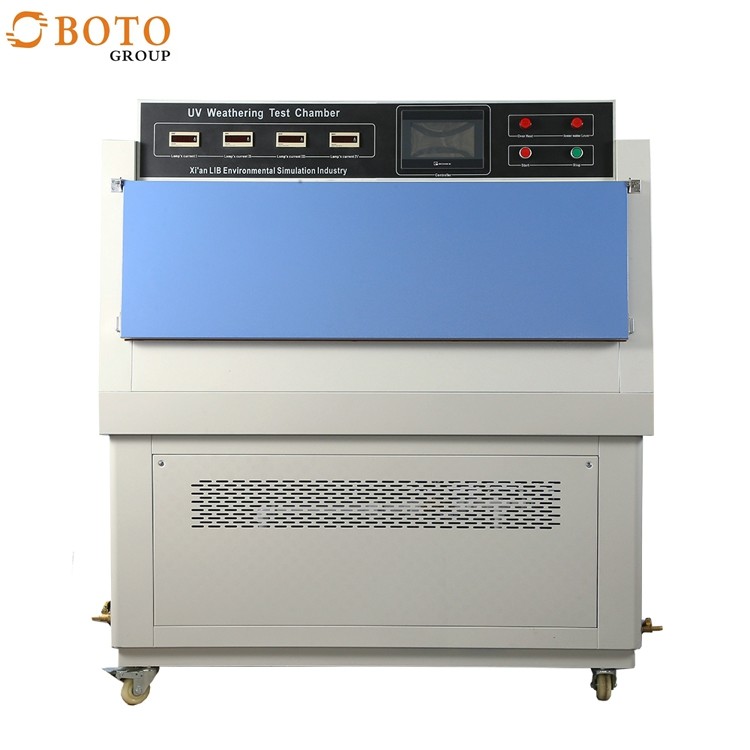

ASTM G154 Lab Weathering UVA Lamp Light Accelerated Aging UV Test Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-UV-260
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T
Supply Ability: Supply Ability 220 Set/Sets per Quarter
Power:: Electronic Workroom Dimensions:: 450*1170*500 Mm
Exterior Dimensions:: 580*1280*1350 Mm Humidity Range:: ≥95%R.H
Black Panel Temperature:: BPT 30~80℃ UV Wavelength:: 290 ~ 400nm
Lamp Spacing:: 35mm Controller:: Programmable Color Display Touch Screen Controller
High Light:

Lab Weathering Environmental Test Chambers

,

400nm UV Test Chamber

,

ASTM G154 Environmental Test Chambers

ASTM G154 Lab Weathering UVA Lamp Light Accelerated Aging UV Test Chamber





ASTM G154 Lab Weathering UVA Lamp Light Accelerated Aging UV Test Chamber





Advantage of Aging UV Test Chamber

● UVA lamp to test indoor product and UVB lamp to test outdoor product. Our product adopt QUV lamp made in USA, stable and easy to change.

● UV Irradiance Radiometer : Most supplier don't install radiometer,LIB installed it to control Irradiance.

● Most supplier adopt touch-tone, LIB adopt programmable color display touch screen, easy operate, easy to save data.

Applications of Aging UV Test Chamber

ASTM G154 Lab Weathering UVA Lamp Light Accelerated Aging UV Test Chamber 0

Specifications of Aging UV Test Chamber

Product Name
ASTM G154Lab Weathering UVA Lamp Light Accelerated Aging UV Test Chamber
Model
BT-UV-260
BT-UV-SI-260
Internal dimensions (mm)
450*1170*500
450*1170*500
Overall dimensions (mm)
680*1300*1500
680*1300*1500
Capacity of test specimens
48 pieces Individual specimen size is 75mm * 150mm
48 pieces Individual specimen size is 75mm *150mm
Controller
Programmable color display touch screen controller
Programmable color display touch screen controller
Temperature range
Ambient~90℃ ±2℃
Ambient~90℃ ±2℃
Humidity range
≥95%R.H ±2%R.H
≥95%R.H ±2%R.H
Black Panel Temperature
BPT 30~80℃
BPT 30~80℃
Irradiation Source
Fluorescent UV lamps (8) - 40 W
Fluorescent UV lamps (8) - 40 W
UV wavelength
290 ~ 400nm
290 ~ 400nm
Irradiance Control
N/A
0.3 ~ 20 W/㎡(340 nm / 313 nm)
Water Spray
Spraying water
Spraying water
Distance of Specimen and lamp
50mm
50mm
Nominal power
5000W
5500W
Power Supply
380V 50HZ
380V 50HZ

ASTM G154 Lab Weathering UVA Lamp Light Accelerated Aging UV Test Chamber 1



Details of Aging UV Test Chamber

ASTM G154 Lab Weathering UVA Lamp Light Accelerated Aging UV Test Chamber 2

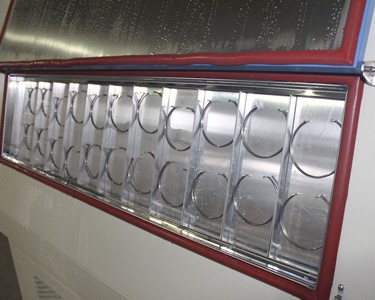

Test Area

● Flat Specimen Holders, aluminum panels with rings. each specimen size is 75mm * 150mm, can hold 48 pieces of specimens.

● Special Specimen Holder, customize special holder according to different specimens.

● 10 nozzles are installed in the water-spraying pipe.

Automatic water supply.
● UV chamber adopt QUV lamp made in USA, the lamp is more stable.

ASTM G154 Lab Weathering UVA Lamp Light Accelerated Aging UV Test Chamber 3

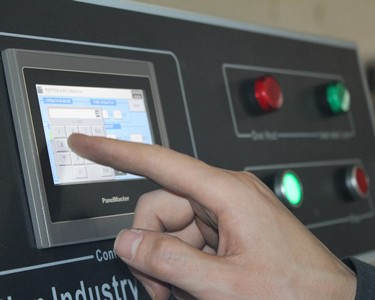

Control Panel

● Programmable color display touch screen controller.

● Ethernet interface, USB interface, APP, connect with PC for easy operate.

Measure and display temperature, humidity, water spraying, black panel temperature and irradiance.
● Show status and working time of 8 UV lamps.

Multi-language system: English, Polish language, Turkish, Portuguese, Spanish, French, Russia, Chinese.

ASTM G154 Lab Weathering UVA Lamp Light Accelerated Aging UV Test Chamber 4

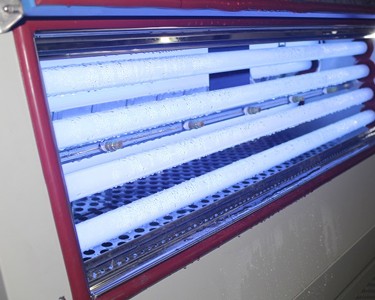

Irradiation Source - UV Lamp

● Chamber equipped with 8 pieces of fluorescent UV lamps.
● 1 of UV Lamp Power is 40 W.
● Lamp length: 1160 mm.
● UV lamp service life is 1200 hours.

ASTM G154 Lab Weathering UVA Lamp Light Accelerated Aging UV Test Chamber 5

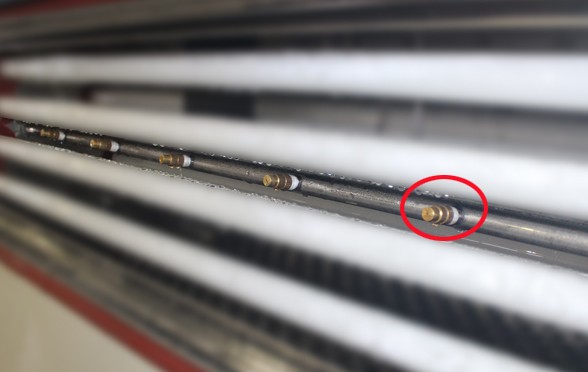

Spraying Water

● 10 nozzles are installed in the water-spraying pipe. Each side is 5 nozzles.

● The diameter of the nozzle is 0.5mm.

● The settlement is 0.8-1.0mm /80Cm2/H. The flow is about 0.3l /min.

● Automatic water supply.
