Power:: | Electronic | Temperature Range:: | 0℃-150℃ |
---|---|---|---|
Humidity Range:: | 20%R.H-98%R.H | Fluctuation/Uniformity:: | ±0.5℃/±2℃ |
Heating Rate:: | 1℃/min-3℃/min | Cooling Rate:: | 0.7℃/min-1℃/min |
Sensors:: | Platinum Resistance. PT100Ω/MV | Circulation System:: | Multi-lobe Centrifugal Wind Turbine |
Usage Environment Temp:: | 5℃~+30℃ ≤85%R.H | ||
High Light: | Climatic Lab Environmental Test Chambers,Platinum Resistance Environmental Test Chambers,AC110V Environmental Test Chambers |

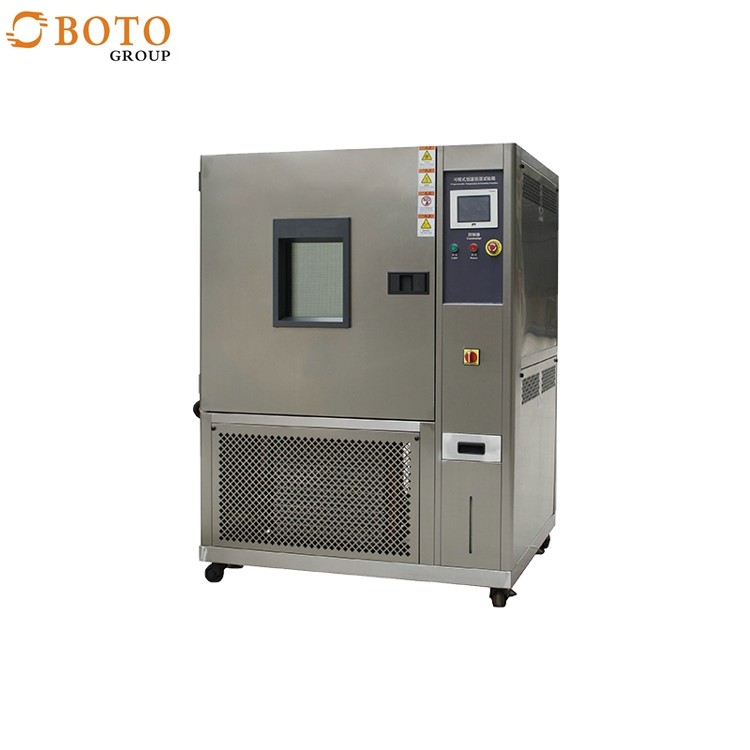

Climatic Lab Constant Low Temperature And Humidity Test Chamber
Temperature Range | 0℃~150℃ |
Humidity range | 20% R.H~98%R.H |
Fluctuation/Uniformity | ±0.5℃/±2℃ |
Heating rate | 1℃/min~3℃/min |
Cooling rate | 0.7℃/min~1℃/min |
Accuracy range | Setting accuracy: temperature 0.1℃, humidity 1% R.H, indication accuracy: temperature 0.1℃, humidity 1% R.H |
Sensors | Platinum resistance. PT100Ω/MV |
Humidification system | External isolation type, all stainless steel shallow surface evaporative humidifier |

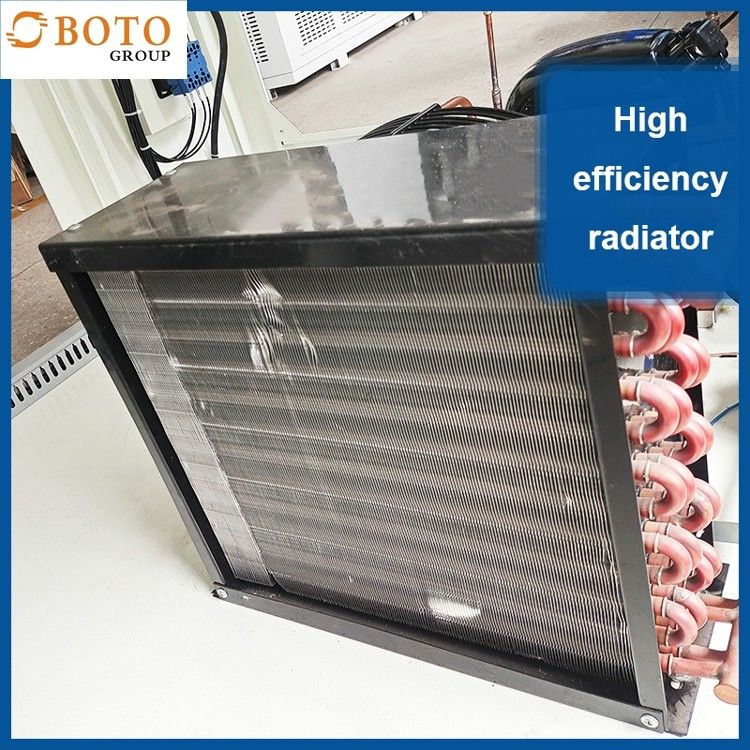

Dehumidification system | Using evaporator coil dew point temperature laminar flow contact dehumidification method |
Water supply system | Humidification water supply is automatically controlled. And can recycle the remaining water. Save water and reduce consumption |
Circulation System | Temperature-resistant and low-noise air-conditioning type motor. Multi-lobe centrifugal wind turbine |
Standard configuration | 1 set of illuminated glass window, 2 specimen holders, 1 test lead hole (25, 50, 100mm) |
Security Protection | Leakage, short circuit, over temperature, water shortage, motor overheating, compressor over pressure, overload, over current protection/controller power failure memory |
Voltage | AC110V/AV220V/AC380V/415V±10% 50±0.5Hz Three-phase five-wire system |
Usage Environment temp | 5℃~+30℃≤85%R.H |
This product is simulated GB / T9596-2006 test box technical conditions GB / T9599-2009 low-temperature test box technical conditions GB / T 9592-2009 high and low-temperature test box technical conditions GB / T9159-2009 High temperature test box technical conditions
Mainly for aerospace, aviation, petroleum, chemical, military, automobile ( motorcycle ), ships, electronics, communications, and other scientific research and production units to provide temperature and humidity change environment, simulation test under the condition of temperature and humidity change environment loading simulation vibration adaptability test and the safety test of electronic components to provide reliability test, product screening.
All sizes of products can be customized.
