| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE ISO |
| Model Number: | BT-U113 |
| Minimum Order Quantity: | 1set |
| Packaging Details: | wooden case |
| Delivery Time: | 5-25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Set/Sets per Month |
| Power: | Electric | Temp. Uniformity:: | ±1℃ |
|---|---|---|---|
| Temp. Control Mode:: | PID Self-adjustable SSR Control | Temp. Fluctuation:: | ±0.5℃ |
| Distance Between Lamps:: | 70mm | Distance Between Samples And Lamps:: | 50mm±3mm Adjustable |
| Irradiation Level:: | ≤1.0W/m2 Adjustable | ||
| High Light: | Programmable UV Accelerated Weathering Tester,Environmental Resistant Accelerated Weathering Tester,Touch Screen Aging Test Chamber |
||
Environmental Resistant Programmable UV Accelerated Weathering Tester Touch Screen Aging Test Chamber
1. The UV Accelerated weathering test chamber stimulates dew and rain with consideration for humidity and/or water spray equipped with fluorescent UV lamps which can completely simulate the UV spectra of sunlight, exposes materials to alternating cycles of UV light and moisture at controlled, elevated temperatures. It's most widely used weathering tester to test types of damages include color change, gloss loss, chalking, cracking, crazing, hazing, blistering, strength loss and oxidation. The source adopts 8 pieces of UV lamps of 40W as the light source. The lamps are distributed on the two sides of machine, 4 pieces for each side (UVA-340 and UVB-313 optional), 8 pieces in total
| (1) Main technical parameters | |
| Item | Uv Simulation Environment Test Chamber |
| Model | HST-U113 |
| Interior size | W1150 X H500 x D500mm |
| Exterior size | W1350 X H1560 x D600mm |
| Weight | 160kgs appr. |
| Controller |
- LCD 7-inch touch screen controller, with programmable temp., humid., UV(sun), and time and Fix mode of 2 running modes. - USB interface - Operation button - Alarm indicator - Irradiation timer |
| Temp. control mode | PID self-adjustment SSR control |
| Temp. range | RT+10℃ ~ 70℃ (adjustable) |
| Temp. deviation | ±2.0℃ |
| Temp. fluctuation | ±0.5℃ |
| Humidity range | ≥93%R.H (not adjustable) |
| Temp. uniformity | ±1℃ |
| Temp. fluctuation | ±0.5℃ |
| Distance between lamps | 70mm |
| Distance between samples and lamps | 50mm±3mm adjustable |
| Irradiation level | ≤1.0W/m2 adjustable |
| Irradiation lamp |
UVA-340 Lamp, L=1200/40W, 8pcs (average service life: 1200hrs)
UVA-340: 315 ~ 400nm; (UVB-313 lamps is optional) |
| Temp. control method | PID self-adjustable SSR control |
| Depth of water channel | 25mm under auto-control |
| Test time | 0~999 H 99 min (adjustable) |
| Function | Temperature, light irradiation, condensation, spray test cycle is adjustable |
| Black board Temp. | 50℃ ~ 70℃ (temperature inside the chamber plus 20℃ ~ 25℃) |
|
Irradiance probe (Optional to purchase) |
Monitoring the real-time irradiance |
| (2) Structure & Material | |
|

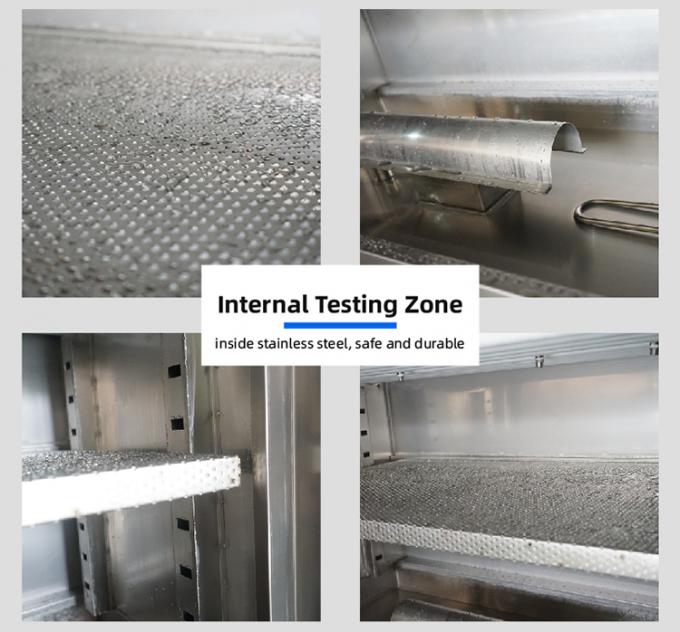

a) Structure: The middle of the machine is the working chamber, the water system located at the bottom of machine, its top is the control cabinet and control panel. Open the door from front direction. The bottom of the chamber with high-quality PU activity wheel that can be fixed, users can move it according to their requirements positioning. - Single cycling system for air flue in the box, there's one inlet axis weeding machine which improves the flow amount of air, the heating ability and the whole temperature uniformity in the test machine. - Water source and consumption: Tap water or distilled water for 8liters per day. - Heating method is to heat liner water tank with fast heating speed and high temperature uniformity. b) Material: - Inner box: high grade stainless steel plate - Outer box: stainless steel plate SUS304 or stoving varnish for option. |
|
2. GB/T14552-2008 "National Standard of the People's Republic of China - Plastics, Coatings, Rubber Materials for Machinery Industry - Artificial Climate Accelerated Test Method", a, fluorescent UV / condensation test method.
GB/T16422.3-1997 GB/T16585-96 Relevant analytical methods.
GB/T16585-1996 "National Standard of the People's Republic of China - Test Method for Artificial Weathering of Fluorinated Rubber (Fluorescent UV Lamp)".
GB/T16422.3-1997 "Plastics Laboratory Light Source Exposure Test Method" and other corresponding standard terms and design standards.
In line with international testing standards: current ultraviolet aging test standards such as ASTM D4329, ISO 4892-3, ISO 11507, SAE J2020.
