High Altitude Low Pressure Simulation Test Chamber Climate Chamber With Humidity Control

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-E714
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Power:: Electronic Temperature Range:: -40~+100℃
Temperature Fluctuation:: ±0.5℃ Temperature Uniformity:: ±2℃
Cooling Speed:: 1℃/min In Average Humidity:: 20 To 98% RH, Without Loading
Humidity Fluctuation:: ±2.5% Humidity Uniformity:: ±3%
Pressure Fluctuation:: ±5%
High Light:

High Altitude Environmental Simulation Chamber

,

SS304 Environmental Simulation Chamber

,

Mirror Finished Environmental Simulation Chamber

High Altitude Low Pressure Simulation Test Chamber Climate Chamber With Humidity Control



Products Description

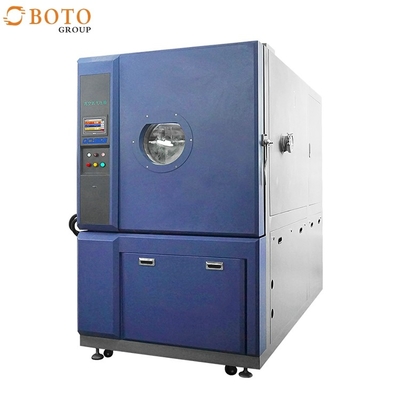

High Altitude Low Pressure Simulation Test Chamber Climate Chamber With Humidity Control 0





High altitude low pressure simulation test
chamber can combine temperature and altitude environment with optional humidity for simultaneous environmental testing. It’s used in aerospace,communications,
information,electronics,electrical and so on.
This combination of elements allows precise
simulation of real-life condition a product might encounter at various altitude levels.
Details Images
High Altitude Low Pressure Simulation Test Chamber Climate Chamber With Humidity Control 1



Programmable Control System

High Altitude Low Pressure Simulation Test Chamber Climate Chamber With Humidity Control 2



Circuit Board

High Altitude Low Pressure Simulation Test Chamber Climate Chamber With Humidity Control 3



Test hole

High Altitude Low Pressure Simulation Test Chamber Climate Chamber With Humidity Control 4



Observation Window

Product Paramenters
Item
Specification
Internal dimension (W*D*H)
600*600*600mm
Internal material
#304 stainless steel, mirror finished
External material
Stainless steel with paint spray
Temperature range
-40~+100℃
Temperature fluctuation
±0.5℃
Temperature uniformity
±2℃
Cooling speed
1℃/min in average (without loading)
Heating speed
3℃/min in average (without loading)
Humidity
20 to 98% RH, without loading
(temperature from +20℃ to +85℃)
Humidity fluctuation
±2.5%
Humidity uniformity
±3%
Controller
TATO PLC touch screen controller,
With RS232 and USB port, APP remote control function
Vacuum range
Ordinary pressure ~ 1Kpa
Pressure fluctuation
±5%
Decompression time
≤10min
