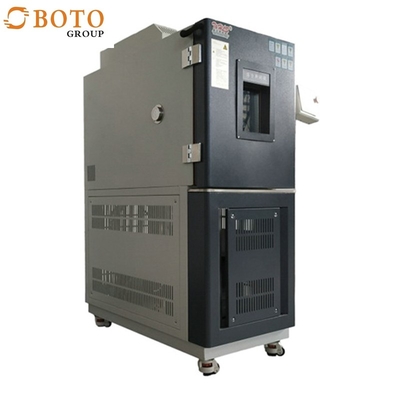

Environmental Control Temperature Humidity Simulation High Altitude Low Pressure Temperature Humidity Test Chamber

Environmental Control Temperature Humidity Simulation High Altitude Low Pressure Temperature Humidity Test Chamber
Environmental Control Temperature Humidity Simulation High Altitude Low Pressure Temperature Humidity Test Chamber Environmental Control Temperature Humidity Simulation High Altitude Low Pressure Temperature Humidity Test Chamber Environmental Control Temperature Humidity Simulation High Altitude Low Pressure Temperature Humidity Test Chamber Environmental Control Temperature Humidity Simulation High Altitude Low Pressure Temperature Humidity Test Chamber Environmental Control Temperature Humidity Simulation High Altitude Low Pressure Temperature Humidity Test Chamber
Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-TGDW-100
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Power:: Electronic Power Supply:: 220v 50Hz
Temperature Fluctuation:: ≤±0.5℃ Temperature Evenness:: ≤2℃
Workshop Size:: 400*500*500mm Accuracy: 0.1℃ (standard)
1.0℃~3.0℃/min: 1.0℃~3.0℃/min Temperature Down Speed: 0.7℃~1.2℃/min
Time Needed For Heating: RT℃~150℃≤30min Time Needed For Cooling: RT℃~-40℃≤30min
The Machine Noise: ≤72dB(A)
Highlight:

100L Humidity Test Chamber

,

Environmental Control Humidity Test Chamber

,

220v Humidity Test Chamber

Environmental Control Temperature Humidity Simulation High Altitude Low Pressure Temperature Humidity Test Chamber




Specifications
High -low temperature chamber

BT-TGDW-100UA
BT-TGDW-150UA
BT-TGDW-250UA
BT-TGDW-500UA
BT-TGDW-010UA
Workroom Dimensions(cm)
50*40*50
50*50*60
60*60*70
80*70*90
100*100*100
Inner chamber volume(v)
100L
150L
252L
504L
1000L
Outer Diemension W*D*H(cm)
98*95*160
98*105*170
108*112*180
128*125*200
148*155*210
Packing Size
113*110*175
113*120*185
123*127*195
133*140*215
163*160*225
G.W(kg)
340
370
430
460
600
Temperature Range
A:-20℃-150℃ B:-40℃-150℃ C:-60℃-150℃ D:-80℃-150℃
TemperatureFluctuation
≤ ±0.5℃ (standard)
Temperature Evenness
≤ ±2℃
Temperature Deviation
≤ 1℃
Accuracy
0.1℃ (standard)
Temperature Rise Speed
1.0℃~3.0℃/min
Temperature Down Speed
0.7℃~1.2℃/min
Time needed for heating
RT℃~150℃≤30min
Time needed for cooling
RT℃~-40℃≤30min
The machine noise
≤72dB(A)
Load on the largest
100kg,≤20 kg/layer
150kg,≤26 kg/layer
260kg,≤30 kg/layer
260kg,≤40 kg/layer
300kg,≤60 kg/layer
Equipment installed power
~1.95KW
~2.35KW
~2.85KW
~3.5KW
~4.35KW
Material
The studio:# SUS304 stainless steel
The outer wall:A3 carbon steel plate with plastic spray/ #SUS304
Wind Cycling Way
Centrifugal fan-broadband type forced air ciruculation
Refrigeration Way
Single stage compression refrigeration
Refrigerater
French Tecumseh
Refrigerats
R404A USA Dupont environment protection refrigerant
Condesing Way
Air-cooled or water-cooled
Heater
Nickel Chorme Heating Wire Heater
Control Instrument
HLS touch screen
Design Criteria
GJB150.3 GJB150.4 GB/T2423.22 GB10589-89 GB11158-89
Standard Accessories parts
Observe window(double-deck cavity toughened glass),PL inner chamber,Wet and dry bull gauze, 3 fues, 1 power line



Products Description
Environmental Control Temperature Humidity Simulation High Altitude Low Pressure Temperature Humidity Test Chamber 0





Company introduction



Environmental Control Temperature Humidity Simulation High Altitude Low Pressure Temperature Humidity Test Chamber 1

Environmental Control Temperature Humidity Simulation High Altitude Low Pressure Temperature Humidity Test Chamber 2

Environmental Control Temperature Humidity Simulation High Altitude Low Pressure Temperature Humidity Test Chamber 3

Environmental Control Temperature Humidity Simulation High Altitude Low Pressure Temperature Humidity Test Chamber 4

Environmental Control Temperature Humidity Simulation High Altitude Low Pressure Temperature Humidity Test Chamber 5

Environmental Control Temperature Humidity Simulation High Altitude Low Pressure Temperature Humidity Test Chamber 6

Environmental Control Temperature Humidity Simulation High Altitude Low Pressure Temperature Humidity Test Chamber 7



Environmental Control Temperature Humidity Simulation High Altitude Low Pressure Temperature Humidity Test Chamber 8

Environmental Control Temperature Humidity Simulation High Altitude Low Pressure Temperature Humidity Test Chamber 9
