2000KN Hydraulic Power Concrete Cube Press Testing Machine ISO ASTM Standard

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: YAW Series, YES Series
Minimum Order Quantity: 1set
Price: Negotiated
Packaging Details: export stanard wooden case. factory price 2000kN hydraulic power concrete cube press testing machine ISO ASTM standard
Delivery Time: 1-15 days,to be negotiated
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Week
Max. Test Force: 3000 KN Accuracy Class: 1 Class
Measurement Range Of Force Value: 4%-100% FS Test Force Accuracy: ±1%
Screw Type: Electric Screw, Manual Screw Piston Diameter: 310 Mm
Piston Stroke: 40 Mm, 100mm Motor Power: 0.75 KW, 1.1kW
Weight: 1600kg, 2500kg
High Light:

2000KN Hydraulic Environmental Test Chambers

,

ASTM Hydraulic Environmental Test Chambers

,

Cube Press Environmental Test Chambers

2000kN hydraulic power concrete cube press testing machine ISO ASTM standard





Product Description



1. Usage

This machine is mainly used for the compression strength test of brick, stone, cement, concrete, etc, also it can be used for other material’s compressive performance test.



2. Technical Parameter



Name Concrete cube compression testing machine 1000KN 2000KN 3000KN
Model BT-YAW-1000,BT-YAW-2000,BT-YAW-3000,BT-YES-1000,BT-YES-2000,BT-YES-3000
Max. test force 3000 kN
Accuracy class 1 class
Measurement range of force value 4%-100% FS
Test force accuracy ±1%
Screw type Electric screw, Manual screw
Piston diameter 310 mm
Piston stroke 40 mm, 100mm
Motor Power

0.75 kW, 1.1kW



Weight 1600kg, 2500kg





3. Characteristics



Hydraulic System:

The hydraulic oil in the oil tank move into the oil line through motor drive the high pressure pump, it will pass through the single-way valve, high pressure filter,differential pressure valve group, servo valve and move into the oil pump.The computer gave signal to the servo valve to control the servo valve’s opening and direction and then to control flow to the oil pump and realize the constant speed test force control.

ƒ Control System

The system include the digital servo valve, high precision transducer, controller and software,it is high precision and good reliability. It can meet the standard of GB, ISO, ASTM’s requirements to the cement, sand pulp and concrete material.

The system has the following functions:

The force closed loop control function;

It can realize the equal load rate and stress rate loading;

With computer control to realize the electronic measurement and finish the test automatically.

The test results can be calculated and printed by computer automatically.

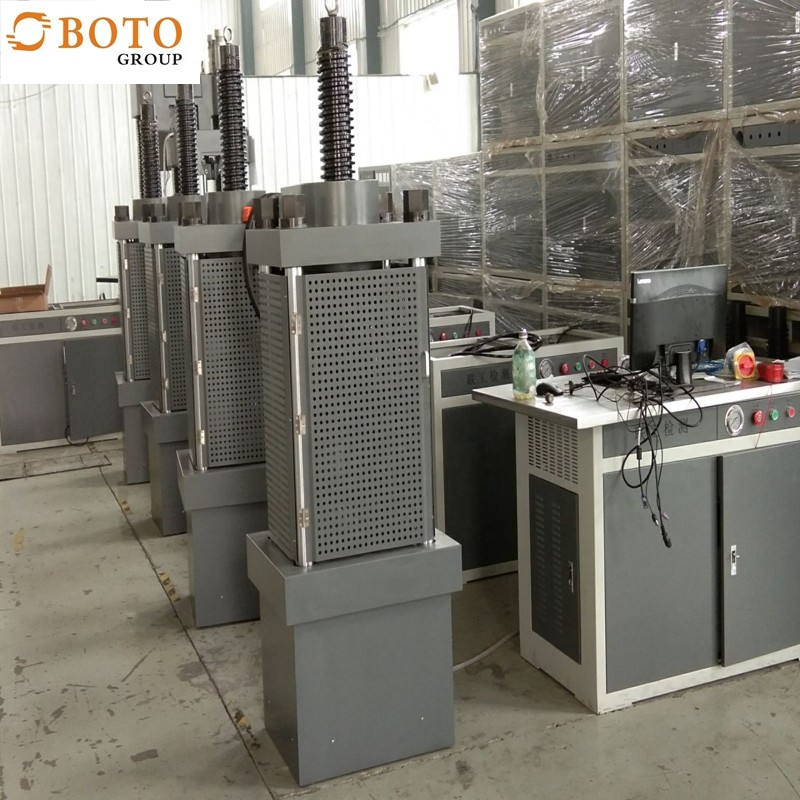

2000KN Hydraulic Power Concrete Cube Press Testing Machine ISO ASTM Standard 0

Our Services

Warranty:

The testing machine is guaranteed for a year by BOTO GROUP LTD. and has whole-life service (including machinery, clamps, hardware, software.



Training:

1. We will provide you the operation video about how to install and operate the equipment. We also sincerely welcome every customer to visit and learn the equipment operation.

2. We can arrange engineer to train the operation of equipment to customer's company when you need.



Maintenance services:

Consultation services. We answer your question timely via the telephone or email.

Our exquisite technology, excellent quality, competitive price, good service and you give us the concern and support, there will be enjoyable and long-term friendly cooperation.
