| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE ISO |
| Model Number: | BT-Y-300 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiated |
| Packaging Details: | Strong standard wood case, inner plastic films wrapped for Latest Used Concrete Compression Test Machine,Concrete Compression Testing Machine |
| Delivery Time: | 1-15 days,to be negotiated |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 80 Unit/Units per Month |
| Standard Power:: | 220V/50Hz/1 Phase | Power:: | Electronic |
|---|---|---|---|
| Max Test Force:: | 300KN | Min Test Force:: | 3KN |
| Test Force Accuracy:: | <=0.01 | Compression Platen Diameter:: | 230mm (can Be Custom) |
| Hydraulic Pump Rating Pressure:: | 50mm/min | The Pressure Plate Size:: | Diameter155mm |
| High Light: | 300KN Concrete Compression Machine,50mm/Min Concrete Compression Machine,Dia 230mm Concrete Compression Machine |
||

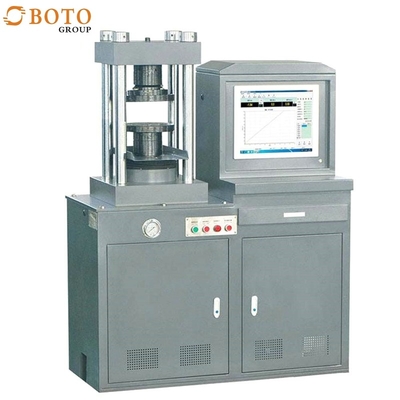

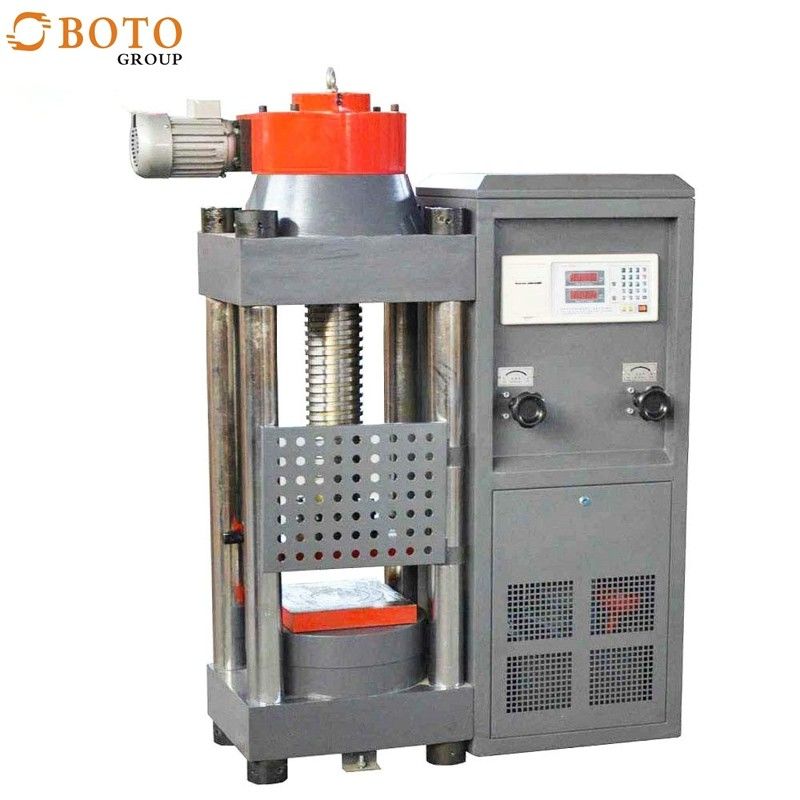

Introduction:
Latest Used Concrete Compression Test Machine,Concrete Compression Testing Machine Price,Concrete Testing Equipment
adopts hydraulic system host and set in the integration of structure form, structure is compact, small and exquisite. Adopts hydraulic loading, electronic load, display the loading rate, peak holding, etc, and is equipped with a micro printer. The machine is suitable for cement compressive strength, building mortar compressive strength test, can also be used for the four-point bending test of concrete.
Hydraulic system
Hydraulic oil in this tank through motor driven high pressure pump into the oil, the oil flows back to the valve and into the cylinder. Force measuring instrument analysis of data gathered by sensors, display all the time force value, the operator through the oil valve to control flow, realize the test force rate of speed.
The force measurement system
Manually adjust back to the oil valve, concise and flexible operation;
Has the largest load peak value holding function;
Has the function of loading rate, dynamic display;
Has the test date, serial number, failure load, compressive strength and other randomized trials report.
Safety protection device
When the test force by more than 3% of the maximum test force, overload protection, the oil pump motor downtime.
Technical Parameter
| The maximum test force | 300KN |
| Test force range | 10%-100% |
| Test force shows value relative error | < ±1% of the shows value |
| The Max. spacing between upper and lower pressure plate | 230mm |
| Piston stroke | 80mm |
| Hydraulic pump rating pressure | 25MPa |
| The pressure plate size | Φ155mm |
| Piston diameter | φ125mm |
| Dimension | 850*620*1340mm |
| Power of motor | 0.75kW |
| Weight | 500kg |
Main configuration
| Name | Qty | Note |
| Tester | 1set | Including motor, oil pump, the valve |
| Force measuring instrument | 1set | On the host, including the micro printer |
| Pressure sensor | 1pc | |
| Concrete flexural assistive devices | 1set | ---------- |
| Pressure up and down plate | 1set | ---------- |
(1). Strong standard wood case, inner plastic films wrapped for Latest Used Concrete Compression Test Machine,Concrete Compression Testing Machine Price,Concrete Testing Equipment
(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.
