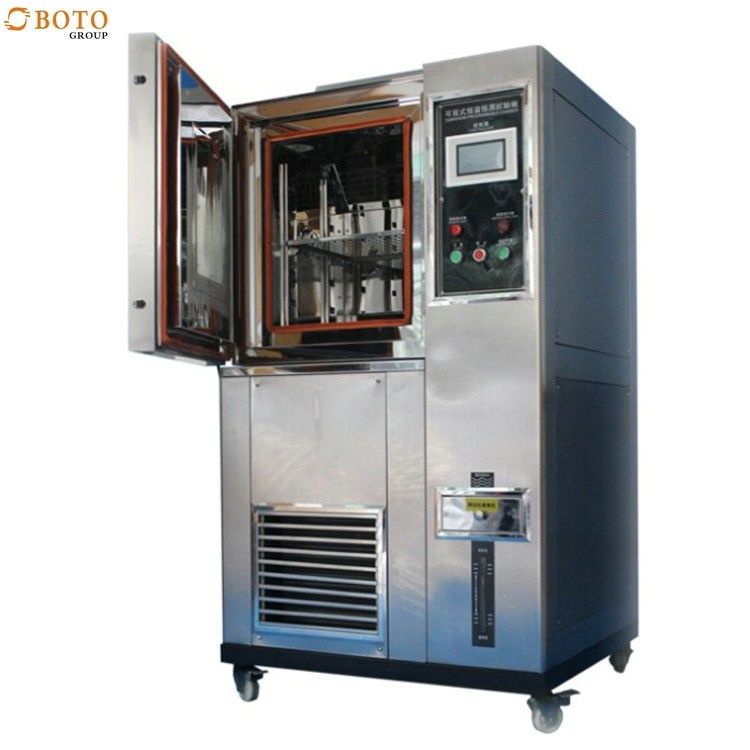

Programmable Constant Temperature Humidity Test Chamber High-Low Temperature Test Chamber

Programmable Constant Temperature Humidity Test Chamber High-Low Temperature Test Chamber
Programmable Constant Temperature Humidity Test Chamber High-Low Temperature Test Chamber Programmable Constant Temperature Humidity Test Chamber High-Low Temperature Test Chamber Programmable Constant Temperature Humidity Test Chamber High-Low Temperature Test Chamber Programmable Constant Temperature Humidity Test Chamber High-Low Temperature Test Chamber Programmable Constant Temperature Humidity Test Chamber High-Low Temperature Test Chamber
Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-T-80A
Packaging Details: Export Standard Carton Case For temperature humidity test chamber
Contact Now
Power:: 220V 4KW Temperature Range:: -70℃~+150℃ (can Be Customized)
Humidity Range:: 20% ~ 98% RH Internal Dimension (mm):: 400*400*500 (have Other Sizes)
Heating Time:: 3 ° C / Min (average Heating Rate) Cooling Time:: 1 °C / Min (average Cooling Rate)
Outer Box Size:: 900 X 850 X 1700 Mm ( W * D * H) Temperature Fluctuation:: ≤0.5°C
Weight:: 180KG
High Light:

Programmable Constant Temperature Test Chamber

,

4KW Constant Temperature Test Chamber

,

SUS304 Temperature Test Chamber

Programmable Constant Temperature Humidity Test Chamber/High-low Temperature Test Chamber Manufacturer



This test equipment is suitable for:
Electrical, electronic products, components, components and materials are stored in high and low temperature environments

Adaptability tests for storage, transportation and use.



The following actions are prohibited:

* Testing or storage of flammable, explosive, volatile materials

* Testing or storage of corrosive substance samples

* Testing or storage of biological samples

* Testing or storage of samples of strong electromagnetic emission sources

* Testing or storage of radioactive material samples

* Testing or storage of highly toxic substances

* Testing or storage of specimens that may cause flammable, explosive, volatile, highly toxic, corrosive and radioactive materials during testing or storage



Programmable Constant Temperature Humidity Test Chamber/High-low Temperature Test Chamber Manufacturer:





Model BT-T-80 BT-T-150 BT-T-225 BT-T-408 BT-T-800 BT-T-1000
(A~D) (A~D) (A~D) (A~D) (A~D) (A~D)
Inside size WxHxD (cm) 40x50*40 50x60x50 50x75x60 60x85x80 100x100x80 100x100x100
Humidity deviation ± 2.5% RH
Temperature range -70 degree ~ +100(150) degree
(A:-40 degree B:-50 degree C:-60 degree D:-70 degree)
Humidity range 20%~98%R.H.
Temperature fluctuations ± 0.5 ℃
Temperature deviation ± 2.0 ℃
Heating / cooling time About 3.0/min(heat), about 1.0/min(cool)
Inside material Stainless steel SUS 304 #
Insulation material High-temperature high-density amino acid ethyl ester foam insulation materials,
Program capacity (touch type)
1. Program: 10 groups maximum
2. Number of segments: up to 120 segments
3. Number of cycles: maximum infinite loop
Protection 1. Fault alarming, showing the reason of fault and how to solve the problem
2. Power failure protection function
3. Upper and lower temperature protection function
4. Calendar timing function (automatic start and automatic stop operation)
5. Self-diagnosis function
Power 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz




Programmable Constant Temperature Humidity Test Chamber High-Low Temperature Test Chamber 0

Programmable Constant Temperature Humidity Test Chamber High-Low Temperature Test Chamber 1

Programmable Constant Temperature Humidity Test Chamber High-Low Temperature Test Chamber 2

Programmable Constant Temperature Humidity Test Chamber High-Low Temperature Test Chamber 3

Programmable Constant Temperature Humidity Test Chamber High-Low Temperature Test Chamber 4

Programmable Constant Temperature Humidity Test Chamber High-Low Temperature Test Chamber 5

Packing & Shipping

Programmable Constant Temperature Humidity Test Chamber High-Low Temperature Test Chamber 6
