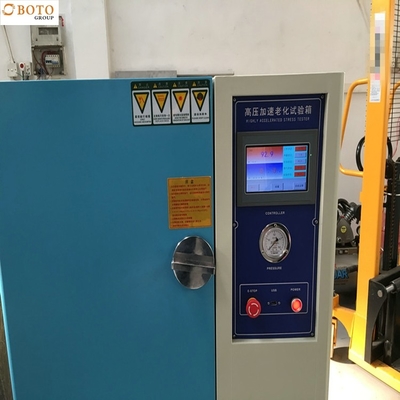

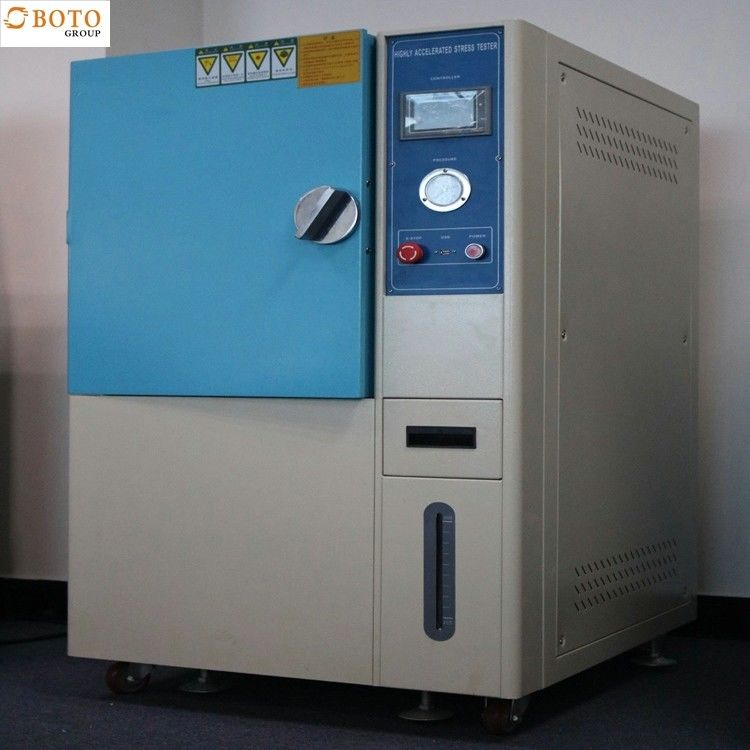

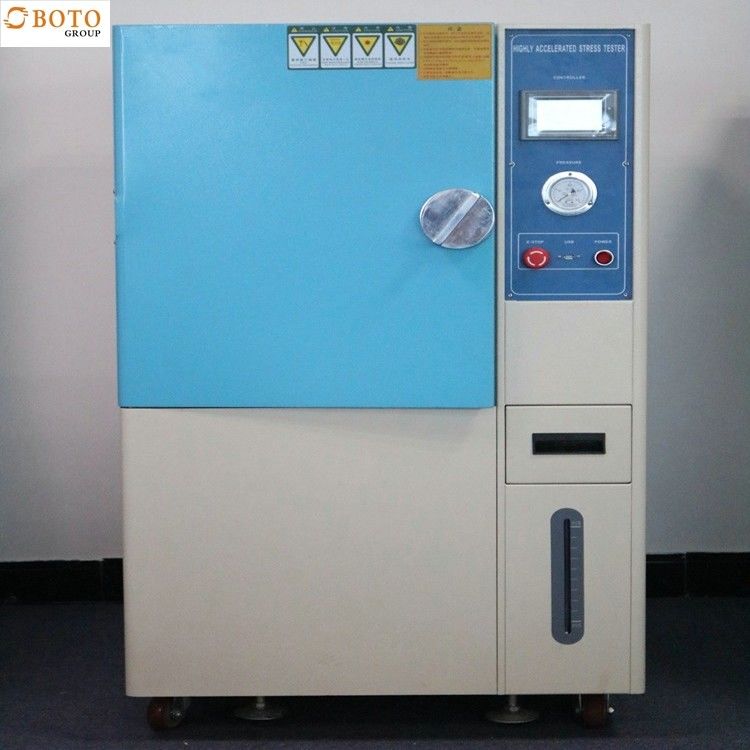

High Pressure Accelerated Aging Testing Machine / PCT Chamber

High Pressure Accelerated Aging Testing Machine / PCT Chamber
High Pressure Accelerated Aging Testing Machine / PCT Chamber High Pressure Accelerated Aging Testing Machine / PCT Chamber High Pressure Accelerated Aging Testing Machine / PCT Chamber High Pressure Accelerated Aging Testing Machine / PCT Chamber High Pressure Accelerated Aging Testing Machine / PCT Chamber
Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-PCT-300
Minimum Order Quantity: 1set
Price: Negotiated
Packaging Details: standard wooden cases
Delivery Time: 1-15 days,to be negotiated
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Contact Now
Power:: Electronic Internal Dimension:: 300*500(mm)
Heating Up Time:: RT~+147℃ About 55min Power Supply:: AC220V/AC380V
Temperature Range:: 100℃~+147℃ Temperature Fluctuation Degree:: ±0.5℃
Temperature Deviation:: ±2.0℃ Humidity Range:: 75%~100 %R.H . ( Control Point )
Humidity Uniformity:: ±3.0%.
Highlight:

PCT Accelerated Aging Testing Machine

,

Accelerated Aging Testing PCT Chamber

,

300*500MM Aging Testing PCT Chamber

High Pressure Accelerated Aging Testing Machine / PCT Chamber



Product description



Application:
Pressure accelerated aging tester is widely applied to the testing of sealing property for multi-layer circuit board, IC sealing package, LCD screen, LED, semi-conductor, magnetic materials, NdFeB, rare earths and magnet iron, in which the resistance to pressure and air tightness for above mentioned products can be tested out.



High Pressure Accelerated Aging Testing Machine / PCT Chamber 0





Model BT-PCT-300 BT-PCT-400
Internal Dimension Φ*D(mm) 300×500 400×550

External Dimension

W*H*D(mm)

 800*1360*900 900*1460*950
Steam Temperature Range

Heating up time:RT→+ 147℃ about 55min Temperature Range:100℃→+147℃.( control point )

Temperature fluctuation degree:±0.5℃. Temperature deviation:±2.0℃.
Humidity range 75%~100 %R.H . ( control point ) Humidity fluctuation :±2.5 %R.H.
Humidity uniformity ±3.0%.

Comparison Table

of Temperature,

Humidity,

Pressure

 High Pressure Accelerated Aging Testing Machine / PCT Chamber 1
Steam Pressure 0.5~2.0kg/cm2 ( control point )
Boost time Atmospheric pressure →+ 2kg/cm2 About 60min.
Controller Korea TEMI controller(4.3inch Touch screen programmable controller)
protection devices Adjustable over temperature protection ; Pressure overpressure protection ; Pressure gauge double protection ; Water shortage protection
Sample holder Two layers stainless steel plate
