Highly Accelerated Pressure Aging Test Machine PCT Test Chamber For IC Semiconductors

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-H-2273
Minimum Order Quantity: 1set
Price: Negotiated
Packaging Details: standard wooden cases
Delivery Time: 1-15 days,to be negotiated
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Sets per Month
Power Supply: 1 Ph 3 Lines ,50/60HZ ; Operating Temperature:: 121℃; 132℃; (143℃ Special Selection)
Temperature Range:: 100~135℃ Standard:: IEC60068-2-66 Ets
Protect:: Water Short Storage Steam Pressure:: 3.0Kg/cm2
Sample Shelf:: Two Layers Circulation Method:: Natural Convection Circulation Of Water Vapor
Operating Humidity:: 100%RH Saturated Steam Humidity Accessories:: Three-layer Stainless Steel Partition
High Light:

Accelerated Pressure Aging Test Machine

,

IC Semiconductors PCT Chamber

,

Environmental Test PCT Chamber

Highly Accelerated Pressure Aging Test Machine PCT Test Chamber For IC Semiconductors







Product Description
Scope of application PCT high-voltage accelerated aging test equipment is suitable for the sealing performance of defense, aerospace, automotive parts, electronic parts, plastics, magnet industries, pharmaceuticals, circuit boards, multilayer circuit boards, IC, LCD, magnets, lighting, lighting products and other products Testing, related products for accelerated life test, used in the product design stage, used to quickly expose product defects and weaknesses. Test the wear resistance and air tightness of its products
Meet the test standard Can meet IEC60068-2-66, JESDEC-A110, A118, IEC60068-2-66, JESDEC A110, A118
High Accelerated Stress Test Chamber Simulation Climate Features 1. The dual-circuit structure of imported high temperature solenoid valve is adopted, which reduces the use failure rate to the greatest extent. 2. Separate steam generation room to avoid direct impact of steam on the product, so as not to cause partial damage to the product. 3. The labor-saving structure of the door lock solves the shortcomings of difficult locking of the disc handle of the first generation product. 4. Exhaust cold air before the test; the design of cold air exhaust during the test (exhaust the air in the test barrel) improves pressure stability and reproducibility. 5. Ultra-long-lasting experimental operation time, 400 hours for the machine to run for a long time. 6. Water level protection, through the water level Sensor in the test room to detect and protect. 7. Tank pressure resistance design, the tank body pressure resistance (140t)) 2.65kg, in line with the water pressure test 6kg. 8. Two-stage pressure safety protection device adopts a two-stage combination controller and mechanical pressure protection device. 9. Two-stage automatic pressure-relief button for safety protection and emergency safety device.
Size Information
model
PCT-30
PCT-35
PCT-35
Internal dimensions (WxHxD) mm
300x500
340x500
400×500
Operating temperature
121°C; 132°C; (143°C special selection)
Use vapor pressure (absolute pressure)
1 ambient atmospheric pressure +0.0Kg/cm2-2.0Kg/cm2; (3.0Kg/cm2ffl in special specifications)
Circulation method
Natural convection circulation of water vapor
Safety protection device
Water shortage protection, overpressure protection, (with automatic/manual water replenishment function, automatic pressure relief function)
Accessories
Three layers of stainless steel clapboard
Operating humidity
100%RH saturated steam humidity
Power supply
AC220V, 50/60Hz/

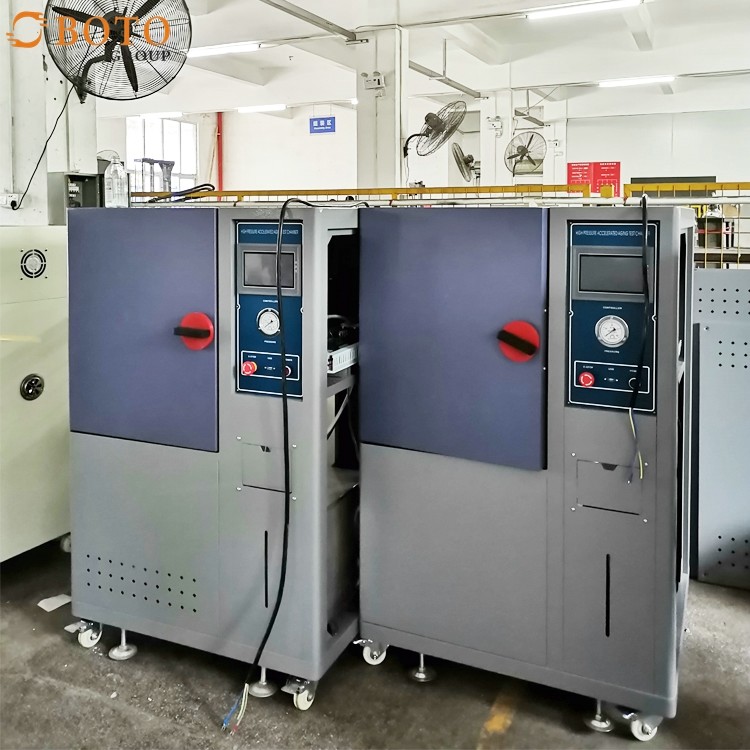

Highly Accelerated Pressure Aging Test Machine PCT Test Chamber For IC Semiconductors 0
Detailed Images

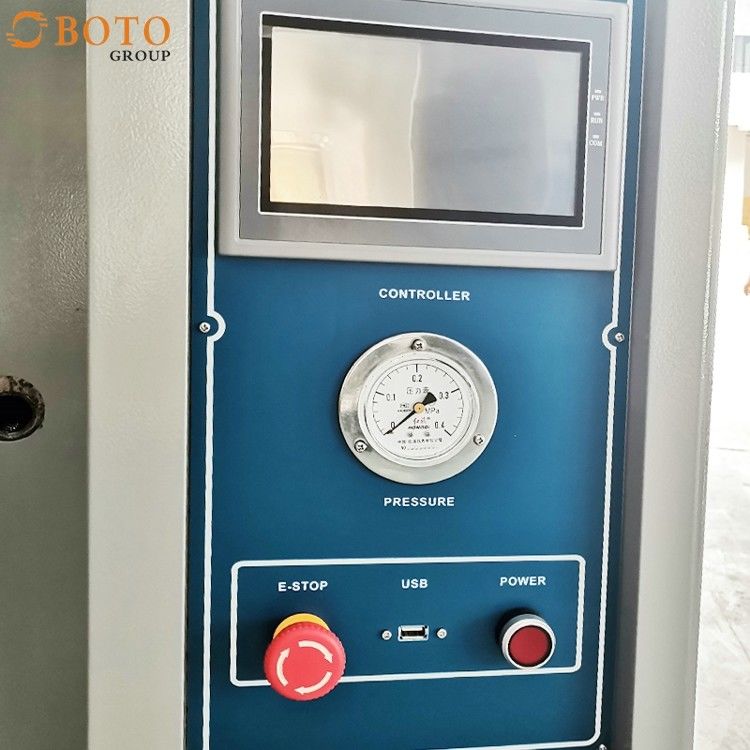

Highly Accelerated Pressure Aging Test Machine PCT Test Chamber For IC Semiconductors 1
Highly Accelerated Pressure Aging Test Machine PCT Test Chamber For IC Semiconductors 2
Highly Accelerated Pressure Aging Test Machine PCT Test Chamber For IC Semiconductors 3
Highly Accelerated Pressure Aging Test Machine PCT Test Chamber For IC Semiconductors 4
Highly Accelerated Pressure Aging Test Machine PCT Test Chamber For IC Semiconductors 5
Highly Accelerated Pressure Aging Test Machine PCT Test Chamber For IC Semiconductors 6
Highly Accelerated Pressure Aging Test Machine PCT Test Chamber For IC Semiconductors 7
Highly Accelerated Pressure Aging Test Machine PCT Test Chamber For IC Semiconductors 8
Highly Accelerated Pressure Aging Test Machine PCT Test Chamber For IC Semiconductors 9
Highly Accelerated Pressure Aging Test Machine PCT Test Chamber For IC Semiconductors 10
Highly Accelerated Pressure Aging Test Machine PCT Test Chamber For IC Semiconductors 11
Manufacture Specification
Highly Accelerated Pressure Aging Test Machine PCT Test Chamber For IC Semiconductors 12
Highly Accelerated Pressure Aging Test Machine PCT Test Chamber For IC Semiconductors 13
