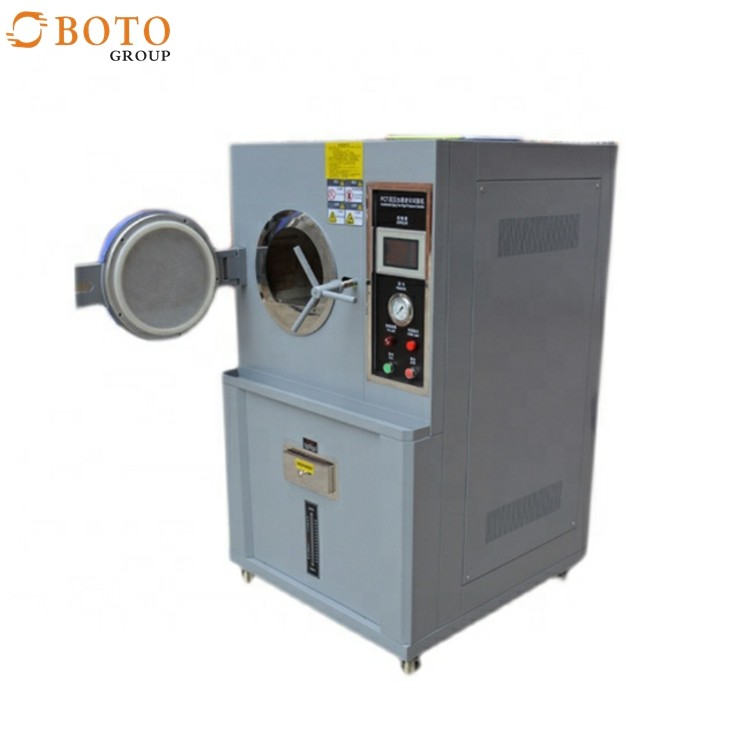

PCT / BOTO Humidity Highly Accelerated Stress Testing Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-PCT-35
Minimum Order Quantity: 1set
Price: Negotiated
Packaging Details: wooden case
Delivery Time: 1-15 days,to be negotiated
Payment Terms: L/C, T/T
Supply Ability: 99 Set/Sets per Month
Power Supply: Electronic, Electronic,220V Or 380V AC±10% 50/60Hz Internal Dimension: Dia. 350* D500mm
Steam Temperature Range:: 100℃~135℃ Test Hole:: D50mm
Adjustable Humidity Range: 70~100%R.H. Warranty:: 12 Months
Pressure:: 3Kg/cm3 Function:: High Temperature Steam Humidity Pressure Cooker
High Light:

Accelerated Stress Environmental Test Chambers

,

Dia 50mm Environmental Test Chambers

,

LCD Screen Environmental Test Chambers

PCT / BOTO High Temperature Steam Humidity Pressure Cooker





Product Description



This PCT climate control chamber is widely applied to the testing of sealing property for multi-layer circuit board, IC sealing package, LCD screen, LED, semi-conductor, magnetic materials, NdFeB, rare earths and magnet iron, in which the resistance to pressure and air tightness for above mentioned products can be tested out.

Characteristics:

Model
BT-PCT - 35
Internal size
350x500mm ΦxD
outside size
1000x850x1750mm
Steam Temperature
Range: 100℃~135℃, (143℃ is optional)
Steam Humidity
70~100%R.H. steam humidity adjustable
Recursive Device
Steam in forced-circulation
Safety Protective Device
Water short storage protect, over pressure protect.(have automatically/manual water replenishing, automatically discharge pressure function )
Accessories
Two layers stainless steel plate
Pressure range
101.3Kpa +0.0Kg/cm2~2.0Kg/cm2,0-3Kg/cm3
Power supply
AC220V, 1ph 3 Lines ,50/60HZ; AC380V ,3 ph 5 Lines,50/60HZ



PCT / BOTO Humidity Highly Accelerated Stress Testing Chamber 0

PCT / BOTO Humidity Highly Accelerated Stress Testing Chamber 1

PCT / BOTO Humidity Highly Accelerated Stress Testing Chamber 2
