Manual Concrete Compression Testing Machine Lab Testing Equipment

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-T-2000
Minimum Order Quantity: 1set
Price: Negotiated
Packaging Details: Standard Export Packing
Delivery Time: 1-15 days,to be negotiated
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month Manual Concrete Compression Testing Machine+Lab Testing Equipmen
Power:: Hydraulic Measuring Range: 0-2000kN
Relative Error: ±1% Platen Dimension: 220mm×290mm
Max. Vertical Clearance Between Platen: 330 Mm Maximum Travel Of Piston: 40 Mm
Diameter Of Piston: Ф250 Mm Rated Pressure Of Oil Pump: 40 Mpa
Power Supply: 220VAC 750W
High Light:

2000kN Concrete Compression Testing Machine

,

750W Concrete Compression Testing Machine

,

220VAC Lab Compression Testing Machine

BOTO Compression Testing Machine with Digital Display



Manual Concrete Compression Testing Machine+Lab Testing Equipment



The machine is used to test compressive strength of building materials such as brick, cement mortar and concrete. The machine applies loading on specimen driven by electro-hydraulic system, the applied loading is digital displayed real time, data is measured by electronic device then saved and processed automatically, the peak loading will be hold and displayed to avoid electric blackout.

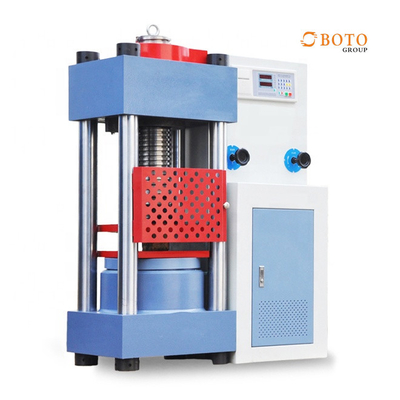

Manual Concrete Compression Testing Machine Lab Testing Equipment 0

PRODUCT SPECIFICATIONS
Model
BT-T-2000
Measuring Range
0-2000 kN
Relative Error
±1%
Platen dimension
220mm×290mm
Max. Vertical clearance between platen
330 mm
Maximum travel of piston
40 mm
Diameter of piston
Ф250 mm
Rated pressure of oil pump
40 Mpa
Power supply
220VAC 750W



Manual Concrete Compression Testing Machine Lab Testing Equipment 1
