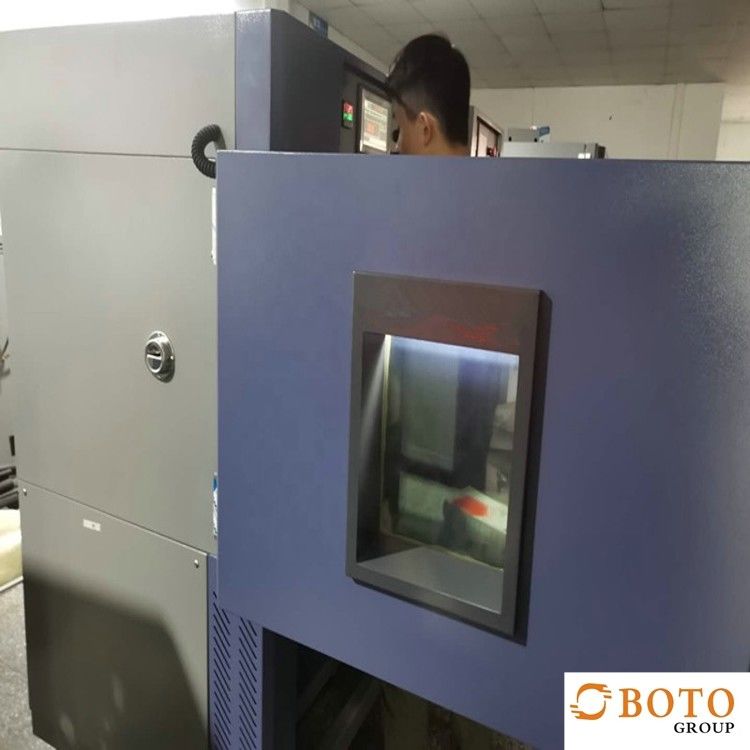

Constant Temperature and Humidity Test Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-YYE009
Minimum Order Quantity: 2 set
Price: Negotiated
Packaging Details: wooden case
Delivery Time: 1-25 days,to be negotiated
Payment Terms: T/T, L/C
Supply Ability: 100 Set/Sets per Month
Power:: Electronic Inner Size::: 500MM*600MM*500MM (W* H* D)
Outer Size::: 1130MM*1750MM*1220MM (W* H* D) Temperature Range::: -20℃~+150℃,adjustable
Temperature Fluctuation Degree::: ≤±1.0 ℃ Temperature Uniformity::: ≤±0.5 ℃
Temperature Resolution Accuracy::: ±0 .01℃ Humidity Degree::: 10% - 98% R.H
Humidity Fluctuations Degree::: ±2.0%R.H Selling Units:: Single Item
Single Package Size:: 40X25X54 Cm Single Gross Weight:: 65.000 Kg
Package Type:: Plywood Boxes

Constant Temperature and Humidity Test Chamber



Constant Temperature and Humidity Test Chamber 0

Product Description
Constant Temperature and Humidity Test Chamber 1
Constant Temperature and Humidity Test Chamber 2
Constant Temperature and Humidity Test Chamber 3
Product feature display
Constant Temperature and Humidity Test Chamber 4
Constant Temperature and Humidity Test Chamber 5
Constant Temperature and Humidity Test Chamber 6







Part of the application industry
Constant Temperature and Humidity Test Chamber 7
Product Paramenters
Constant Temperature and Humidity Test Chamber 8
Cabinet material
Studio
#304 mirror stainless steel (1.2mm)
Outer box
Electrostatic spraying of cold rolled steel plate (1.5mm)
Keep warm
Polyurethane + glass fiber (110mm below -50°C)
Control
German original temperature control instrument (optional with photo), Simple operation, convenient setting, control accuracy0.01℃,
Heater
Fin type stainless steel heating system
Evaporator
Heat exchanger
Note
Customizable
Constant Temperature and Humidity Test Chamber 9
Serial number
Volume
Inner size
D*W*H
Temperature range
Humidity range
Power 50hz/total rate (to be determined)
01
80L
400x400x 500
00~150°C
20~150°C
-40~150°C
- 50~150°C
-60~150°C
- 70~ 150°C
Selected according to test requirements


30~ 98%
220V/5 KW
02
100L
400x500x 500
220V/6KW
03
150L
500x500x 600
220V/6.5KW
04
225L
600x 500x750
220V/7KW
05
408L
800x 600x850
220V/7.5KW
06
800L
1000x800x1000
220V/7.5KW
07
1000L
1000x1000x1000
220V/8KW
Main indicators
a Temperature fluctuation: ≤±0.5°C, temperature uniformity: ≤+2°C
b Humidity error: ≤+2%/-3%R.H
c Cooling rate: 0.7~1°C/min, heating rate: 2~3°C/min
d Temperature change test chamber: cooling 3~5°C/min, heating 3~5/min
e Noise (dB)≤65 (all above are no-load)
