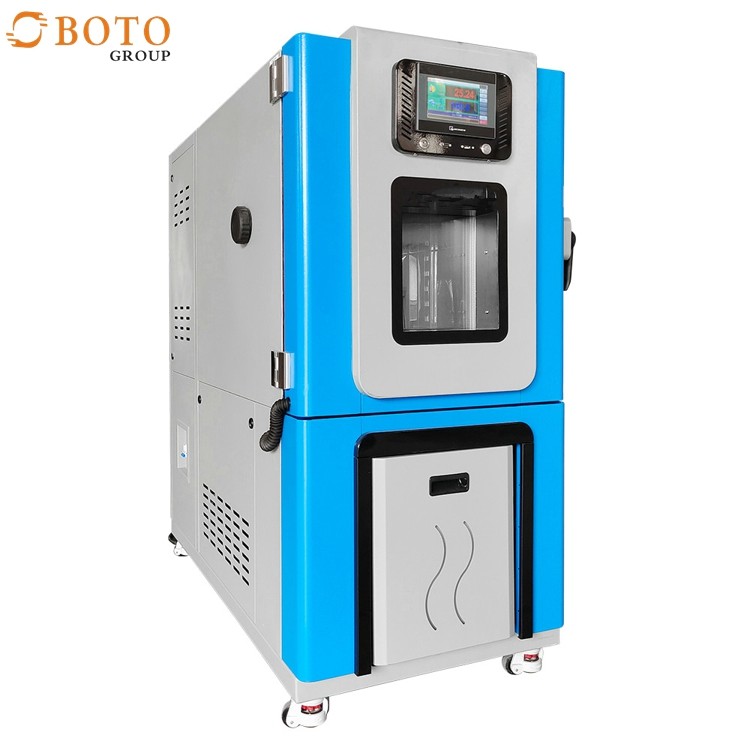

Stability Environmental Climatic Constant Temperature and Humidity Test Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-E702-100
Minimum Order Quantity: 1set
Price: Negotiated
Packaging Details: wooden case
Delivery Time: 50 Set/Sets per Month
Payment Terms: L/C, T/T
Power:: Electronic Internal Dimension (W*D*H):: 500*600*750mm
External Dimension (W*D*H):: 600*1280*1380mm Temperature Range:: -70~+150℃
Temperature Fluctuation:: ±0.5℃ Temperature Uniformity:: 2℃
Humidity Range:: 20~98%RH (Refer Image Below) Humidity Fluctuation:: ±2.5%RH
Cooling Method:: Air Cooling Temperature Sensor:: PT-100 Dry And Wet Bulb Sensor
Humidity Uniformity:: 3%RH

Stability Environmental Climatic Constant Temperature and Humidity Test Chamber



Product Description



Stability Environmental Climatic Constant Temperature and Humidity Test Chamber 0

Temperature and Humidity Test Chamber is used to test the performance of materials in various environments and test the heat resistance, cold resistance, dry resistance and humidity resistance of various materials. Suitable for testing the quality of products such as electronics, electrical appliances, mobile phones, communications, meters, vehicles, plastic products, metals, food, chemicals, building materials, medical care, aerospace, etc.





TEST CHAMBER STANDARD FEATURES

Model BT-E702-100-7
Internal dimension (W*D*H) 400*500*500mm
External dimension (W*D*H) 600*1280*1380mm
Temperature range -70~+150℃
Temperature fluctuation ±0.5℃
Temperature uniformity 2℃
Humidity range 20~98%RH (Refer Image below)
Humidity fluctuation ±2.5%RH
Humidity uniformity 3%RH
Cooling speed 1℃/min in average (without loading)
Heating speed 3℃/min in average (without loading)
Internal chamber material SUS#304 stainless steel, mirror finished
External chamber material Stainless steel
Cooling method Air cooling
Controller

LCD touch screen, programmable control temperature and humidity

Can set different parameter for cyclic test

Insulation material 50mm high density rigid Polyurethane foam
Heater Explosion-proof type SUS#304 stainless steel fins radiator pipe heater
Compressor France Tecumseh compressor x 2sets
Lighting Heat resistance
Temperature sensor PT-100 dry and wet bulb sensor
Observation window Tempered glass
Testing hole Diameter 50mm, for cable routing
Sample tray SUS#304 stainless steel, 2pcs
Safety protection device

Protection for leakage

Over-temperature

Compressor overvoltage and overload

Heater short circuit

Water shortage



TEST CHAMBER APPLICATIONS

1. To simulate test environment with different temperature and humidity

2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…

3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation

4. Uncover test unit weakness in a short-term test with accelerated time effect



Stability Environmental Climatic Constant Temperature and Humidity Test Chamber 1



TEST CHAMBER DESIGN FEATURES

1. High performance and quiet operation (68 dBA)

2. Space-saving designed for flush installation to wall

3. Full thermal break around doorframe

4. One 50mm diameter cable port o left, with flexible silicone plug

5. Accurate wet/dry-bulb humidity measurement system for easy maintain



Stability Environmental Climatic Constant Temperature and Humidity Test Chamber 2



TEST CHAMBER PROGRAMMABLE CONTROLLER

1. PLC controller for test chamber

2. Step types include: ramp, soak, jump, auto-start, and end

3. RS-232 interface to connect computer for output
