Home ProductsEnvironmental Test ChambersTemperature Humidity Test Chamber High Low Temperature Chamber

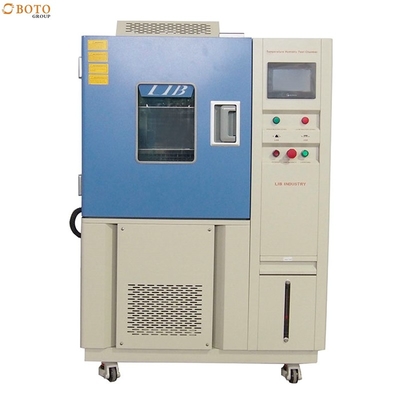

Temperature Humidity Test Chamber High Low Temperature Chamber

Temperature Humidity Test Chamber High Low Temperature Chamber
Temperature Humidity Test Chamber High Low Temperature Chamber Temperature Humidity Test Chamber High Low Temperature Chamber Temperature Humidity Test Chamber High Low Temperature Chamber Temperature Humidity Test Chamber High Low Temperature Chamber
Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BL-TH-100
Minimum Order Quantity: 1set
Price: Negotiated
Packaging Details: wooden case
Delivery Time: 1-25 days,to be negotiated
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Sets per Month
Contact Now
Internal Dimension (mm): 400*500*500 Overall Dimension (mm): 860*1050*1620
Interior Volume: 100L Heat Load: 1000w
Temperature Range: A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ Temperature Fluctuation: ± 0.5 ℃
Temperature Deviation: ± 2.0 ℃ Humidity Range: 20% ~ 98% RH
Humidity Deviation: ± 2.5% RH Cooling Rate: 1 ℃ / Min
Heating Rate: 3 ℃ / Min Refrigerant: R404A, R23
Heating Element: Nichrome Heater Controller: Programmable Color LCD Touch Screen Controller
Humidifier: External Isolation, Stainless Steel Surface Evaporation Humidifier Temperature Sensor: PTR Platinum Resistance PT100Ω/MV A-class, Accuracy 0.001℃
Dehumidification: Evaporator Humidity Sensor: Dry And Wet Bulb Sensor
Exterior Material: Steel Plate With Protective Coating Interior Material: SUS304 Stainless Steel
Standard Configuration: 1 Cable Hole (Φ 50,) With Plug; 2 Shelves Maximum Noise: 65 DBA
High Light:

Temperature Humidity Test Chamber 100L

,

65 dBA Temperature Humidity Test Chamber

,

IEC 61370 Temperature Humidity Environmental Chamber

Temperature Humidity Test Chamber High Low Temperature Chamber





Description
Temperature Humidity Test Chamber to perform temperature & humidity test, cold resistance test, thermal cycle test, ultra low temperature test, high temperature test, storage condition, and calibration function.Suitable for small test pieces and large pieces.
Standard:JIS C8990,IEC61730-2,IEC61215/IEC61646/ IEC61701/ IEC 61370...

Temperature Humidity Test Chamber High Low Temperature Chamber 0

Technical Parameters


Name
Temperature Humidity Test Chamber High Low Temperature Chamber Climate Chamber
Model
BL-TH-100
BL-TH-225
Internal Dimension (mm)
400*500*500
500*600*750
Overall Dimension (mm)
860*1050*1620
960*1150*1860
Interior Volume
100L
225L
Heat load
1000w
Temperature Range
A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation
± 0.5 ℃
Temperature Deviation
± 2.0 ℃
Humidity Range
20% ~ 98% RH
Humidity Deviation
± 2.5% RH
Cooling Rate
1 ℃ / min
Heating Rate
3 ℃ / min
Refrigerant
R404A, R23
Heating Element
Nichrome heater
Controller
Programmable color LCD touch screen controller

Ethernet connection, PC Link
Humidifier
External isolation, stainless steel surface evaporation humidifier
Dehumidification
Evaporator
Temperature Sensor
PTR Platinum Resistance PT100Ω/MV A-class, accuracy 0.001℃
Humidity Sensor
Dry and wet bulb sensor
Exterior Material
Steel Plate with protective coating
Interior Material
SUS304 stainless steel
Standard Configuration
1 Cable hole (Φ 50,) with plug; 2 shelves
Power Supply
220V 50Hz / 380V 50Hz
Maximum Noise
65 dBA
Environmental Conditional
5℃～+35 ℃ ≤85% RH



Detail Design

Temperature Humidity Test Chamber High Low Temperature Chamber 1

Test Area

1.SUS304 stainless steel 2.Internal Dimension:50L and 80L 3.Rust-proof to high and low temperature and moisture corrosion; 4.Adjustable sample shelves, facilitate the various sizes of test samples.
Temperature Humidity Test Chamber High Low Temperature Chamber 2

Cable Hole

1.Inner hole diameter is 50mm. 2.Convenient for the cable to pass through,and provide power for the test piece 3.Reliably Sealing 4.Customizable test hole size
Temperature Humidity Test Chamber High Low Temperature Chamber 3

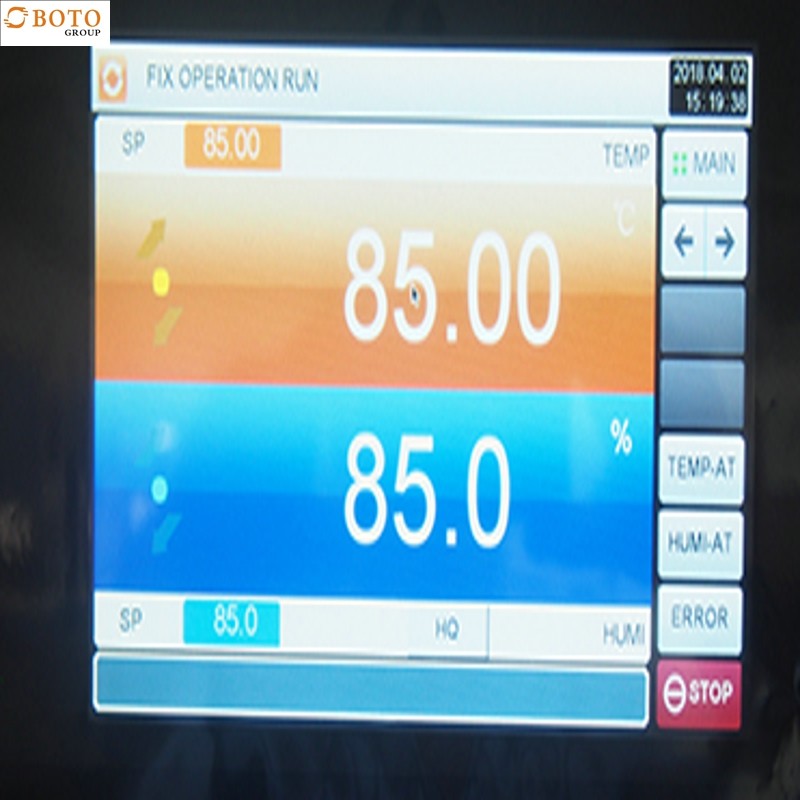

Controller

1.PID programmable color touch screen controller 2.Can be network connection computer 3.Can edit 100 programs 100 segments 4.Multiple languages are available




Option

Temperature Humidity Test Chamber High Low Temperature Chamber 4

Controller

■WiFi connection ■Mobile APP control ■Multi-language controller interface:Russian, French, Polish, Romanian, German
Temperature Humidity Test Chamber High Low Temperature Chamber 5

Observation Window

■Size can be customized ■Inner glass door ■Hand-in ports
Temperature Humidity Test Chamber High Low Temperature Chamber 6

Demineralized Water Device

■Remove impurities from water
■Automatic type

Temperature Humidity Test Chamber High Low Temperature Chamber 7

Temperature Humidity Test Chamber High Low Temperature Chamber 8

Temperature Humidity Test Chamber High Low Temperature Chamber 9



Advantage
1.Multiple model:TH-100,TH-225,TH-500,TH-800,TH-1000 2.Testing small and large test pieces,Can be powered 2.Low types: -20℃/-40℃/-60℃/-70℃/-86℃ 3.Free calibration 4. *72 hours commissioning before delivery to ensure product performance


Temperature Humidity Test Chamber High Low Temperature Chamber 10
Applications
Temperature Humidity Test Chamber widely used: ◆electronics ◆automotive ◆manufacturing ◆research ◆laboratories ◆LED light ◆lithium battery ◆solar ◆cell ◆electronic ◆pcb ◆drug◆rubber ◆cosmetics
◆metalware ◆ceramics ◆cable ◆glass◆concrete ◆coating ◆plastic ◆so on

Castom-made
Temperature Humidity Test Chamber High Low Temperature Chamber 11

Walk in Test Chamber

Walk in temperature and humidity test chamber, customers used to test large packing boxes, and customized special turntable
Temperature Humidity Test Chamber High Low Temperature Chamber 12

UV Test Chamber (Glass Test)

Special custom UV test chamber, mainly used to test glass, equipment design on both sides of the test area and special sample rack
Temperature Humidity Test Chamber High Low Temperature Chamber 13

No Housing IPX1X2 Rain Equipment

No housing rain test chamber can test the water resistance of the larger shell, we support custom IPX1 to IPX9K laboratory


Shipping

1.Packed with export standard wooden case.​
2.Strong packages can be used for sea, air, railway, truck transport and multimodal
transport.
3.Transport equipment to ports or laboratories according to your needs.
