Double Column Tabletop 10kn To 20kn 30kn Universal Tensile Testing Equipment Machine For Steel

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-600A
Minimum Order Quantity: 1set
Price: Negotiated
Packaging Details: wooden case
Delivery Time: 1-15 days,to be negotiated
Payment Terms: T/T
Supply Ability: 226 Unit/Units per Month
Max Capacity: 5kg,10kg,25kg,50kg,100kg,250kg,500kg,1000kg,2000kg,5000kg,etc.(It Is Optional.) Can Be Setting Test Width:: 400mm(Standard Specifications Special Specifications Can Be Customized)
Induction Method :: Precision Load Cell (sensor) Max. Load Capacity :: 5000kg
Force Resolution/Accuracy:: ± 0.5% Accuracy Class :: 0.5
Resolution:: 1/1,000,000 Test Stroke :: Max.700 Mm( Included The Fixture)
Stroke Resolution:: 0.01mm Speed Range:: 0.001-20inches/min
Power :: 1 Phase 220V 50/60Hz Force System: Servo Drives + Servo Motor + Precision Ball Screw Drive
High Light:

20kn Tensile Testing Equipment

,

Double Column Tensile Testing Machine

,

1 phase 220V Universal Tensile Testing Equipment

Double column tabletop 10kn to 20kn 30kn universal tensile testing equipment machine for steel



The testing machine is widely used in all kinds of hardware, metal, sealants ,rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, terminals and other types of materials, testing, tensile, tear, peel,compression, bending, shear, three-point bending ... and other physical test performance.

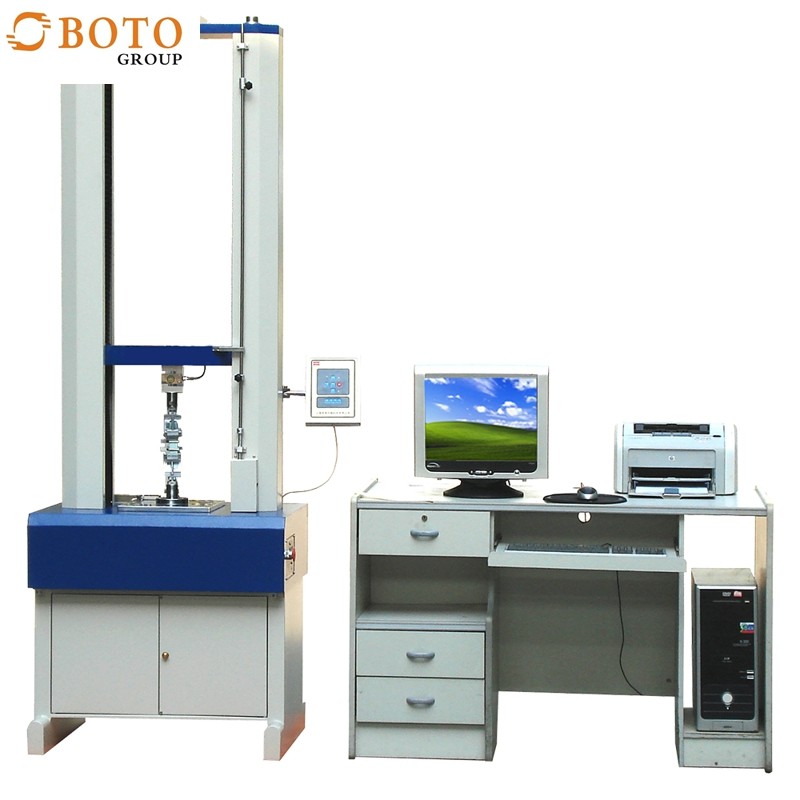

Double Column Tabletop 10kn To 20kn 30kn Universal Tensile Testing Equipment Machine For Steel 0



Product parameters





Support Customized
Yes
Max capacity
5kg,10kg,25kg,50kg,100kg,250kg,500kg,1000kg,2000kg,5000kg,etc.(It is optional.) can be setting
Induction method :
Precision load cell (sensor)
Max. Load Capacity :
5000kg
Force Resolution/Accuracy:
± 0.5%
Accuracy class :
0.5
Resolution:
1/1,000,000
Test width:
400mm(Standard specifications special specifications can be customized)
Test stroke :
Max.700 mm( included the fixture)
Stroke Resolution:
0.01mm
Speed range:
0.001-20inches/min
Reference Machine Dimension:
800×530×1600mm (L*W*H) Support Customized
Power :
1 phase 220V 50/60Hz
Packing
Standard Export plywood case
Force system
servo drives + Servo motor + precision ball screw drive
Control system
Mechanical transmission + TM2101 + Pulse Command and Control System control
Measurement and Control System
TM2101 and control system; master controller uses the most advanced 32-bit ARM processor in the 21st century, the processing speed
of the Pentium-class common computer standards, compared to the traditional 8 yuan SCM control system overall performance greatly
improved, faster operation, control accuracy higher


Obtain data
The key components are used America's most stable and ultra-precision 24 yuan AD,
sampling rate of up to 2000 times / sec, can capture the power of instantaneous change process, the entire file, regardless of the
resolution of up to 1,000,000 indexing
Displacement Control:
Displacement encoder count with four frequency technology
So that the displacement of four times
the resolution can up to 0.0005mm
Safety devices:
1. overload, emergency stop device
2. the upper and lower travel limit devices
3. the test is completed automatic shutdown device


Reference standard
ASTM D903, ASTM E8 CNS11888, JIS K6854, PSTC7 ASTM D903,GB/T16491CNS-11888,JIS K6854, PSTC-7 ,ASTM E4,ASTM D828,ASTM D882,ASTM,D1938,ASTM D 412 ,ISO 8339ASTM D3330,ASTM F88,ASTM F904,ISO 37,JIS P8113,QB/T 2358,QB/T 1130 , ISO 527 ,ISO 178 and other
standards.

Double Column Tabletop 10kn To 20kn 30kn Universal Tensile Testing Equipment Machine For Steel 1 With different test fixtures, it can meet the mechanical performance test of different products and materials in different industries



Double Column Tabletop 10kn To 20kn 30kn Universal Tensile Testing Equipment Machine For Steel 2

Following are Fixture samples, we can offer proper fixtures depends on your products(Support Customized)



Double Column Tabletop 10kn To 20kn 30kn Universal Tensile Testing Equipment Machine For Steel 3

Test function:

1. The use of mulch-threaded parallel processing technology, the testing process is displayed at the same time force - displacement, force - time, displacement - time, stress - strain curve, you can easily switch to the curve of the screen to see, and can view the user settings, etc. 2. The flexible and powerful way to customize the test method, with constant speed, position shift, given the strength, will power rates, given stress, stress rate constant, constant strain, strain rate and other fixed control mode, enabling complex multi-step nested loop control. It can be set to automatic return, automatic judgment fracture, auto-zero function 3. Standardized test process control and report output templates so that you can define as many test standard for users to call, covering GB, ASTM, DIN, JIS, BS ... almost all test criteria 4. Combining different fixtures and accessories, do all kinds of products and materials most strongly, breaking strength, peel strength, tensile strength, shear strength, tear strength, maximum deformation, yield strength, elongation, modulus of elasticity, ring stiffness, non-proportional elongation, interval minimum force, interval average power, power take constant elongation, elongation given power to take as many as more than 400 pilot projects

Advantage

Ø 24 hours online
Ø 35 years experiences
Ø Sample chamber of each model
Ø Best price, fast delivery
Ø OEM,ODM
Ø Oversea offices
Ø Own import and export business license
ØISO,CE,UL,ASTM,DIN,EN,GB,BS,JIS,ANSI,TAPPI,AATCC,IEC,VDE

Customer Support Services

Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
