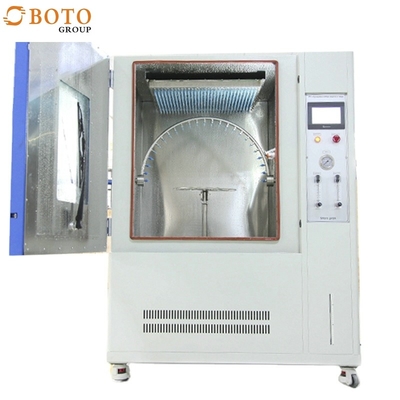

IPX1 IPX4 Rain Tester Drop Rain Testing Machine Dust Rain Proof Environmental Test Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-IPX14B
Minimum Order Quantity: 1set
Price: Negotiated
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: T/T
Supply Ability: 100 Piece/Pieces per Month
Reference Standard:: IEC60529-2001 Application:: IPx1 IPX4 Waterproof Testing
Power Supply:: 220V Certification:: ISO, CE, EN, FMV, IEC, JIS, BS
Function:: Simulate Rain Testing
High Light:

IPX4 Rain Spray Test Chamber

,

IEC60529-2001 Rain Spray Test Chamber

,

IPX4 Waterproof Rain Test Chamber

IPX1 IPX4 Rain Tester Drop Rain Testing Machine Dust Rain Proof Environmental Test Chamber



Get wet in the rain in the rain test chamber is a kind of artificial simulation of the chamber, it is well known to all components and equipment in the atmosphere environment, both working state and storage condition, will be different degree influenced by all kinds of water (impurities), which are comparatively common in the rain, get wet in the rain test is to prevent the equipment after the rain infiltration and in the rain or the performance is a degree of change.This test chamber performance indicators meet the GB/T10485 "car, car and trailer and trailer external device external lighting and signal device basic environmental testing, basic environmental testing of industrial electronic products and the standard of JIS, MIL, and so on related test. 20653-2006,GB-4208-93, gb2423.37 - 89la, GB4208-93, DIN40050.5KAnd the corresponding national standards in the rain test.





Products Description
Model
BT-IPX14B-R200
BT-IPX14B-R400
Inner dimension
500L*500D*650H mm
900L*900D*1050H mm
Outer dimension
1000*680D*1400H mm
1350L*1150D*1750H mm
Turntable diameter
¢200mm
¢400mm(R200mm is optional)
Turntable Max. load
50KG
50KG
Turntable lifting height
150-250 mm
450-750 mm
Turntable tiltable angle
0° or 15°(horizontal direction)
0° or 15°(horizontal direction)
Turntable speed
1 -5r/min(precise control )
1 -5r/min(precise control )
Turntable rotate
Foreward / Turn back and forth /
intermittent rotation
Foreward / Turn back and forth /
intermittent rotation
Testing time
0-999 min
0-999 min
Total weight
Appro. 230kg
Appro. 230kg
IPX12 technology parameter
Drip plate area
200*200mm
600*600mm
IPX12 Spray aperture
diameter (mm)
¢0.4mm
¢0.4mm
Space of Dripping
aperture
20*20 mm
20*20 mm
Rainfall precipitation
IPX1=1mm/min IPX2=3mm/min
IPX1=1mm/min IPX2=3mm/min
Flow adjust
Manual setting
Manual setting
Drip plate lifting
Fixed
Fixed
IPX34 technology parameter
Swing pipe radius
R200mm
R400mm(R200mm is optional
Swing pipe Flow
IPX3=0.56L/min;IPX4=0.84L/min
IPX3=1.1L/min;IPX4=1.8L/min
Spray aperture size(mm)
0.4mm
0.4mm
Space of Spray aperture
50mm
50mm
Swing pipe inner diameter(mm)
15mm
15mm
Swing pipe angle
120º(IPX3),350º(IPX4)(precise control or customize)
240°Turn back and forth 4S,720°Turn back and forth
12S(precise control or custom
Swing pipe speed
240º(4s) 720º(12s), or customize
R400mm(R200mm is optional
Electric parameter
Power Supply
220V
Power Supply of samples
220V
Power
1.0KW
Protective device
Leakage, water shortage, short circuit
Standards
IEC60529:1989 +A1:1999 +A2:2013




IPX1 IPX4 Rain Tester Drop Rain Testing Machine Dust Rain Proof Environmental Test Chamber 0IPX1 IPX4 Rain Tester Drop Rain Testing Machine Dust Rain Proof Environmental Test Chamber 1IPX1 IPX4 Rain Tester Drop Rain Testing Machine Dust Rain Proof Environmental Test Chamber 2
