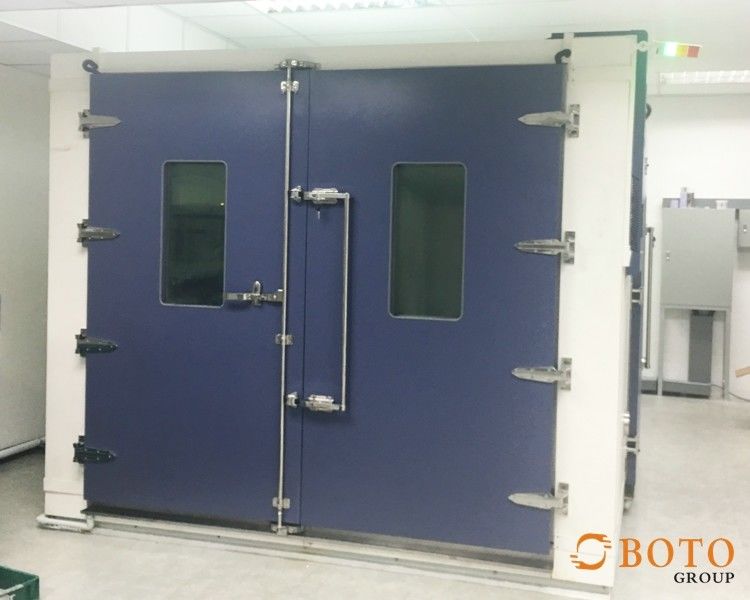

Environmental Humedad Constante Del Termostato Temperature Humidity Test Chamber Walk In Climate Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-W-001
Minimum Order Quantity: 1set
Price: Negotiated
Packaging Details: wooden case
Delivery Time: 1-25 days,to be negotiated
Payment Terms: T/T
Supply Ability: 30 Set/Sets per Month
Material:: #SUS 304 Stainless Steel Refrigerater:: French Tecumseh
Controller:: Touch Screen Programmable Controller Temperature Range:: -70~150 ℃
Fluctuation:: ±0.5C ±2.5%RH Controller Accuracy:: ±0.3C ±2.5%RH
Cooling Time:: 5.0 °C /minute Cooling System:: Water-cooled / Two-stage Compressor
High Light:

Programmable Walk In Climate Chamber

,

IEC60068-2-38 Walk In Climate Chamber

Environmental Humedad Constante Del Termostato Temperature Humidity Test Chamber Walk In Climate Chamber



Product description



Walk-In Chamber serves as a test site for large components, assemblies, and finished products in electrical and electronics, aerospace, batteries and automobiles, etc. BOTO manufactures both Static Walk-In Chambers and Dynamic Walk-In Chambers and can be configured as a temperature chamber or a temperature humidity chamber.
Walk-in temperature and climate test chambers are especially developed for large test specimens. Size and design are optimal loading of test specimens. The modular construction and variability in size and equipment is ideally forspecific application.



Standard Met and Implemented:

IEC60068-2-1 low temperature test method
IEC60068-2-38 temperature cycle
IEC60068-2-78 constant humidity temperature



Specifications



Volume 10m3 , 15m3 , 20m3, 30m3, 50m3, 100m3 , as per customer Requirements
Temperature Range -70~150C
Humidity Range 20%~98%RH
Accuracy/Uniformity ±0.1 °C , ±0.1%R.H. / ±1.5 °C ,±5.0%R.H.
Accuracy/Volatility ±1.0 °C , ±2.0%R.H./±0.5 °C , ±3.0%R.H.
Cooling Time 5.0 °C /minute
Inside Material SUS#304 Stainless Steel
Insulation Material High-temperature high-density amino acid ethyl ester foam insulation materials
Cooling System Water-cooled / two-stage compressor
Protection No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system
Accessories Recorder(option), view window, 50mm diameter testing hole, PL lamp, clapboard, Dry and wet gauze ball
Controller Touch screen programmable controller
Compressor France's Tecumseh Brand or Germany Bitzer
Power 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz
Product Effects



Liyi Environmental Humedad constante del termostato Temperature Humidity Test Chamber Walk In Climate ChamberLiyi Environmental Humedad constante del termostato Temperature Humidity Test Chamber Walk In Climate ChamberLiyi Environmental Humedad constante del termostato Temperature Humidity Test Chamber Walk In Climate ChamberLiyi Environmental Humedad constante del termostato Temperature Humidity Test Chamber Walk In Climate ChamberLiyi Environmental Humedad constante del termostato Temperature Humidity Test Chamber Walk In Climate Chamber



Company introduction





BOTO GROUP Ltd. is a private enterprise integrating r&d, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.



In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.



The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.



Some foreign customers have equipment leasing business, we only provide new equipment sales, no leasing business.



Factory image

Environmental Humedad Constante Del Termostato Temperature Humidity Test Chamber Walk In Climate Chamber 5



Environmental Humedad Constante Del Termostato Temperature Humidity Test Chamber Walk In Climate Chamber 6

Environmental Humedad Constante Del Termostato Temperature Humidity Test Chamber Walk In Climate Chamber 7



Environmental Humedad Constante Del Termostato Temperature Humidity Test Chamber Walk In Climate Chamber 8



Welcome to our booth in Electronica China, on 6-8, May,2022 in Shanghai New International Exhibition Center. Booth number: 4164.
